P6mm Smd Outdoor Waterproof Advertising Panels Full Color Adjusted Brightness
Product Details
| Pixel Configuration: | SMD2727 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 100,000 Hrs | Module Demensions (W*H)(mm): | 320*160 |
| Panel Dimensions (mm): | 960 × 960 × 150 | Operating Temp / Humidity: | -20ºC-50ºC/10%-90% |
| Panel Material: | Steel/ Aluminum | Driver IC: | MBI 5124/ MBI 5123 |
| Highlight |
roadside led display,street led screen |
||
Product Description
P6mm SMD Led Full Color Adjusted Brightness Automatically Outdoor Waterproof Advertising Panels
Outdoor fixed led display series
Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features; uniform image picture with high refresh frequency and gray level to realize the vivid effect.
Digital Billboard Features
1. High resolution 22,376pixels/sqm, HD nice video advertising effect.
2. High quality SMD LED encapsulation confirm the high brightness even under strong sunlight
3. Good protection level waterproof IP65, anti-corrosion, oxidation resistance,long life span
4. Long viewing distance, High definition, Good uniformity
5. Brightness can be adjusted automatically according to different surroundings
6. Can be set to open and close the screen automatically
Digital Billboard Specifications, the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf
| BOF-6.67 | |
| Physical Pitch | 6.67 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 22,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 960*960*150 |
| NO. of Modules Per Panel (W*H) | 3*6 |
| Physical Resolution of Module (W*H) | 48*24 |
| Physical Resolution of Panel (W*H) | 144*144 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Digital Billboard Procesure Details
High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. It would not occur the extrusion and deformation phenomenon between the modules when the display is working under the high and low temperatures.
100% waterproof module design,protection level IP65,PCS connections replace the
traditional electronic line which is safe and reliable.
IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓

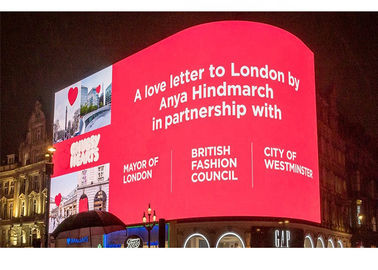

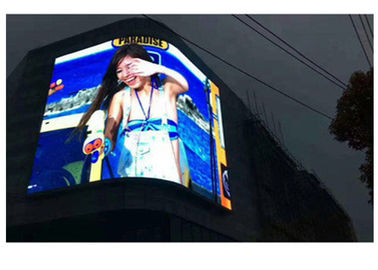

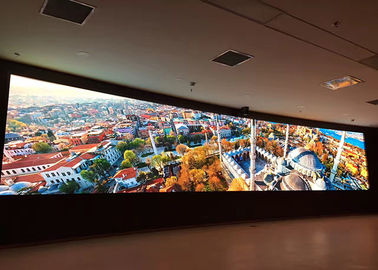

Digital Billboard Images
Good heat dissipation and long Lifespan
Brightness can be adjusted automatically according to different surrondings,can be set to open and close the screen on fixed auctomatically, it can save half of electricity and improve the life of display.
Intelligent Software System
Intellighent control and player system by cloud technology.
Time management and real time minitoring
3. Digital Billboard Multiple installation methods
Digital Billboard Applications:
Ideal for dazzling different events, such as Stage, Concert, Fashion Show, Wedding, Conference, Building, Hotel, Club & Bars, Festival, etc.
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. What is drive method, driving IC and power supply?
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
