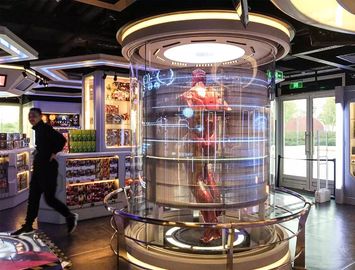

Aluminum Transparent LED Screens Glass Shopping Mall Advertising Video Display
Product Details
| Physical Pitch: | P3.9-7.8mm | Module Size: | 500*125mm |
|---|---|---|---|
| No. Of Modules Per Panel (W*H): | 2*4 | Panel Material: | Aluminum |
| Weight(sqm): | 14kg | Gray Scale: | 16 Bit |
| Colours: | 281 Trillion | Contrast Ratio: | 2,000:1 |
| Avg Power Consumption: | 180W/sqm | Max Power Consumption: | 560W/sqm |
| Brightness: | 1000~4200nits | Refresh Rate: | 1920Hz |
| Vertical Viewing Angle: | 160° | Horizontal Viewing Angle: | 140° |
| Expect Lifetime: | 100,000Hrs | Servicing: | Rear |
| IP Rating: | IP30 | Operating Temp/Humidity: | -10℃-60℃/10%-60% |
| Storage Temp/Humidity: | -30℃-60℃/10%-60% | ||
| Highlight |
clear led screen,transparent glass led display |
||
Product Description
Transparent LED Screens Glass Shopping Mall Advertising Video Display Commercial Advertising
12-BG.pdf
Transparet LED Display Specification
Slim, Light Weight and Quite
35mm~45mm thickness
14kg per square meter
Available to attach onto glass wall directly
Customizable and Versatile
Unlimited orientation, highly customizable
Suitable for any size and shape
Convex, concave, wave, cylindrical fit indoor architectural structures
High Transparency and Concise
60~80% transparency rate among different pitches
Variable brightness options for day and night environment
Hidden cable design looks clean and concise
Transparent LED Display Parameter:
| BG-3.9-7.8 | |
| Physical Pitch | 3.9*7.8 mm |
| Pixel Configuration | SMD 1921 |
| Pixel Density | 33,250 pixels/m² |
| Moudule Dimensions(W*H)(mm) | 500*125 |
| Panel Dimensions (mm) | 1000*500 |
| Physical Resolution of Module (W*H) | 128*16 |
| Physical Resolution of Panel (W*H) | 256*64 |
| Panel Material | Aluminum |
| Weight | 14 kg/m² |
| Average Power Cousumption | 203 W/m² |
| Max Power Consumption | 670 W/m² |
| Refresh Rate | >1,920 Hz |
| Brightness | >5,500 nits |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Servicing | Rear |
Product Highlights
Transparent LED Screens Glass Shopping Mall Advertising Video Display Commercial Advertising 12-BG.pdf Transparet LED Display Specification Slim, Light Weight and Quite 35mm~45mm thickness 14kg per square meter Available to attach onto glass wall directly Customizable and Versatile Unlimited ...
