Product Details:
Payment & Shipping Terms:
|
| Weight: | 8.2 Kg/m² | Refresh Rate: | 1,920 Hz |
|---|---|---|---|
| Module Material: | Rubber | Thickness: | 5mm |
| Panel Dimension: | Customized | Contrast Ratio: | 4000:1 |
| High Light: | flexible led curtain display,foldable led screen |
||
Soft Rubber Modules Electricity Flexible LED Display Colorful Screen With Easy Maintenance17-BS-Tia.pdf
Flexible LED Display Colorful Screen Features:
1.Durable soft rubber module, anti-static electricity
2.Easy maintenance
3.5mm thichness, space efficiency
4.0.18kg per module, shipping cost and installation cost saving.
5.Fanless
Flexible LED Display Colorful Screen Parameters:
| BS-2 | BS-2X | BS-3 | BS-4 | BS-6 | |
| Physical Pitch | 2 mm | 2.5 mm | 3 mm | 4 mm | 6.66 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 250,000 pixels/m² | 160,000 pixels/m² | 111,111 pixels/m² | 62,500 pixels/m² | 22,545 pixels/m² |
| Module Dimensions (W× H)(mm) | 240 × 120 | 240 × 120 | 240 × 120 | 240 × 120 | 240 × 120 |
| Panel Dimensions (mm) | customized | customized | customized | customized | customized |
| Physical Resolution of Module (W× H) | 120 x 60 | 96 × 48 | 80 × 40 | 60 × 30 | 48 × 24 |
| Weight | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² | 8.2 kg/m² |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 9 w | 9 w | 10 w | 10 w | 10 w |
| Max Power Consumption | 12 w | 12 w | 13 w | 13 w | 13 w |
| Brightness | >1,000nits | >1,000nits | >1,000nits | >1,000nits | >1,000nits |
| Refresh Rate | 1,920 Hz | 1,920 Hz | 1,920 Hz | 1,920 Hz | 1,920 Hz |
| Driving Method | 1/40 | 1/40 | 1/40 | 8/1 | 8/1 |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front | Front | Front |
| IP Rating (Front/Rear) | IP 54 | IP 54 | IP 54 | IP 54 | IP 54 |
| Installation | Hang | Hang | Hang | Hang | Hang |
| Certification | CE, FCC, RoHS | CE, FCC, RoHS | CE, FCC, RoHS | CE, FCC, RoHS | CE, FCC, RoHS |
| Operating Temp/Humidity | -20ºC- 60ºC / 10% - 90% | -20ºC- 60ºC / 10% - 90% | -20ºC- 60ºC / 10% - 90% | -20ºC- 60ºC / 10% - 90% | -20ºC- 60ºC / 10% - 90% |
| Storage Temp/Humidity | -40ºC-80ºC / 10% - 90% | -40ºC-80ºC / 10% - 90% | -40ºC-80ºC / 10% - 90% | -40ºC-80ºC / 10% - 90% | -40ºC-80ºC / 10% - 90% |

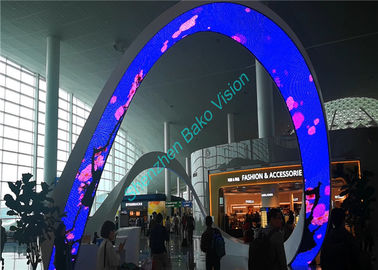

Flexible LED Display Colorful Screen Cases:
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
