Large LED Video Screens Outdoor Fixed LED Display P6.67 P10 for Advertising
Product Details
| Product Name: | Large LED Video Screens | Pixel Pitch: | P4.81, P5.95, P6.67, P8, P10 |
|---|---|---|---|
| Cabinet Size: | Customized | Pannel Material: | Steel/Aluminum |
| Servicing: | Front Service | IP Rating(Front/Rear): | IP65/IP54 |
| Brightness: | ＞5500nits | Refresh Rate: | ＞1920Hz |
| Highlight |
roadside led display,street led screen |
||
Product Description
Large LED Video Screens Outdoor Fixed LED Display P6.67 P10 for Advertising
BOF-F Series (BOF-F.pdf)
Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 4.81 / 5.95 / 6.67 / 8 / 10 |
| Brightness(nits): | Up to 7500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Front service, wall mount installation, no need to make the maintenance space at the back |
Large LED Video Screens Features
- Front Service.
- Energy-Saving Technology.
- Multifunctional Module Buckle.
- Steel/ Aluminum Cabinet.
- Fast Lock System.
- Waterproof with IP65 for large led video screens.
Advertising LED Screen Parameters
| BOF-F-4 | BOF-F-5 | BOF-F-6 | BOF-F-8 | BOF-F-10 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 250×250mm | 320x320mm | 320x160mm | ||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 52x52 | 42x42 | 48×48 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 90 W/m2 | ||||
| Max. Power Consumption | 230 W/m2 | ||||
| Refresh Rate | ＞1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Front | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
How much is a Large LED Video Screens?
1. Large led video screens price itself - The larger the area, the higher the price will be, which means you could make any size you want according to your budget.
2. Transportation costs - At present, the mode of transportation of large led video screens is the central divide between air and sea shipping. So when considering the mode of transportation, you need to know whether you need to save time or money.
3. Local import tax costs - The cost of import tax varies according to local conditions. We suggest that you make a call to your local customs department by the product's name ' large led video screens ' or ' LED display ', and the HS code is 8528591090.
4. Installation costs
5. Location costs - Different installation location costs are different, an excellent location will bring a better advertising effect.
6. Maintenance costs - the cost of replacing or repairing modules, the cost of replacing power supply/receiving cards and cables, and the maintenance cost of various minor faults.
7. Electricity costs - power = work / time, P = W / T = UI. P stands for power, P for watt, W for work, W for joule, T for time, and T for seconds. KW is W multiplied by 1000.KW/h for power consumption.
About Bako Vision
- Over 10 Years of Experience in Large LED Video Screens Manufacturing in China.
- Chinese Listed Company.
- 3 Years of High-Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
Q1. What is pixel pitch?
A1: The center distance between two adjacent pixels, the smaller the spacing, the shorter the visible distance. The industry is often referred to as P to indicate the point spacing.
Q2. What is pixel density?
A2: Also known as dot matrix density, it usually refers to the number of pixels per square meter of the display.

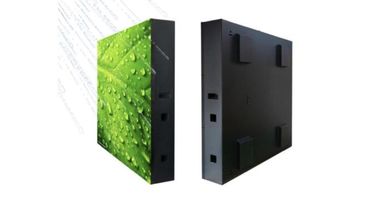

Q3. What is LED Cabinet?
A3: A small unit consisting of several display pixels that are structurally independent and can form an LED display. Typical are 8*8, 8*7, etc.
Q4. What is an LED module?
A4: It has a basic unit with a circuit and installation structure, display function, and display function by the simple assembly.
Just PM me for more information about large led video screens ~
