Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3mm,4mm,5mm,6.67mm,8mm,10mm,16mm | Module Size: | 320*160mm |
|---|---|---|---|
| Cabinet Size: | 960*960mm | No. Of Modules Per Panel (W*H): | 3*6 |
| Panel Material: | Steel/Aluminum | Weight(sqm): | 65/45 |
| Gray Scale: | 16 Bit | Colours: | 281 Trillion |
| Contrast Ratio: | 2,000:1 | Avg Power Consumption: | 360W/sqm |
| Max Power Consumption: | 900W/sqm | Birightness: | 6500nits |
| Refresh Rate: | 1920Hz | Vertical Viewing Angle: | 160° |
| Horizontal Viewing Angle: | 140° | ||
| Highlight: | roadside led display,street led screen |
||

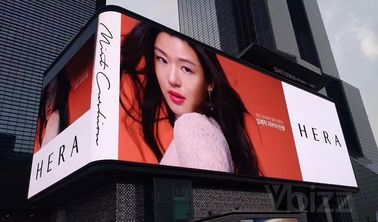

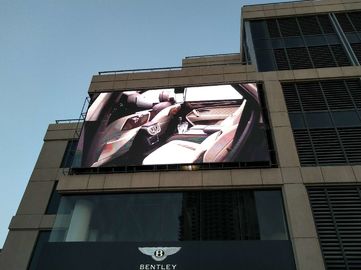

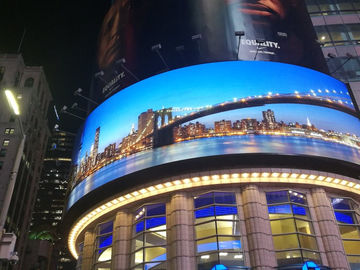

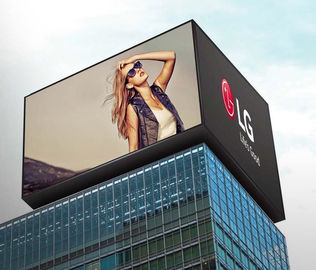

Outdoor Fixed LED Display for Outdoor Advertising Billboard
Outdoor LED Display Specification:
| Model | BOF P6.67 |
| Pixel Pitch | 6.67mm |
| Pixel Density | 22500 pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |

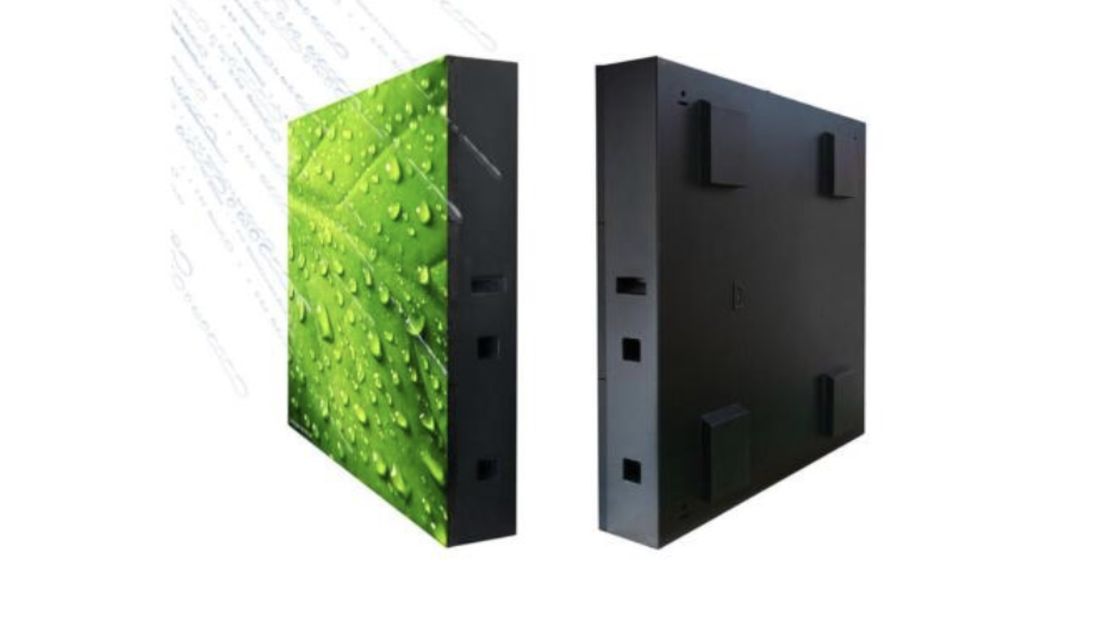

| Cabinet Dimension | 960mm*960mm |
| Cabinet Resolution | 144*144pixels |
| Weight | 65kg/sqm |
| Cabinet Material | Steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg. ) | 300W/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Outdoor LED Display Feature:
1. High difinition, wonderful visual performance;
2. Fast Installation and Easy Maintenance.
Fast lock system guarantees a quick and easy installation
Conventional Rear and Front Access
3. High refresh rate and high contrast, clear picture without flicker and distortion;
4. Outdoor Rate:IP65
5. Different Installations.
6. Certificates.
7. How to control the screen?
