Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 8mm 10mm | Pannel Material: | Steel |
|---|---|---|---|
| Servicing: | Front/Rear | Refresh Rate: | ＞1920Hz |
| Contrast Ratio: | 2000:1 | Brightness: | ＞6500nits |
| High Light: | led digital billboard,outdoor led billboard |
||
P8 P10 Nationstar Lamp LED Billboard LED Video Wall Screen for Advertising and Building Roof
LED Billboard Quick Details:
1, Pixel Pitch: 8mm.10mm
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: Customized, cabinet weight:65kg/Sqm.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
LED Billboard Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm,8mm, 10mm, 16mm, within these pixels, 8mm,10mm are the most hot-selling and highest cost-effective series.
LED Billboard Application:
Bako Vision outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on. Even we can install it in car/truck as mobile screen.
Energy Saving LED Billboard Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
6,±10° adjustable, creative design to meet your requirement;
Energy Saving LED Billboard Specification:
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W / Sqm | 360 W / Sqm |
| Max Power Consumption | 900 W / Sqm | 900 W /panel |
| Average Power After Energy Saving | 90 W /Sqm | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm | 230 W /Sqm |
| Brightness | >6,500 nits | >6,500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/10 Scan | 1/8 Scan |

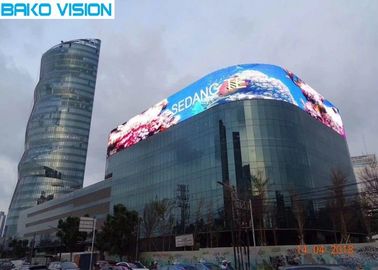

LED Billboard Case (Click below image to link to the video):
