Front serviceDouble sides P5 outdoor display with Nationstar leds
Product Details
| Panel Material: | Steel/Aluminum | Brightness: | >6,000 Nits |
|---|---|---|---|
| Servicing: | Rear | IP Rating(Front/Rear): | IP65/IP54 |
| Refresh Rate: | >1,920 Hz | Processing: | 16 Bit |
| Highlight |
roadside led display,street led screen |
||
Product Description
Double sides P5 outdoor front service display with Nationstar leds
P5 outdoor front service display description
Cutting edge "cold display" technology
60% power lower than normal
50% tempearture less than normal
P5 outdoor front service display specs
| BOF-B-5 | |
| Physical Pitch | 5 mm |
| Pixel Configuration | SMD 2727 |
| Pixel Density | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 |
| Physical Resolution of Module (W × H) | 64 × 32 |
| Physical Resolution of Panel (W × H) | 192 × 192 |
| Panel Material | Steel / Aluminum |
| Weight(m²) | 65/45 |
| Processing | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 36 W/m² |
| Max Power Consumption | 900 W/ m² |
| Brightness | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing angle | 140° |
| Expected Lifetime | 100, 000 Hrs |
| Servicing | Rear |
| IP Rating | IP 65 |
| Operating Temp/Humidity | -20℃- 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% |
| Scan Method | 1/8 Scan |

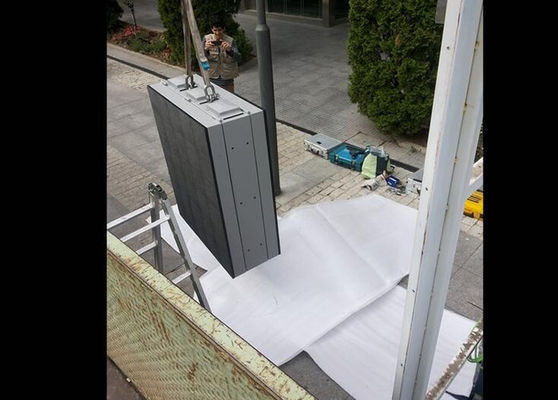

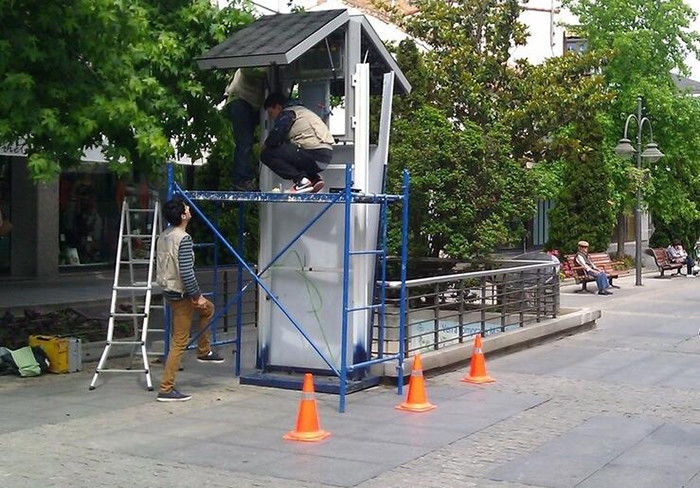

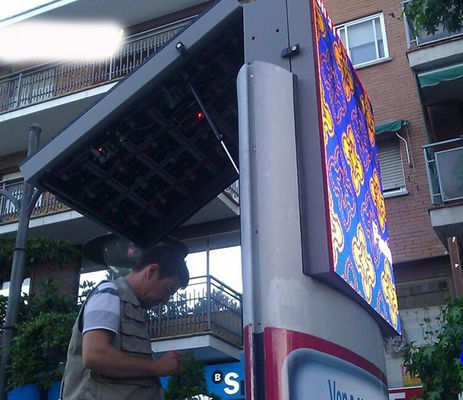

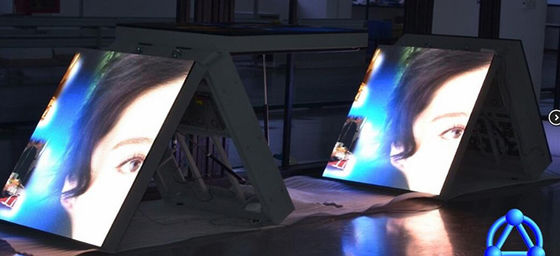

Cases:
