|Warranty:||2 Years||LED Chip:||Epstar/Kinglight/Nationstar|
|Pixel Configuration:||1G 1R 1B||Scanning Mode:||1/16 Scan|
|Pixel Pitch:||4mm||Tube Chip Color:||Full Color|
|Operating Temperature:||-30~-60t||Color Temperature:||6500K-9500K|
|Viewing Distance:||4m - 40m||Lamp Tube:||SMD2020/2121|
stage led video wall,
led video wall display
Factory Price Indoor Fixed LED Display P4 Video Wall7-BIF-Tia.pdf

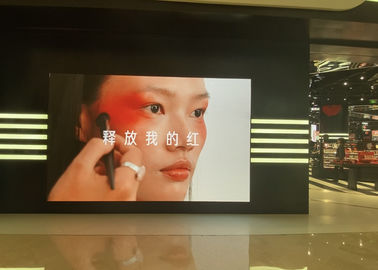

Indoor Fixed LED Display Screen for Permanent Installation
It's used for performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment etc and it can realize HD video function with several different controlling systems,such as Nova, Mooncell,linsn and so on.
A: High refresh rate: With NOVAstar control system,no scanning line when photographed
B: High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect
C: High resolution: The most apparent features of the new generation of LED display
D: Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
E: High Brightness: 6000-8000cd/m2, brightness automatically adjusted
F: High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time
G: Long life span: over100,000hours, warranty at least 2 years.
H: You need = We design: Provide Personal- Customized led offer.
Indoor Fixed LED Display Screen for Permanent Installation Parameters:
|LED||LED type||wave Length(nm)||Average Brightness
|Physical Pitch||3 mm||4 mm|
|Pixel Configuration||SMD 1212||SMD 1212|
|Pixel Density||111,111 pixels/m²||62,500 pixels/m²|
|Module Dimensions (W × H) (mm)||192 × 192||256 × 128|
|Panel Dimensions (mm)||960 × 960||1024 × 768|
|NO .of Modules Per Panel (W × H)||5 × 5||4 × 6|
|Physical Resolution of Module (W × H)||64 × 64||64 × 32|
|Physical Resolution of Panel (W × H)||320 × 320||256 × 192|
|Panel Material||Steel / Aluminum||Steel / Aluminum|
|Processing||16 bit||16 bit|
|Colour||281 trillion||281 trillion|
|Contrast Ratio||4,000 : 1||4,000 : 1|
|Average Power Consumption||120 W /㎡||120 W/㎡|
|Max Power Consumption||400 W /㎡||400 W /㎡|
|Brightness||>1,000 nits||>1,000 nits|
|Refresh Rate||>1,920 Hz||>1,920 Hz|
|Vertical Viewing angle||160°||160°|
|Horizontal Viewing Angle||140°||140°|
|Expected Lifetime||100,000 Hours||100,000 Hours|
|Servicing||Front / Rear||Front / Rear|
|IP Rating (Front/Rear)||IP21||IP21|
|Operating Temp/Humidity||-20℃- 50℃ / 10% - 90%||-20℃- 50℃ / 10% - 90%|
|Storage Temp/humidity||-20℃- 50℃ / 10% - 90%||-20℃- 50℃ / 10% - 90%|
Indoor Fixed LED Display Screen for Permanent Installation Features:
1. Easy to install and disassemble.
2. Indication lights to show status of power and signal.
3. The better quality/price ratio in LED Displays field.
4. Fast cooling: excellent heat dissipation performance to protect the module circuit
5. High refresh rates:With high refresh rates, our products can display flicker-free video images - including live video feed
6. High gray level and good color uniformity with brand IC, led lamp
Indoor Fixed LED Display Screen for Permanent Installation Cases:
To provide the most proper productions for you, we would like to know more details before offering you the best quotation.
1. What is the size of the moduel and cabinet you want.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods (is it urgent or not.)
5. Any special requests such as video processor, hanging bar, flight case for package.
We use carton with foam sheet and cabinet with wooden case/flight case.
We will choose the most practical package as to customer's requirements.
1) Carton with foam plate / EPE
2) Neutral packaging without logo
3) Anti-shaking wooden case package for sea shipment.
4) Flight case package with convenient transportation.
5) Customized package can be designed and made.
1) Q: How can I place an order and how it works?
A: Generally, first, we could make samples for customers, according to the artworks, affirmed material, processing or workmanship. After the sample is confirmation, we will produce the mass production. And, meanwhile, we will show you the pre production.
2) Q: What's the shipment method?
A: We often use DHL, FEDEX. UPS, TNT or Sea Shipping to ship our products.
3) Q: What's the payment method?
A: You can pay by L/C, T/T, Western Union
4) Q: Can I have samples to test the quality?
A: Yes, you can buy any sample to test the quality.
5) Q: What's the delivery time and can you lower the price?
A: It depends on your order and which shipping way you choose.The delivery time is usually within 25-30 days. If you have placed an order of large quantities, then, of course, the price can be lowered.
