Payment & Shipping Terms:
|IP Rating:||IP30||Usage:||For Indoor Shopping Mall|
|Warranty:||2 Years||Brightness:||More Than 5500nits|
|Power Supply:||Meanwell||Feature:||No Cable Between Module|
clear led screen,
transparent glass led display
LED Transparent Light Stripe Display Screen High Bright Seamless Nationstar P10 led
LED transparent screen, as its name implies, is characterized by "transparency".
Traditional screen is impervious to light and wind, which causes many problems, such as overweight screen, poor heat dissipation, complex structure, high power consumption, abrupt shape, and so on, thus giving birth to "transparent LED display".
It has the characteristics of high transparency and ultra-light. Its realization principle is the micro-innovation of the lamp screen. It improves the patch manufacturing process, the lamp bead packaging and the control system. With the hollow-out design structure, it reduces the obstruction of the structural components to the line of sight and significantly improves the perspective effect.

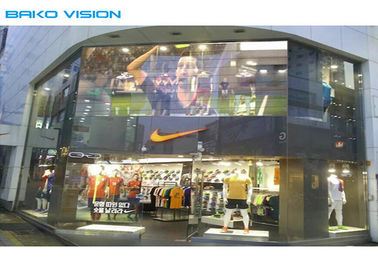

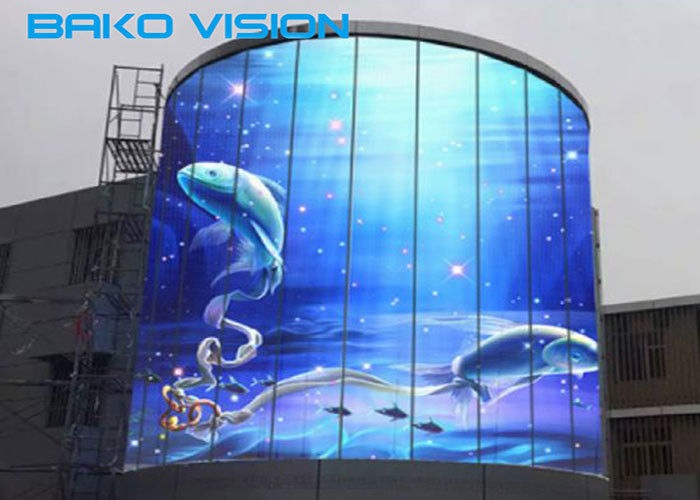

At the same time, it has a novel and unique display effect. The audience stands at an ideal distance to watch, and the picture is suspended above the glass curtain wall. Transparent LED screen expands the application of LED display to the two markets of building glass curtain wall and commercial retail window, which has become a new trend of the development of new media.
|Gray Scale||16 bit|
|View Angle(H/V)||120°/ 140°|
|Operating Temp/Humidity||-10℃-60℃ / 10%-90%|
|Average Power Consumption||207W/sqm|
Firstly, High transparency, 60-80% transparency rate. And hidden cable appearance, it looks very clean and concise. When install it, we can see the shop through, don’t worry about blocking the internal view of shop, but show some useful message to customers.
Secondly, Slim, Lightweight and Clean,Firstly, 14kg per sqm, lighter than traditional cabinet, so installation can be done by a single person, save the labor cost.
35-45mm thickness, it available to attach onto glass wall directly. Beautiful and save space.
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Q1: How to choose a proper led screen for your need?
A: You just need to think of 3 simple questions when you choose a led screen by yourself.
1. Will you use it indoor or outdoor?
2. Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3. what is the appoximate size of the led screen you would like to purchase?
Q2: Which pixel pitch should i choose?
A: There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3: Which control system should i choose?
A: There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
Q4: How to pay?
A: We accept L/C, T/T bank, or paypal or westerunion.
Q5: How to ship?
A: It is optional and we respect customer's choice. You can choose to ship by air cargo, by internation express company, or by sea according to your goods weight and volume and the delivery time you need.
Q6: How to install it after i received it?
A: We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
