Product Details:
Payment & Shipping Terms:
|
| Pannel Material: | Steel | Servicing: | Front/Rear |
|---|---|---|---|
| Refresh Rate: | ＞1920Hz | Contrast Ratio: | 2000:1 |
| Brightness: | ＞5500nits | IP Rating(Front/Rear): | IP65 |
| High Light: | led digital billboard,outdoor led billboard |
||

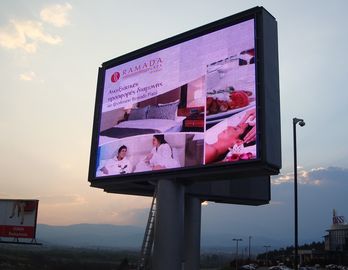

Nationstar Lamp Outdoor Waterproof P8 P10 Led Advertising Billboard, LED Video Display Screen Signs
Quick Details:
1, Pixel Pitch: 8mm, 10mm.
2, SMD LEDs, Wide viewing angle: 160°/ 140°.
3, Digital Process: 16bits.
4, Standard cabinet size: 960mmx960mm and can customized, cabinet weight: 60kg/m2.
5, Warranty: 2years.
6, Recommended minimum viewing distance: 10m.
Description:
Bako Vision outdoor led digital billboards pixel include 4mm, 5mm, 6.67mm, 8mm, 10mm, 16mm, within these pixels, 6.67mm, 8mm, 10mm are the most hot-selling and highest cost-effective series in current market.
Application:
Bako outdoor led electronic billboards are widely installed on poles, single pole-mounted, dual pole-mounted, or tri-pole mounted, doing advertisement or broadcasting for airport, bus station, railway, government, school, shopping mall, public places, advertising media and so on.
Features:
1, High IP Rating IP65, good waterproof and dust resistance, suitable for every condition.
2, Wide viewing angle 160° for broader reach, seamless in all direction with same image quality output, suitable for large gatherings.
3, High brightness from 6,000nits to 9,000nits, visible from every direction even face to direct sunshine.
4, Good heat dissipation with fans and using meanwell power supply, long lifespan.
5, Light Sensor can control the brightness of LED to fit different weather and time, this can save your energy cost.
Advantages:
1, High quality SMD led panels, stable and high durability.
2, Without ghosting, clear and clean.
3, High fresh rate up to 2,000Hz, high contrast to 2,000:1, vivid color.
4, Nationstar lamp with high quality and long lifespan.
Specification:
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /Sqm | 360 W /Sqm |
| Max Power Consumption | 900 W /Sqm | 900 W /Sqm |
| Average Power After Energy Saving | 90 W /Sqm | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm | 230 W /Sqm |
| Brightness | ＞6,500 nits | ＞6,500 nits |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| IP Rating | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃ - 50℃ / 10%-90% | -20℃ - 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃ - 50℃ / 10%-90% | -20℃ - 50℃ / 10%-90% |
| Scan Method | 1/4 Scan | 1/2 Scan |
Case
FAQ
1. How to payment?
We accept the L/C, T/T.
2.What is the packing method?
We usually use plywood case or flight case.
3.How about the delivery time?
We will ship within 15-25 working days after you placed the order.
4.What's the warranty of your Led Poster?
We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps
Our services
Pre-producing
1. Get complete requirements of clients.
In producing
After service
1. 2 years free warrenty.
