Rear Service Outdoor Fixed LED Display P8 Waterproof IP65 Convex With Curvilinear
Product Details
| Cabinet Material: | Steel/Aluminum | Weight(m²）: | 65/45 |
|---|---|---|---|
| Colors: | 281 Trillion | Warranty: | 2 Years |
| Average Power Consumption: | 360W/m² | Contrast Ratio: | 4000:1 |
| Servicing: | Front | Life Span: | 100,000hours |
| Highlight |
roadside led display,street led screen |
||
Product Description
TECHNICAL SPECIFICATIONS
10mm 10,000/m² >6500nit IP65
Pitch Density Brightness Weather Rating
281trillion 45kg/m² m 16bit 360/900w
Colors Weight Gray Scale Power Avg/Max
| BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Physical Pitch | 3.2 mm | 4 mm | 5 mm | 6.67 mm | 8 mm |
| Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
| Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 5 × 5 | 3 × 6 | 3 × 6 | 3 × 6 | 3 × 6 |
| Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight(m²) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W/m² | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | - | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | - | 230 W/ m² | 230 W/ m² |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
|
Servicing
|
Rear | Rear | Rear | Rear | Rear |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃- 50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Scan Method | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/10 Scan | 1/4 Scan |
(Due to the layout limited,SMD P10 & DIP P10,P16 are not listed. If any interest about these 3 pixel pitch,please feel free to contact me. )

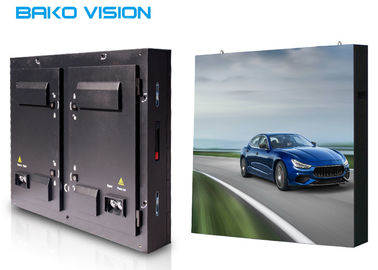

BF Series Rear Service

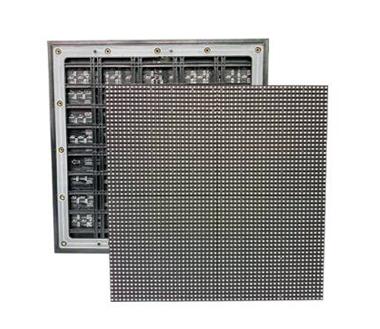

Durable and Qualified Components
● Deliberate designs on waterproof and ventilatioin system

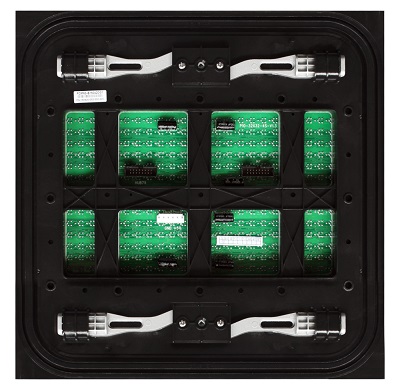

Multifunctional Module Buckle
● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
Outdoor Rated
●Brightness adjustable for day and night
● IP65 Rating,Durable LED for 7/24 work mode
● Cutting edge"cold display" technology,60% power lower than normal,50% tempature less than normal

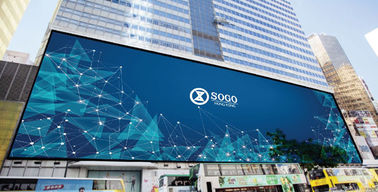

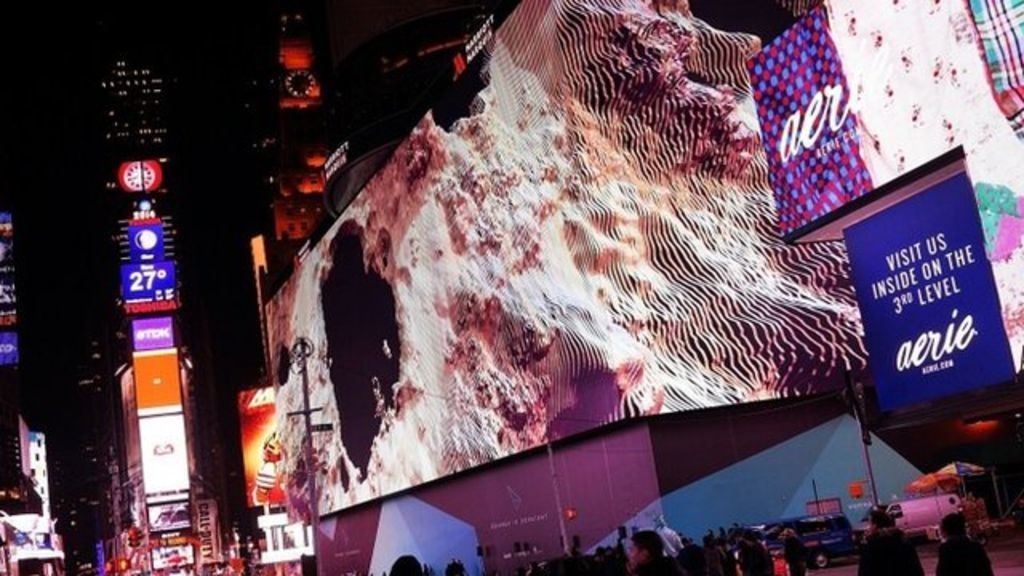

Cases
After-sales Service
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Packaging and Shipping
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
