Mechanical Front Access Outdoor Fixed Billboard Screen Advertising Display P8 Waterproof IP65
Product Details
| Cabinet Material: | Steel/Aluminum | Weight(m²）: | 65/45 |
|---|---|---|---|
| Colors: | 281 Trillion | Warranty: | 2 Years |
| Average Power Consumption: | 360W/m² | Contrast Ratio: | 4000:1 |
| Servicing: | Front | Life Span: | 100,000hours |
| Highlight |
roadside led display,street led screen |
||
Product Description
TECHNICAL SPECIFICATIONS
4.81mm 43,264/m² >6500nit IP65
Pitch Density Brightness Weather Rating
281trillion 45kg/m² m 16bit 360/900w
Colors Weight Gray Scale Power Avg/Max
| BOF-F-4 | BOF-F-5 | BOF-F-6 | BOF-F-8 | BOF-F-10 | |
| Physical Pitch | 4 mm | 5.95 mm | 6.67 mm | 8 mm | 8 mm |
| Pixel Configuration | SMD 2727 | SMD 2727 | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 43,264 pixels/m² | 28,246 pixels/m² | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 320 × 320 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 1000 × 1000 × 150 | 500 × 1000 × 150 | 1280 × 960 × 150 | 960 × 960 × 150 | 1280 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 4 × 4 | 2 × 4 | 4 × 3 | 3 × 6 | 4 × 6 |
| Physical Resolution of Module (W × H) | 52 × 52 | 52 × 52 | 48 × 48 | 32 × 32 | 32 × 32 |
| Physical Resolution of Panel (W × H) | 208 × 208 | 84 × 168 | 192 × 144 | 120 × 120 | 96 × 96 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight(m²) | 65/45 | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | 90 W/ m² | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | 230 W/ m² | 230 W/ m² | 230 W/ m² |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Horizontal Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Rear | Rear | Rear | Rear | Rear |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% |
| Scan Method | 1/13 Scan | 1/7 Scan | 1/10 Scan | 1/4 Scan | 1/2 Scan |

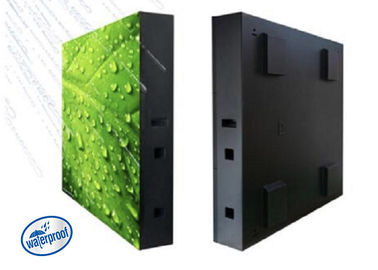

BF Series Front Service
Multifunctional Module Buckle
● Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.
Fast Installation and Easy Maintenance
● Fast lock system design guarantees a quick and easy installation
● Mechanical front access
Outdoor Rated
●Brightness adjustable for day and night
● IP65 Rating,Durable LED for 7/24 work mode
● Cutting edge"cold display" technology,60% power lower than normal,50% tempature less than normal

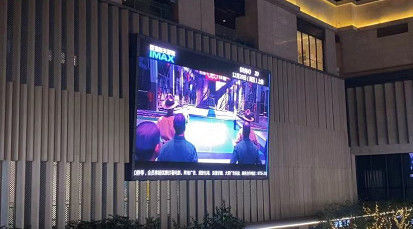

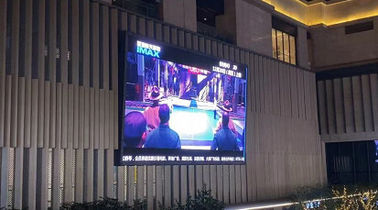

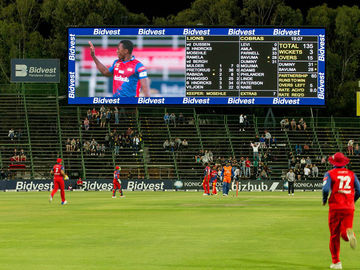

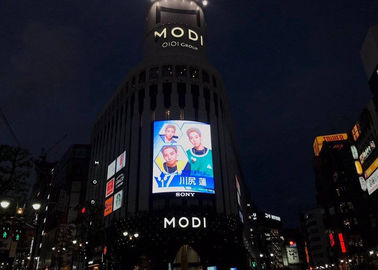

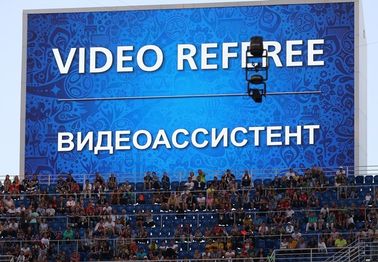

Cases
After-sales Service
We offer 2 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Packaging and Shipping
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
