Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen

Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen
Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen

Large Image :  Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen

Product Details:

Place of Origin: China
Brand Name: Bako
Certification: CCC,CE,UL,ETL
Model Number: BOF Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case/Plywood case
Delivery Time: 15-25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 8000 square meter per month
Detailed Product Description
Physical Pitch: 6.67mm 8mm 10mm Panel Dimensions: Customized
Refresh Rate: >1920Hz Brightness: >5500nits
Contrast Ratio: 2000:1 IP Rating: IP65
High Light:

roadside led display

,

street led screen

P6.67 P8 P10 Double Sided Outdoor Waterproof Led Video Display Screen for Advertising Billboard

Fixed Led Screen Quick Details:

1, Pixel Pitch: 6.67mm. 8mm.10mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: customzied, weight: 65kg/m2 for steel frame.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.

Fixed Led Screen Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm, 8mm,10mm, you can use it on building or billboard. Even you can use it on truck/car as mobile screen.

Fixed Led Screen Features and Advantages:
1, High brightness from 5,500nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.

4, IP65 waterproof and dust resistance, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.

6, Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7, Front access make easy maintenance.
8, There can improve the resolution by changing new module with small pixel, no need to purchase new screen,this can save lots of cost.

9, With Air Pump, there can easy to open the cabinet for maintanence and installation.

Fixed Led Screen Specification:


Physical Pitch 6.67mm 8mm 10mm
Pixel Configuration SMD2727 SMD3535 SMD3535
Pixel Density 28,224 pixels/Sqm 15,625 pixels/Sqm 10,000 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 320 256 x 256 320 x 320
Panel Dimensions (mm) 1280 x 960 x 150 1280 x 768 x 150 1280 x 960 x 150
NO. of Modules Per Panel (W x H) 4 x 3 5 x 3 4 x 3
Physical Resolution of Module (W x H) 48 x 48 32 x 32 32 x 32
Physical Resolution of Panel (W x H) 192 x 144 160 x 96 128 x 96
Panel Material Steal / Aluminum Steal / Aluminum
Weight (kg/Sqm) 45 40 45
Processing 16bit 16bit 16bit
Colours 281 trillion 281 trillion 281 trillion
Contrast Ratio 2,000 : 1 2,000 : 1 2,000 : 1
Average Power Consumption 360 W /Sqm 360 W /Sqm 360 W /Sqm
Max Power Consumption 900 W /Sqm 900 W /Sqm 900 W /Sqm
Average Power After Energy Saving - 90 W /Sqm 90 W /Sqm
Max Power After Energy Saving - 230 W /Sqm 230 W /Sqm
Brightness >6,500 nits >6,500 nits >6,500 nits
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz
Vertical Viewing Angle 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140°
Expected Lifetime 100,000 Hrs 100,000 Hrs 100,000 Hrs
Servicing Front Front Front
IP Rating IP 65 IP 65 IP 65
Operating Temp/Humidity -20ºC - 50ºC / 10%-90% -20ºC - 50ºC / 10%-90% -20ºC - 50ºC / 10%-90%
Storage Temp/Humidity -20ºC - 50ºC / 10%-90% -20ºC - 50ºC / 10%-90% -20ºC - 50ºC / 10%-90%
Scan Method 1/10 Scan 1/4 Scan 1/2 Scan

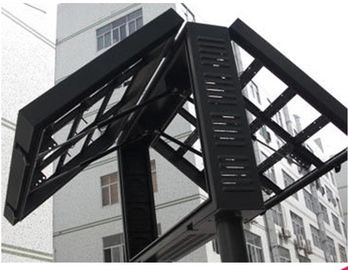

Fixed Led Screen Case:



Wide Viewing Angle Outdoor Fixed LED Display Robust Steel Street Side Double-sided LED Screen 0


Our Service


Warranty
1. We guaratee all our display, modules, spare parts for TWO years.
2. We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3. After warranty, we also can offer you the parts for replacement at our bottom price.
4. After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5. We also could solve problems for you antil it recovers well by remote control!

Delivery time
1. Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2. Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.

Installation
1. We can assist the training and technical support for the customer in the factory, if the customer require so.
2. We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
