Led Poster Screen P2.5 Portable Digital Signage For Shop Window Advertising
Product Details
| Product Name: | Led Poster Screen | Panel Material: | Aluminum |
|---|---|---|---|
| Diaplay Thickness: | 35mm | Driving Method: | 1/32Dynamic Scan |
| Brightness: | >1,000nits | Servicing: | Front & Rear Service |
| Processing: | 16 Bit | Refresh Rate: | 3840Hz High Refresh |
| Highlight |
front maintenance led display,outdoor full color led screen |
||
Product Description

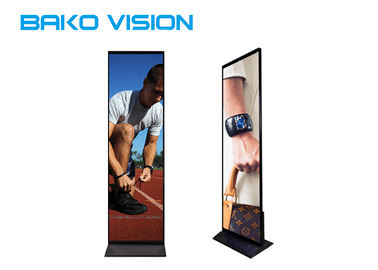

Led Poster Screen P2.5 Portable Digital Signage For Shop Window Advertising
BP Series
Slim, Form Changeable
Digital Ads Led Poster Screen
● Slim Appearance
● Multiple Installation and Form Changeable
● Various Signal Operations

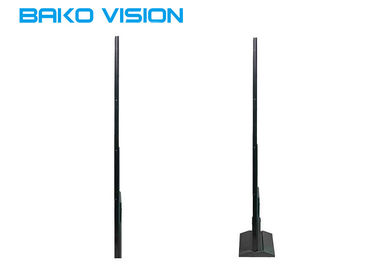

Ultra Slim and Lightweight
● Ultra slim edge 6mm, display thickness 35mm
● Net weight 32kg per set
Portable and Move-able
● Standing and stacking options for Led Poster Screen
● Wheels for easy transportation
Multiple and Fast Installation
● Variable installations, eg: hanging, wall mounting, splicing
● Optional accessories for fast installation
● Available for horizontal assembling as a bigger led poster screen
Led Poster Screen Electrical Features
● Refresh rate 2880Hz
● 160-degree viewing angle
● 4000:1 contrast ratio
● Max. / Avg. power 600W/200W
Mirror LED Poster Screen Parameters
| BP-1 | BP-2 | BP-2-Pro | BP-3 | |
| Physical Pitch | 1.9mm | 2.5mm | 2.5mm | 3mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/㎡ | 169,344pixels/㎡ | 157,464pixels/㎡ | 110,889pixels/㎡ |
| Module Dimensions (W × H) (mm) | 160×160 | 160×160 | 280×210 | 192×192 |
| Whole Set Dimensions (W × H) (mm) | 640×1920×35 | 640×1920×35 | 571×1897×33 | 574×1928×35 |
| No. of Modules Per Panel (W × H) | 4×12 | 2×9 | 2×9 | 2×9 |
| Physical Resolution of Module (W x H) | 84×84 | 64×64 | 108×81 | 64×64 |
| Physical Resolution of Whole Set (W x H) | 336×1,010 | 256×768 | 216*729 | 192×640 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 32kg | 32kg | 28kg | 32kg |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000:1 | 4,000:1 | 4,000:1 | 4,000:1 |
| Average Power Consumption | 250 W / set | 200 W / set | 100 W / set | 200 W / set |
| Max Power Consumption | 750 W / set | 600 W / set | 390 W / set | 600 W / set |
| Scan Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Operating Temp/Humidity | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% | -10°-60℃/10%-60% |
| Storage Temp/Humidity | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% | -30°-60℃/10%-60% |
| Brightness | >1,000nits | >1,000nits | >1,000/3,500nits | >1,000nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° | 140° |
| IP Rating (Front/Rear) | IP40 | IP40 | IP40 | IP40 |
| Frame Rate | 60 fps | 60 fps | 60 fps | 60 fps |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Bezel | 6mm | 6mm | 4mm | 6mm |
Portable Digital Signage Details

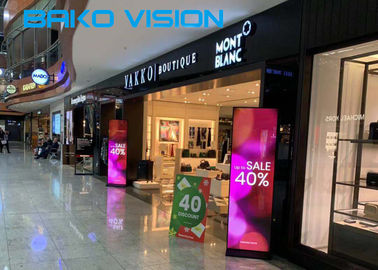

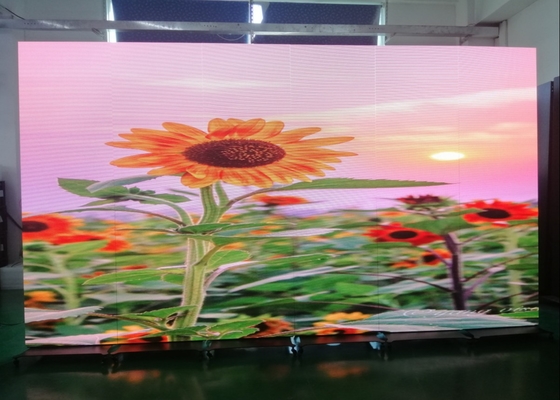

Advertising LED Poster Screen Cases
Packaging and Shipping
FAQ
Q1:Are you a factory or a trading company?
A1:We are a factory owing a professional R & D department and production lines with 14 years of experience in led poster screen.
Q2:Why I should choose your company ?
A2:We have been focusing on the development of led poster screen and have a good reputation in the market. We strictly follow up on the requirements of customers and are committed to achieving a win-win situation with customers. Whatever the product's stability or service we will do better and better.
Q3: What's the warranty of your LED Display ?
A3: 2-5 years warranty .and 100000 hours life span. During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, is a world-class manufacturer of technologically advanced LED displays, focusing on high-end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, and creative LED models besides standard LED poster screen.
BAKO VISION contains experienced team leaders and each of them has been working in the LED display industry for over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great teamwork, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, and perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficiency, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
