Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 8mm 10mm | Panel Dimensions: | Customized |
|---|---|---|---|
| Refresh Rate: | >1920Hz | Brightness: | >5500nits |
| Contrast Ratio: | 2000:1 | IP Rating: | IP65 |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||
Waterproof Outdoor Led Billboard for Advertising and Billboard on Street side and Building Roof
Fixed Led Screen Quick Details:
1, Pixel Pitch: 8mm.10mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: customzied, weight: 65kg/m2 for steel frame.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.
Fixed Led Screen Description:
Bako Vision outdoor led digital billboards pixel include 4.81mm, 6.67mm, 8mm,10mm, you can use it on building or billboard. Even you can use it on truck/car as mobile screen.
Fixed Led Screen Features and Advantages:
1, High brightness from 5,500nits to 9,000nits, visible from every direction even face to direct sunshine.
2, SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Cabinet design lightweight, side handle for easy carrying and assemble job.
4, IP65 waterproof and dust resistance, durable for any weather condition.
5, Meanwell brand power supply, saving energy and high efficiency.
6, Digital process: 16bits, contrast ratio 2,000:1, vivid color.
7, Front access make easy maintenance.
8, There can improve the resolution by changing new module with small pixel, no need to purchase new screen,this can save lots of cost.
Fixed Led Screen Specification:
| Physical Pitch | 8mm | 10mm |
| Pixel Configuration | SMD3535 | SMD3535 |
| Pixel Density | 15,625 pixels/Sqm | 10,000 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 256 x 256 | 320 x 320 |
| Panel Dimensions (mm) | 1280 x 768 x 150 | 1280 x 960 x 150 |
| NO. of Modules Per Panel (W x H) | 5 x 3 | 4 x 3 |
| Physical Resolution of Module (W x H) | 32 x 32 | 32 x 32 |
| Physical Resolution of Panel (W x H) | 160 x 96 | 128 x 96 |
| Panel Material | Steal / Aluminum | Steal / Aluminum |
| Weight (kg/Sqm) | 40 | 45 |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W /Sqm | 360 W /Sqm |
| Max Power Consumption | 900 W /Sqm | 900 W /Sqm |
| Average Power After Energy Saving | 90 W /Sqm | 90 W /Sqm |
| Max Power After Energy Saving | 230 W /Sqm | 230 W /Sqm |
| Brightness | ＞6,500 nits | ＞6,500 nits |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz |
| Vertical Viewing Angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃ - 50℃ / 10%-90% | -20℃ - 50℃ / 10%-90% |
| Storage Temp/Humidity | -20℃ - 50℃ / 10%-90% | -20℃ - 50℃ / 10%-90% |
| Scan Method | 1/4 Scan | 1/2 Scan |

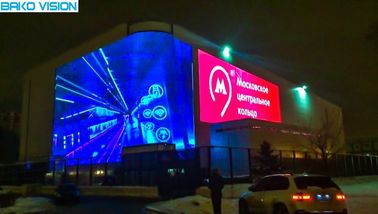

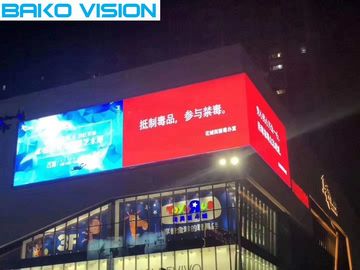

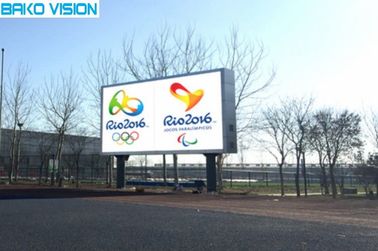

Fixed Led Screen Case:
Our Service
Warranty
1.We guaratee all our display, modules, spare parts for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty, we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by E-mail, we will reply you at once
when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you antil it recovers well by remote control!
Delivery time
1.Delivery time, Accompalish manufacturing within 25 days after receiving the deposit.
2.Before Delivery, we will test the display , and keep it light up for 72 hours, and check all the parts of the display to confirm it is OK for delivery.
Installation
1.We can assist the training and technical support for the customer in the factory, if the customer require so.
2.We could send our engineer to guide the installation to you. But the relavant cost should be paid by your esteemed company.
