Product Details:
Payment & Shipping Terms:
|
| Name: | Round Logo LED Screen | Sided: | Doubled Sided |
|---|---|---|---|
| Pixel Pitch: | P4.68 | Usage: | Outdoor |
| BRightness: | 4000 Nits | IP Level: | IP65 |
| Gray Scale: | 16 Bit | Colors: | 281 Trillion |
| Weight: | <16 Kg | Maintenance: | Front Maintenance |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||

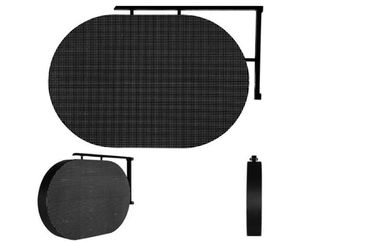

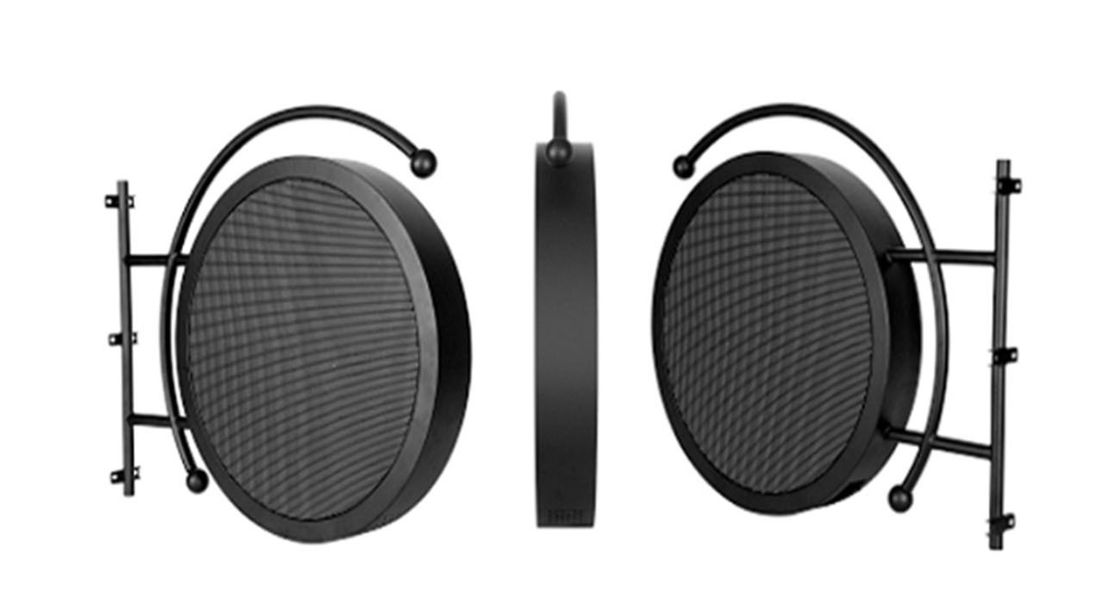

Outdoor LED Display Panel Round Double Sided Logo LED Screen
Features
1. Special design and attractive appearance.,round double sided led screen.
2. Supprt wifi and 3G/4G , simple and easier for installation and maintenance.
3. Easy control with asynchronous system, to change the contents by mobile phone at any time.
4. Outdoor usage with high brightnees and high waterproof level.
5. Options for P4.68/P5.92/P8/P10.Different size for your specific application.
6. Application: Shopping mall, Street road side, Stores, Bank, Hotel, Cafes, Night Club, Bars,etc
Specification
| Pixel Pitch | 4.68mm | Pixel Density | 45655 pixels/m² |
| Pixels Per Panel | 16384 Dots | Module Size | 300*300 mm |
| End-diameter | 600 mm | Drive mode | 16-bit constant current drive |
| Scan Mode | 1/8S | LED Type | SMD 2121 |
| LED Configuration | 1Red,1Green,1Blue | Brightness | 4000cd/m² |
| Environment | Outdoor | Recommended Viewing Distance | ≥7m |
| Rate Refresh | 960Hz | Operating Temperature | -20ºC~+60ºC |
| Storage Temperature | -40ºC~+80ºC | Colors | 281 Trillion |
| Horizontal Viewing Angle | +/-120° | Vertical Viewing Angle | +/-120° |
| LED Life Time | ≥100,000 Hours | Acoustic Noise | Fanless operation |
Services
1) We can offer customization service for customized products and can provide onsite installation and testing service.
2) We provide 2 years warranty and free repair service for our products sold.
3) We also provide free training to customers' engineer.
4) Regarding the production of products, from raw materials to every process, we have strict production and testing process to ensure that our products under the quality inspection system standards.
5) At the same time, before leaving the factory,we have an aging testing of 72 hours as well as waterproof test of outdoor led display to ensure the high quality of the product.
Tips
1) Payment: We accept the L/C, T/T, Western Union.
2) Shipment: We will ship within 30 working days after you placed the order, but the specific delivered time will be affected by the shipping company and shipping details.
3) Package: We usually pack the product in a wooden box or flight case.
