Product Details:
Payment & Shipping Terms:
|
| Module Size: | 300*300mm | Module Resolution: | 64*64mm |
|---|---|---|---|
| Led Packaging: | Nationstar/ Kinglight | Brightness: | >4000 Cd/m² |
| Frame Change Frequency: | >60HZ | Best Viewing Angle: | >7m |
| Gray Scale: | 16bits | Out Of Control Points: | <0.0001 |
| High Light: | events led display,led rental display |
||

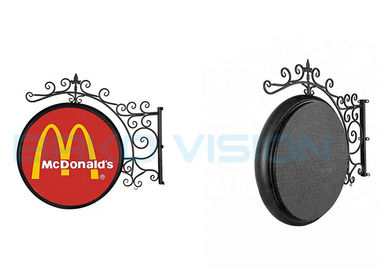

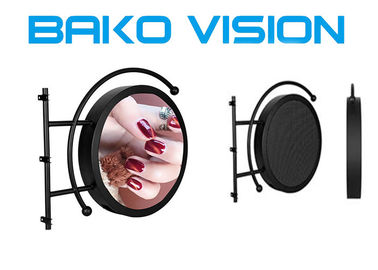

P4.68mm Curved Design IP65 Waterproof Circle Shape Led Screen Logo With Wifi Control
Curved Design Circle Shape Main Features:

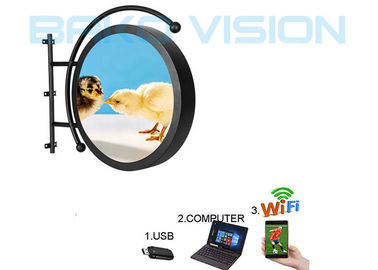

1. WIFI/USB control;4G optional
2. IP65 Waterproof, eye-catching
3. Nano light guide panel on middle which can guide the light more average from side to middle..
4. Bottom are acrylic with two U hole on top which can change poster easily without take off the screw.
5. High brightness leds edge-lit.
6. Wall mount or hang style.
>>Enery-saving
>>Easy installation
>>Environmental protection
>>High brightness and refresh 3840Hz
>>Using high reflesh IC, better viewing effect
>>Passed highest /lowest temperature testing
>>Larger viewing angle: Horizontal angle 160 degree, Vertical angle 140 degree
Curved Design Circle Shape Parameter/ Catalogue can be download⇒ 3. Round Sign LED Display.pdf
|
Pixel composition
|
1 red, 1 green, 1 blue LED (SMD1921)
|
|
Pixel spacing
|
The 4.68 mm
|
|
Module size
|
300 mm * 300 mm
|
|
Module resolution
|
64 x64
|
|
The LED chip
|
Three Ann
|
|
LED package
|
Country star packaging table stick three in one
|
|
According to the density
|
65536 / ㎡
|
|
Maximum brightness balance
|
P 4500 CD / ㎡
|
|
Gray level
|
Red, green and blue 256 level, up to 65536 level
|
|
According to the color
|
16.7M species, up to 281 trillion species
|
|
Out of control points
|
Less than 1/10000
|
|
The best stadia
|
7 m or higher
|
|
Viewing Angle
|
Level: ° 120 ° vertically acuity 120 or higher
|
|
Device driver
|
1/8 scanning (date/month 2017TD)
|
|
brightness adjustment
|
256-level software adjustment, 16-level automatic adjustment
|
|
frame rate
|
P 60 hz
|
|
refresh frequency
|
P 1920 hz
|
|
control mode
|
Nova asynchronous
|
|
Waterproof
|
IP65
|
|
screen life
|
Or 100, 00 hours.
|
|
Continuous working hours
|
> 72 hours
|
|
Mean time to failure
|
> 1000 hours
|
|
working voltage
|
AC 220V 15%, 50Hz 2 Hz
|
|
Ambient temperature and humidity
|
Temperature: - 20 ℃ ~ + 60 ℃, humidity: 10% to 95%
|
|
power consumption (maximum/average)
|
About 400W/set
|
|
screen weight
|
16 kg/computer or less
|
|
switching power supply
|
3.8v /60A(siqi power supply)
|
Curved Design Circle Shape Produce Detail
1.Specialized In LED Display Solution For Retail Market And Shop Win-Win Marketing System
2.Beautiful appearance design,compact and practical,vertical and suspended,there are three models to choose, the brightness of indoor is much higher, and outdoor can be waterproof and dustproof.There are different size to choice.
3. Simple and Easy to install,Supprt wifi and 3G/4G mode for maintenance and update of programs.
4. At home or office, you can easily control the playlist over the network or send meia files to the led display screen.
Click the pictiure below and you will got the video show. ↓↓↓↓↓↓

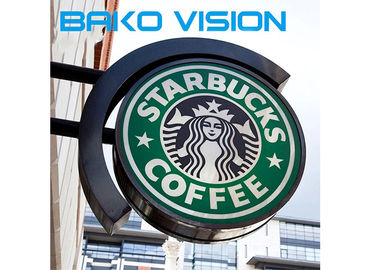

Application of Round LED display screen:
Widely used among coffee shops,4s car shop,auto shops, convenient stores,grocery stores, retail chain stores, resturant, bars, barber shops,bake shops, beauty and care centers.etc
About us
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients.
