Product Details:
Payment & Shipping Terms:
|
| Panel Size: | 480mm X 480mm X 80mm | Panel Weight: | 7 KG |
|---|---|---|---|
| Material: | High-precision Die-cast | Power Consumption: | 200 ~ 300W /m² |
| Operating Temp/Humidity: | -10℃- 60 ℃ / 10% - 60% | Expected Lifetime: | 100, 000 Hrs |
| High Light: | hd led video wall,modular led display |
||
Indoor HD LED Display 480 x 480mm Panel Fine Pitch 1.5 / 1.8 / 2.5 / 3.0mm
Description:
1. Indoor high definition LED screen, fine pitch for camera shoting, wide viewing angle.
2. Slim and lightweight cabinet, can be loaded by one person, quick assembling, quick maintainance, reduce carrying, save costs.
3. High precision assembling, super flat and smooth, present excellent video effect.
4. Both front and rear service available, you can use normal rear service, or choose front service for wall mounted installation.
5. Adopt fast locking structure connected, firm, quick, beautiful. Tools free installation. Cable-less between modules.
Parameters:
| Physical Pitch | 1.875 mm | 2.5 mm | 3 mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
| Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 |
| Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
| NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 128 × 128 | 96 × 96 | 96 × 96 |
| Physical Resolution of Panel (W × H) | 256 × 256 | 192 × 192 | 160 × 160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 260 W /m² | 215 W /m² | 235 W /m² |
| Max Power Consumptionx | 690 W/m² | 640 W/m² | 670 W/m² |
| Operating Temp/Humidity | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Srightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/38 Scan | 1/32 Scan | 1/20 Scan |

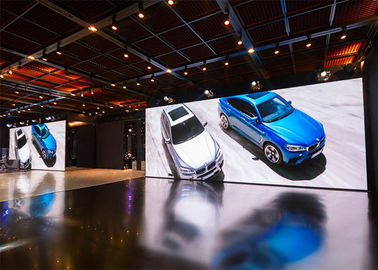

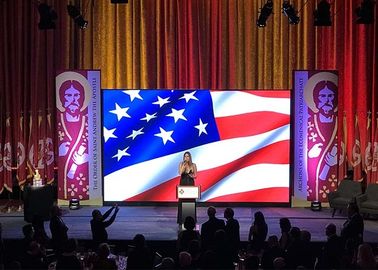

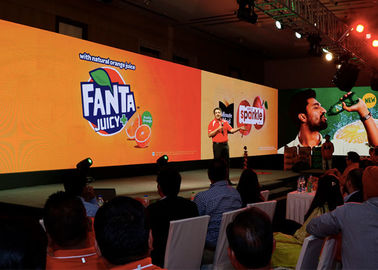

Case reference:
Company Vision: Professional Team Focus on Professional Work, that is how to build BAKOVISION brand.
Company Mission: Offer professional solution to professional customers, create value for customers.
Company Spirit: Focus Efficiency Sincerity Innovation.
1)Reply your inquiry in 24 working hours.
2)Customized design is available,OEM & ODM are welcomed.
3)Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4)Special discount and protection of sales area provided to our distributor.
5)Warmly welcome your visit our factory if available.
