Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 3.91mm | Panel Material: | Die-casting Aluminium |
|---|---|---|---|
| Module Size:: | 250mm*250mm | LED Chip: | Nationstar |
| Power Supply: | G-energy | Life Span: | 100,000 Hrs |
| High Light: | events led display,led rental display |
||
P3.91/ P4.81mm Outdoor Stage Background Led Display Waterproof Advertisement
Features of Rental LED Display:
1. SMD encapsulation technology, 140 °super wide Angle, making the viewer can obtain excellent display effect in any Angle;
2. Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection and energy saving for Rental LED Display.
3. Any direction, any size, any shape can be jointed presenting perfect seamless visual effect;
4. Rental LED Video Wall with die-casting aluminum frame design, screen is super light and thin, saving space and costs, fashionable and beautiful;
5. Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display.
6. Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
1. Lighter than ever
Slim and smart ideal substitution for traditional outdoor rental LED screen
The aluminum material makes the cabinet 20% lighter than before.
2. Curved design
Truss hanging and ground support both available
Concave and convex angle can reach to 0°-10° degree
Meeting the demands of creative and customized request.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

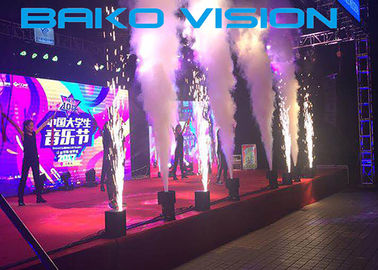

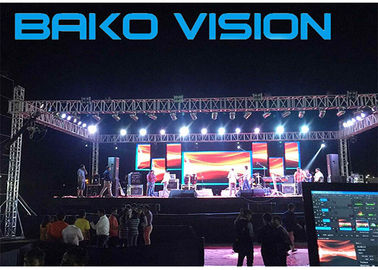

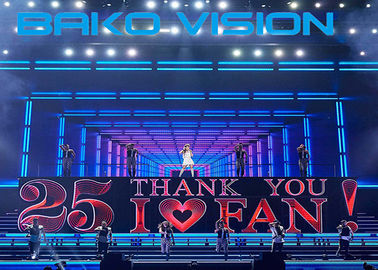

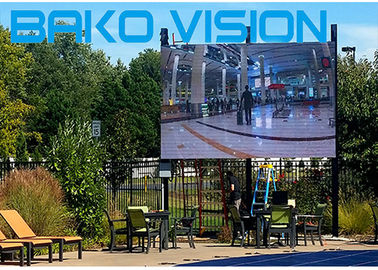

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
