Commercial Advertising Outdoor Fixed LED Display DIP P15.625 P25 Mesh Screen Sign Billboard
Product Details
| Pixel Pitches: | 15-50mm | Brightness: | 4000-8000CD/Sqm |
|---|---|---|---|
| Viewing Distance: | 15-200m | LED Module Size: | Strip 10*1500mm |
| Power Supply: | Input AC220V, Output DC5V | Product Name: | LED Curtain Display |
| Structure: | LED Mesh Cabinet | Unit: | LED Bar Module |
| Viewing Angle: | 140(H)/140(V) | Reflash Rate: | No Less Than 1920Hz |
| Highlight |
street led screen,outdoor waterproof led advertising panels |
||
Product Description
High Quality Outdoor Commercial Advertising LED Display with DIP P15.625 P25 Mesh Screen Sign Billboard Video Wall11-BOC.pdf
Product Details
Key Feature
1.High transparency rate
80% transparency rate without affecting day-lighting. No need other heat dissipation system.
2. Fast installation
Fast lock systems ensure fast installation and saving time and labor cost.
3.Light weight
PCB board is only 10mm thickness, light weight, and does not occupy space, without changing the appearance and structure of the building.
4.Easy maintenance
Repairing single SMD without taking of single module of entire panel.
5. High brightness and energy saving
5-8000nits brightness ensure the perfect visual performance even under direct sunlight .without and cooling system .saves lots of power.

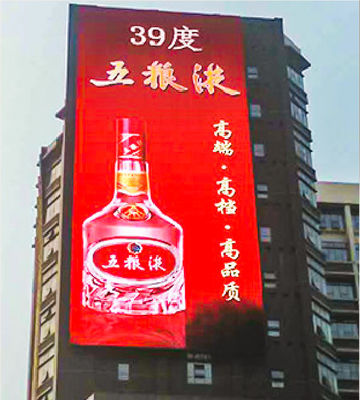

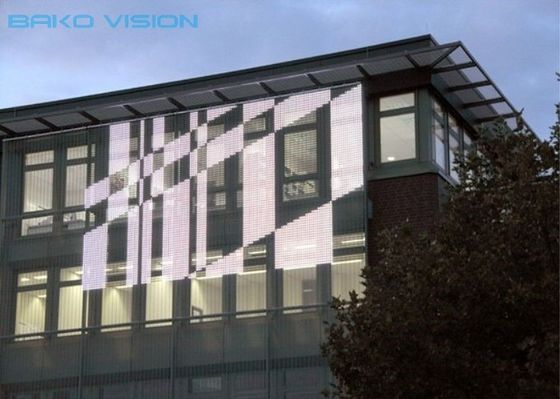

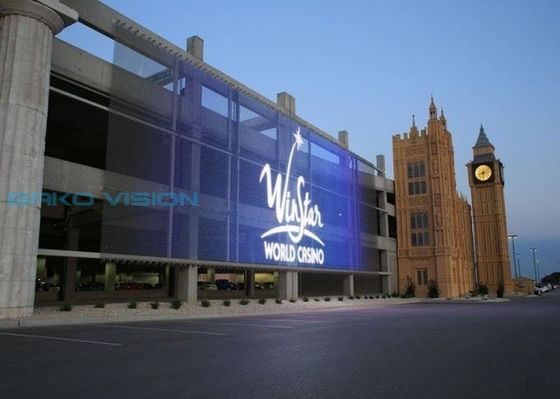

Curtain LED Display Cases:
Curtain LED Display Parameters:
| Pixel Pitch | 25mm | 31.2/25mm | 41.6/25mm | 50/25mm |
| DIP Size | DIP346 | DIP346 | DIP346 | DIP346 |
| Pixel Configuration | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Module Size | 10mm*1500mm | 10mm*1500mm | 10mm*1500mm | 10mm*1500mm |
| Module Resolution | 1*60 | 1*60 | 1*60 | 1*60 |
| Module Power Consumption | 18W | 18W | 18W | 18W |
| Density | 1600dots/m2 | 1280dots/m2 | 960dots/m2 | 800dots/m2 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Module Size | 500*1500*83 | 500*1500*83 | 500*1500*83 | 500*1500*83 |
| Panel Weight | 9KG | 8.5KG | 8KG | 7.5KG |
| Hanging Installation | YES | YES | YES | YES |
| Best Viewing Distance | >25m | >25m | >25m | >25m |
| Panel Max Power Consumption | 360W | 340W | 300W | 200W |
Product Description
1.DIP design for Low Energy Consumption
The product's natural cooling performance is capable of reaching the cooling requirements even in the case of high-brightness displaying, without any auxiliary cooling equipment, and the energy-saving rate can reach up to 60% or more, compared with the conventional cabinet-based LED display, saving your operating costs, and responding to the government's calls in energy saving and emission reduction, low-carbon and environmental protection.
2.Lightweight, Easy to Install and Construct
Its weight is 65% lighter than conventional cabinet-based LED display, greatly reducing both the load-bearing requirements of the steelwork as well as the cost of auxiliary steelwork, and is also very convenient in its installation, construction and transportation.
3.High Transparency, to Minimize the Impact on Buildings
The transparency rate is 70% (For customized series, it can reach up to 80%), and it doesn't affect internal natural lighting and viewing, and minimizes the negative impact on appearance of buildings.
4.High Standard Processing for Long-Term Outdoor Use
It is shown from the detecting data by the third-party testing institutes: the protection level can reach up to IP67, and the product is applicable to any rainy weather; its structural parts' surface is specially coated, with good moisture resistance and corrosion resistance; its electronic circuits adopt the Three-Prevention technology to further ensure its anti-dust, anti-moisture, and anti-corrosion performances, and the product features a strong weather resistance, and can be used in various harsh outdoor environments in long-term.
5.Front Maintenance and Back Maintenance are Both Available, to Save 60% Space
Front maintenance and back maintenance are both available, and back maintenance channel is dispensable. The entire thickness of display can be thin to the greatest extent and save 60% Space.
Why choose us?
(1) More than 10 years experience in R&D & Manufacturing & Selling LED displays.
(2) Reliable quality
(3) Competitive price
(4) Easy to use and maintenance
(5) High gray level and refresh rate, vivid image and video.
(6) 2-5 years warranty
How to choose an LED display?
The application of LED displays have these:
Outdoor commercial advertising billboard, Stage, Banks, Stock exchange centers, Bus station, Theme park, Airport, Schools, Government agencies, Exhibition, Meeting rooms, Cinemas, Hotels, Mobile media, and a variety of public facilities and etc.
So, the first information that you need to tell us is that Where and How will you install your led display, if there are some pictures of your installation will be better.
How to buy an LED display?
Before you buying a LED display, you should tell us these informations:
(1) What is the approximate size of your LED display?
Width * Height * Thickness, at least the W*H.
(2) How will be the working environment of your LED display?
Indoor or Outdoor? Does it need waterproof function?
(3) For fixed or rental installation?
If you have some pictures of the installation will be more appreciate.
(4) If it is a LED display with customized special shape,
Please give us the drawing of the customized display with dimensions , DWG & JPG & PDF are ok.
