Product Details:
Payment & Shipping Terms:
|
| Module Quantity/Panel: | 4PCS | Pixel Density/Module: | 1152 Dots |
|---|---|---|---|
| Panel Dimension: | 1000 X 500mm | Panel Resolution: | 192 X 48 |
| Brightness: | 5500CD/M2 | Viewing Angle: | 140(H), 120(V) |
| Screen Dimension: | Customized | Tube Chip Color: | Full Color |
| Usage: | Outdoor | Display Function: | Video,Graphics,Animation,pictures,text |
| Pixels: | 10mm | Warranty: | 2 Years |
| Life Span: | 100000hours | Application: | Live Events Led Display,Outdoor,outdoor Building Surface |
| Color: | RGB | Refresh Rate: | 1920Hz |
| Pixel Pitch: | 10mm | Viewing Angle: | 140 Degree /140 Degree |
| High Light: | clear led screen,see through led screens |
||
High Brightness Billboard P10 Outdoor Transparent LED Display Screen for Glass Video Wall14-BG-Tia.pdf
Outdoor transparent led display features:
High guarantee for waterproof ability.
Highbrightness for outdoor daytime use.
Perferct choice for Mall/Skyscraper outdoor window advertising tool!

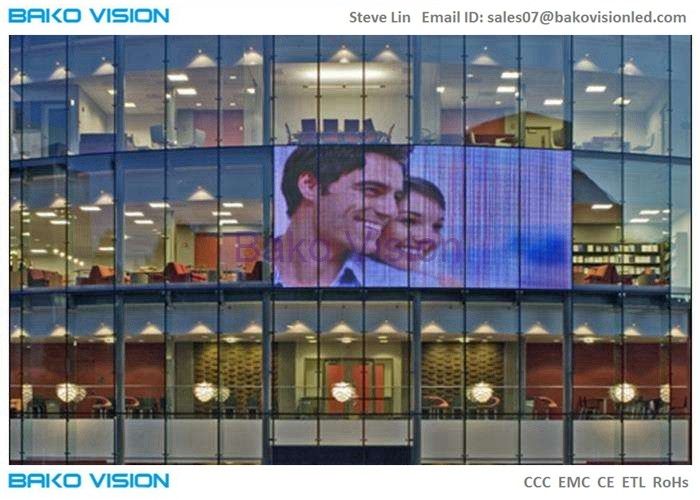

Outdoor transparent led display case and workshop:
Outdoor transparent led display specification:
| Model | P-10.42 |
| Pixel Pitch | 10.42mm |
| Scan Method | 1/2 scan |
| Driving IC | MY9866 QFN |
| Module Dimension | 500x250mm |
| Module Resolution | 48x24 |
| Pixel Density/Module | 1152Dots |
| Panel Dimension | 1000x500mm |
| Panel Resolution | 96×48 |
| Module Quantity/Panel | 4pcs |
| Pixel Density | 9,216 Dots/M2 |
| Material | Die-casting Aluminum |
| Single Panel Weight | 8KG |
| Brightness | 5500cd/M2 |
| Viewing Angle | 140°(H), 120°(V) |
| Best Viewing Distance | ≥10m |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Refresh Rate | ≥3840Hz |
| refresh frame frequency | 60Hz |
| IP Rating | IP65 |
| Input Voltage | AC220V/50Hz ; AC110V/60Hz |
Our advantage:
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: all products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Warranty: we guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
