Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 1.75mm | Pixel Configuration: | 1G1R1B |
|---|---|---|---|
| Module Size: | 280*210 | Module Resolution: | 160*120 |
| Module Array: | 9*2 | Screen Resolution: | 345,600 Pixels/set |
| Scan Mode: | 1/40 | Brightness: | 1000cd |
| High Light: | led poster screen,mirror led display |
||
WIFI Control Indoor Led Commercial Poster Display Panel Advertising Digital Signage LED Screen 15-BP-Tia.pdf
1. Slim Indoor Advertising LED Poster Product Features
Perfect for retail, events, exhibitions and concerts reception etc

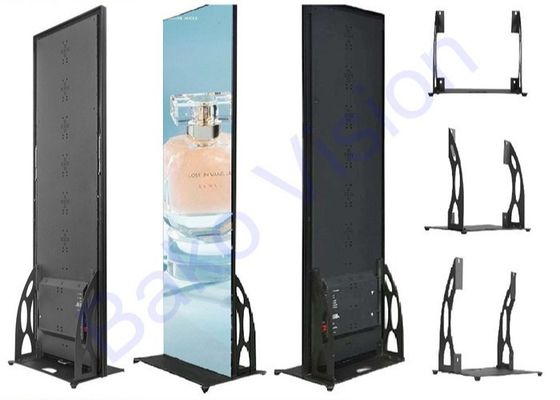

Offer base or base with wheels for easy transportation & installation
Support ethernet/WiFi/USB control via computer/phone
Plug & Play Solution with USB flash drive

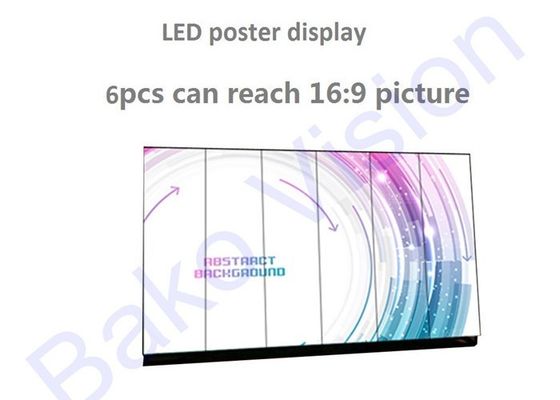

6PCS for16:9 Golden Ratio Screen
10PCS for HD 1080P Screen
2. Portable LED Poster Display Product Parameters
| 1 | Pixel Configuration | 1G1R1B (SMD1010) |
| 2 | Pixel Pitch | 1.75mm |
| 3 | Module Size | 280mm*210mm |
| 4 | Module Resolution | 160X120 |
| 5 | Module Array | 9x2 |
| 6 | LED Capsulation | Nationstar |
| 7 | Screen Resolution | 345600 pixels/set |
| 8 | Max Brightness | ≥1000cd/m2 |
| 9 | Grey Scale | 16bits |
| 10 | Colors | 281 trillion |
| 11 | Defective Dots | ≤0.0001 |
| 12 | Best Viewing Distance | ≥2M |
| 13 | Viewing Angle | Horizontal:≥160° Vertical≥160° |
| 14 | Scan Mode | 1/40 |
| 15 | Brightness Control | Manual 256 level & Auto. 8 level |
| 16 | Frame-Changing Frequency | ≥60HZ |
| 17 | Fresh Rate | ≥3960HZ |
| 18 | Control | Phone App/ WIFI |
| 19 | Input | HDMI, SDI, S-Videom, MP4 |
| 20 | Lifespan | ≥80,000hrs |
| 21 | Working Duration at One Time | >72hrs |
| 22 | IP Rate | IP40 |
| 23 | Working Voltage | AC 240/100 ± 10%,50Hz/60Hz |
| 24 | Working Temperature/Humidity | Temperature:-20ºC~+60ºC,Humidity:10%-60% |
| 25 | Consumption(Max/Avg) | 500W/m2 ,150W/m2 |
| 26 | Maintenance | Back Maintenance |
| 27 | Weight | ≤27KG/m2 |
| 28 | Screen Size | 1920mmx570mmx33mm |
3. FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2. How about the delivery time?
A: Normally, the time will be 25 working days more or less.
Q3: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q4: Do you offer guarantee for the led display products?
A: Yes, we offer two-five year warranty for our products.
4. Slim Wifi Control Indoor LED Poster Panel Package
