P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display

P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display
P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display

Large Image :  P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display

Product Details:

Place of Origin: CHINA
Brand Name: BAKO
Certification: CE, ETL, CCC, FCC, TUV
Model Number: BS

Payment & Shipping Terms:

Minimum Order Quantity: 1sqm
Packaging Details: Wooden case/ Flight case
Delivery Time: Within 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 6000sqm/month
Detailed Product Description
Pixel Configuration: SMD 2121 Moule Dimensions (W*H)(mm): 240*120
Panel Dimensions (W*H) (mm): Customized Weight: 8.2 Kg/M²
Colours: 281 Trillion Servicing: Front
Brightness: >1,500 Nits Refresh Rate: >1,920 Hz
High Light:

flexible led curtain display

,

soft led screen

P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display



Main Description



Soft led display Panel Features:
soft led module is super thin, very light weight and most flexible to design shapes, effects, in any types, arc in any angles. With repeating curving,

it won't break LEDs as well design of mask covers.


1,Soft module, really flexible--Extremely flexible:Could be made as any creative shapes for any installation site as you can imaging. For example, It can be made into cylinder-shape, S-shape, wave-shape by connecting the modules and fixed frame or cabinet.

2, High gray level high refresh rate design: gray level can be achieved 10-16bit, refresh frequency can be done 400-1500Hz, so that the LED display in the image without delay, smear phenomenon.

3,Superior Consistency Coupled with Low Brightness and High Gray: Adopt high quality black LED lamp with black cover. The contrast can be as high as 3000:1. Pictures are fine and clear with vivid color.

4.High brightness, and can be adjustable, meets the needs of customer's requirements.



Specification



  BS-2.5
Physical Pitch 2.5mm
Pixel Configuration SMD2121
Pixel Density 160,000 pixels/m²
Module Dimensions(W*H)(mm) 240*120
Panel Dimensions(mm) Customized
Physical Resolution of Module(W*H) 96*48
Weight 8.2kg/m²
Colors 281 trillion
Refresh rate >1920 Hz
Brightness >1000 nits
Processing 16 bit
Contrast Ratio 4000:1
IP Rating IP40
Viewing Angle H:160°/ V: 140°
Expected Lifetime 100,000Hrs
Operating Temp/Humidity                                -20ºC-60ºC/10%-90%
Storage Temp/Humidity                                 -40ºC-80ºC/10%-90%
Scan Method 1/40
Avg./ Max. Power Consumption 9W/12W


About our Product

P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display 0

Strict quality control and long-term application experience verified the stablity and excellent performance by using Nation star LED, and MBI 5124 Driving IC for high refresh rate and performance.

Firm Structure
The use of advanced SMT technology reduced the bad solder and static issue significantly clean, exquisite and high color reproduction effect for video and text.

Adjustable Brightness

Using specialized technology and device, hardware or software to realize adjustment of brightness without losing gray scale and signal quality


 P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display 1



Advanced control system: Prefer adopting advanced and stable Nova Star control system, with the best led display control system, the most advanced pixel-level led display calibration system and the most professional software for specialized applications.



Application

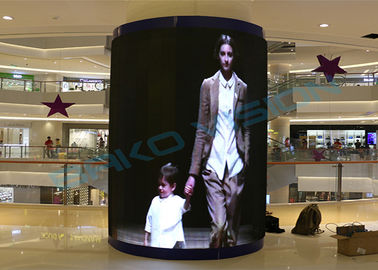

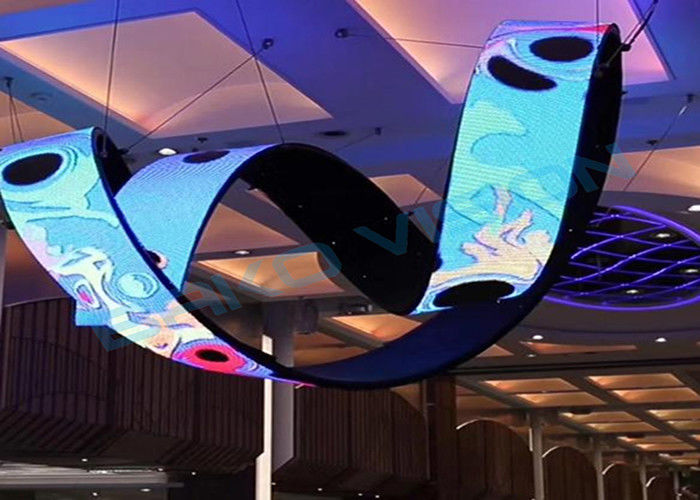

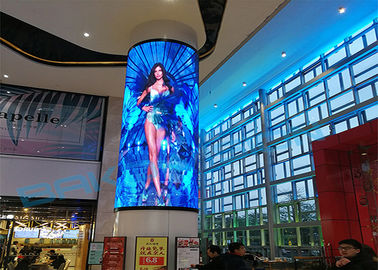

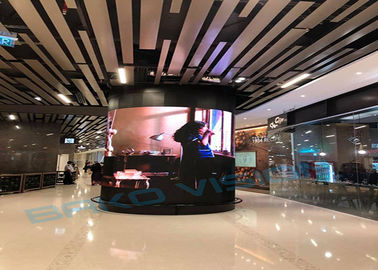

It can be applied to Stage Rental, DJ touring,Trade and Reception Hall, KTV, Exhibition Hall, Gymnasium, Airport Waiting Hall, Hotels, Large Open Spaces, Railway Stations, Sea Ports, Shopping Malls, Bars and other palace.

P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display 2
Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
P2.5mm Flexible LED Screen SMD Module Mbi5124 Driving IC LED Video Display 3

FAQ

Q1: How to help client choose suitable display?
A1: (1)display content

(2)visible distance,visual angle
(3)requirements of cabinet resolution

(4)installation environment
(5)cost control

Q2:What's the warranty of your LED Display ?
A2: 2-5 years warranty .and 100,000hrs life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are ready for your question during 6:00-23:30.


Q3: What's your payment term? How long is your delivery time ?
A3: We accept T/T ,L/C,Paypal ,Western Union ,Money Gram, and Cash .At least 30-50 % deposit in advance, and the balance should be paid before delivery.Our average Production time is 7-15 working days after receiving the deposit.If your order is rapidly urgent ,we can arrange your order firstly.


Q4:Can you visit our factory in China?
A4:Usually except our staff,other persons are not allowed to visit the factory,as you know it is not good for workers to produce intently.But,of course,our factory is open to our customers,very welcome to visit us,and the person who is responsible will guide you to scan the workshop every step,you will know the rough producing situation,then you will be trustfull to us.Business is long time cooperation.Trust is the most important between each other.I think we can not only do business together,but also can be good friends.The future is belonging to both of you and us.
