Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module

China Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module supplier
Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module supplier Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module supplier Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module supplier Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module supplier

Large Image :  Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module

Product Details:

Place of Origin: CHINA
Brand Name: BAKO VISION
Certification: CCC, CE, FCC, ETL
Model Number: BDF

Payment & Shipping Terms:

Minimum Order Quantity: 1 Sqm
Price: $399~999
Packaging Details: Plywood Case/ Flight Case
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,00 sqm / month
Contact Now
Detailed Product Description
Pixel Configuration: SMD 2727 Optional Models: Outdoor P5,P6.67,P8,P10
Panel Material: Aluminum Panel Dimensions (mm): 1024*768
Gray Scale (mm): 16bit Tickness: 100mm
Refresh Rate: >1920 Hz Single Cabinet Weight: 35 Kg
High Light:

roadside led display

,

street led screen

P10 HD Commercial IP65 High Definition LED Module, LED Video Wall Screen



Features and Technical Specification:



Applications: Outdoor all-weather environment and rental use. High brightness, high protection rating and high stability, suitable for close viewing and small size application.



1.Multiple waterproof casing design, single box full inspection factory, the protection level IP65 mature signal transmission architecture, equipped with the upgraded version of power management technology, the use of more secure and reliable.

2. Clear vivid image quality: Even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.



3. Easy maintenance also can ease the pressure on labor cost. Our product supports front service. Just seconds to remove the module and put on the new one is OK. Every place of our product is electronic isolated, which can ensure the security of the workers.

4. Long-term Brightness: 7500-nit brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.

Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 0




Specifications



  BDF-5 BDF-6 BDF-8 BDF-10
Physical Pitch 5.33mm 6.4mm 8mm 10mm
Pixel Configuration SMD 1921 SMD 2727 SMD2727 SMD3535
Pixel Density 35,200 pixels/m² 24,414 pixels/m² 15,625 pixels/m² 8800 pixels/m²
Module Dimensions(W*H)(mm) 512*256
Panel Dimensions(mm) 1024*768*100
NO. of Modules Per Panel (W*H) 2*3
Panel Material Aluminum
Colors 281 trillion
Weight (kg/m²) 35kg
Processing 16 bit
Refresh Rate >1920 Hz
IP Rating IP65/ 54
Viewing Angle V:160 degree
H: 140 degree
Expected Lifetime 100,000 Hrs
Operating Temp/Humidity -20ºC-50ºC/
10%-90%
Storage Temp/Humidity -20ºC-50ºC/
10%-90%
Physical Resolution of Module(W*H)(mm) 96*48 48*48 32*32 32*32
Physical Resolution of panel(W*H)(mm) 192*144 192*144 160*96 128*96
Avg./ Max. Power Consumption 360/900W/ panel
Servicing Front/Rear


About Product



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 1



Die Casting, One Chassis,Variable Pitch Options

1. Lightweight Large Format, Slim and Smart

2. Ideal substitution for Traditional Cabinet

3. I/O advertising billboardas



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 2

Good heat dissipation

No matter for cabinet or for module frames, they are both die-casting aluminum, making sure of good heat dissipation. So screen can still work well in high temperature.



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 3



Smart and Variable

1. One standard chassis 1024mmx768mm, covering pitches from 2.6mm to 10.6mm

2. Suitable brightness adjustable for outdoor day and night

3. Deep black levels, contrast ratio 4000:1



Widely viewing angle: V:160 degree, H: 140 degree



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 4


Widely application

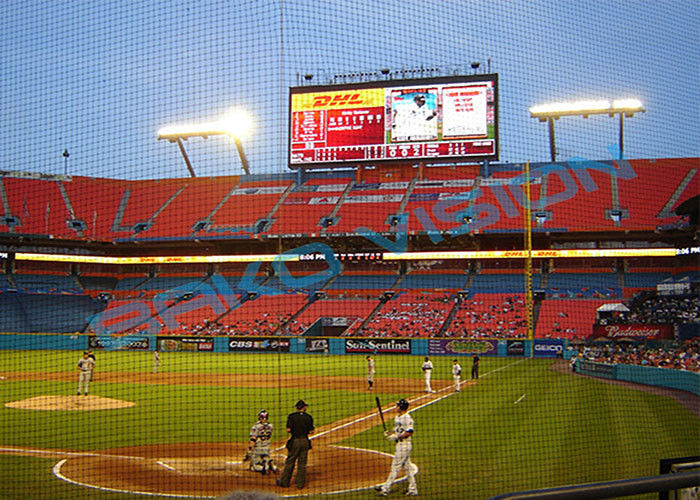

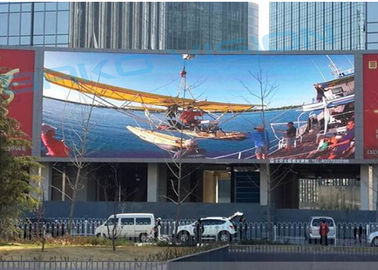

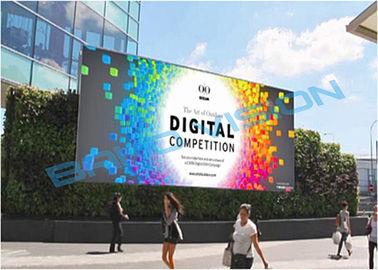

Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 5



About us

Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets.BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.



Aluminum LED Video Wall Screen P10 HD Commercial IP65 High Definition LED Module 6



Our Service

1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.

7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
