| Pixel Configuration: | SMD 1921 | Optional Models: | Outdoor P5,P6.67,P8,P10 |
|---|---|---|---|
| Panel Material: | Aluminum | Panel Dimensions (mm): | 1024*768 |
| Gray Scale (mm): | 16bit | Tickness: | 100mm |
| Refresh Rate: | >1920 Hz | Single Cabinet Weight: | 35 Kg |
| High Light: | roadside led display,street led screen |
||
P5mm Outdoor Led display Die Casting Aluminum 1024X768mm Advertising Billboardas
Product Features
Specifications
| BDF-5 | BDF-6 | BDF-8 | BDF-10 | |
| Physical Pitch | 5.33mm | 6.4mm | 8mm | 10mm |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD2727 | SMD3535 |
| Pixel Density | 35,200 pixels/m² | 24,414 pixels/m² | 15,625 pixels/m² | 8800 pixels/m² |
| Module Dimensions(W*H)(mm) | 512*256 | |||
| Panel Dimensions(mm) | 1024*768*100 | |||
| NO. of Modules Per Panel (W*H) | 2*3 | |||
| Panel Material | Aluminum | |||
| Colors | 281 trillion | |||
| Weight (kg/m²) | 35kg | |||
| Processing | 16 bit | |||
| Refresh Rate | >1920 Hz | |||
| IP Rating | IP65/ 54 | |||
| Viewing Angle | V:160 degree H: 140 degree |
|||
| Expected Lifetime | 100,000 Hrs | |||
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
|||
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
|||
| Physical Resolution of Module(W*H)(mm) | 96*48 | 48*48 | 32*32 | 32*32 |
| Physical Resolution of panel(W*H)(mm) | 192*144 | 192*144 | 160*96 | 128*96 |
| Avg./ Max. Power Consumption | 360/900W/ panel | |||
| Servicing | Front/Rear | |||
About Product
Fast lock system design guarantees a quick and easy installation
Front and rear accessible
Slim, Light Weight and Quiet
Die casting cabinet, 27-32kg per cabinet
100mm thickness
Fanless design
Versatile Dual Purpose Design
1. Cabinet can be reclined between 0-30 degree to ensure the best angle for audience and camera
2. Adding with ground adjustable bracket and protection foam bumper can be transformed to be perimeter display.
Widely application

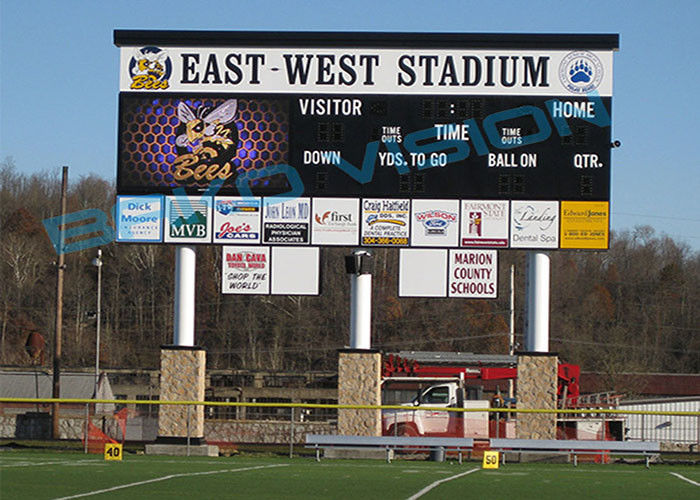

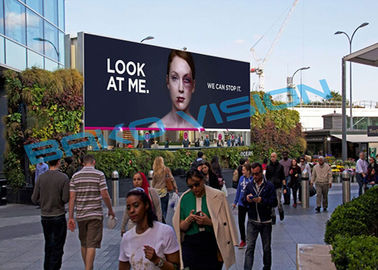

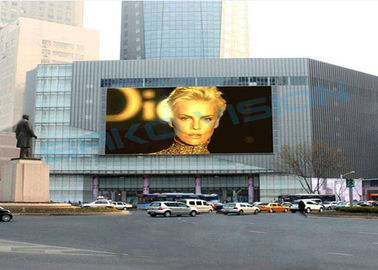

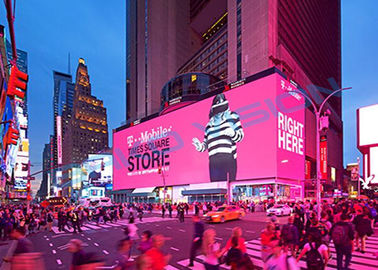

Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank & stock exchange LED display for rates showing, train & bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
About us
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets.BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
FAQ
1. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
2. How could I buy the products I need if there is no price in the website and could I get some samples first?
A: You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.We welcome sample order to test and check quantity.
3. What is a custom LED display?
Custom LED displays can be designed to meet the needs of the user, taking into account all of the above for easy maintenance. Of course, maintenance can help to increase the service life of any electronic device, and measures are taken during the production process, so that maintenance costs are greatly reduced.
A custom LED display, as the name suggests, can control anything with any message you can think of. They are used in almost all industries, such as factories, banks, airports, universities, libraries, etc.
Custom LED displays are mounted on the wall or suspended from any ceiling for broadcasting information viewed from any distance. In addition, the brightness of these custom LED displays can be displayed very clearly at any distance.
