Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91

Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91
Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91

Large Image :  Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91

Product Details:

Place of Origin: CHina
Brand Name: Bako Vision
Certification: CE TUV RoHs
Model Number: BOR-II

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Packaging Details: Flight case /Woodne case
Delivery Time: 20 days
Payment Terms: T/T, D/P, L/C, D/A
Supply Ability: 6000sqm/month
Detailed Product Description
Product: P3.91 Indoor Rental Floor Screen Material: Die-casting Aluminum
IP Rating: IP 65 Refresh Rate: 1920Hz
Cabinet Dimension: 500x500mm, 500x1000mm Pixel Configuration: SMD1921
Brightness: 4000 CD/sqm Service: Front / Rear Service
High Light:

stage background led screen

,

concert led screen

IP65 waterproof P3.91 indoor outdoor usage interactive LED dance floor screen

17-BD.pdf

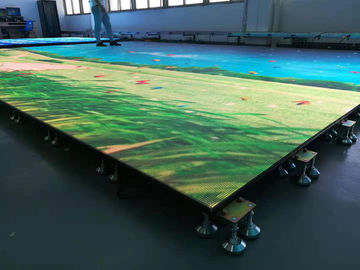

LED Dance Floor,
Height Adjustable


Quick and Easy Installation
Ultra Wide Viewing Angle
Adapt to Multifarious Ground
IP65 Waterproof



Outdoor Rental LED Display Features:

Standard Modular Design
Standard module design :250mm x 250mm
Seamless connection

PC material mask with highly scratch-resistant




High Bearing Capacity
Bearing capacity uo tp 1.8 tons per square meter

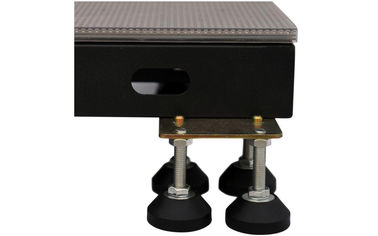

Height adjustable, adapt to multifarious ground



Easy and Fast Installation
Cable-less between modules
Tools free installation
Easy maintencance after cabinets assembled



Unsurpassed Color Uniformity
Interactive system with inductor built-in
Quick response within 0.02s



Outdoor Rental LED Display Specifications:

  BD-3
Physical Pitch 3.91mm
Pixel Configuration SMD 1921
Pixel Density 65,536 pixels/m²
Module Dimensions (W × H) (mm) 250 × 250
Panel Dimensions (mm) 500 × 1000
NO.of Modules Per Panel (W × H) 2 × 4
Physical Resolution of Module (W × H)  64 x 128
Physical Resolution of Panel (W × H) 128 × 256
Panel Material Die-Casting Aluminum
Single Cabinet Weight 20 kg / panel
Gray Scale 16 bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 300 W / m²
Max Power Consumption 600 W / m²
Operating Temp/Humidity -10ºC- 60ºC / 10% - 60%
Storage Temp/Humidity -30ºC - 60ºC / 10% - 60%
Refresh Rate >1,920Hz
Brightness ≥2,500 nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Expected Lifetime 100, 000 Hrs
Best Viewing Distance 4m-60m
Servicing Front
IP Rating (Front/Rear) IP 65
Scan Method 1/16 Scan



Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91 0

Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91 1

Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91 2

Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91 3

Stage LED Display IP65 Waterproof Interactive LED Dance Floor Screen P3.91 4
