P3.75-P8 Window Transparent LED Screens Digital Media Panel Board High Brightness
Product Details
| Panel Dimensions (Wxh)(mm): | 1000*500 | Pixel Configuration: | SMD1921 |
|---|---|---|---|
| Viewing Angle: | V:140 Degree / H: 160 Degree | Operating Temp/ Humidity: | -30ºC-60ºC/10%-90% |
| Average Power: | 240W/M² | Driving IC: | MY9866 QFN |
| Transparency: | 60%-80% | Single Panel Weight: | 8.5KG |
| Input Voltage: | AC220V/50Hz ; AC110V/60Hz | Brightness: | 5500cd/m² |
| Highlight |
transparent glass led display,see through led screens |
||
Product Description
P3.75-P8 Window Video Wall Indoor Digital Media Transparent Screen Panel Board
Description

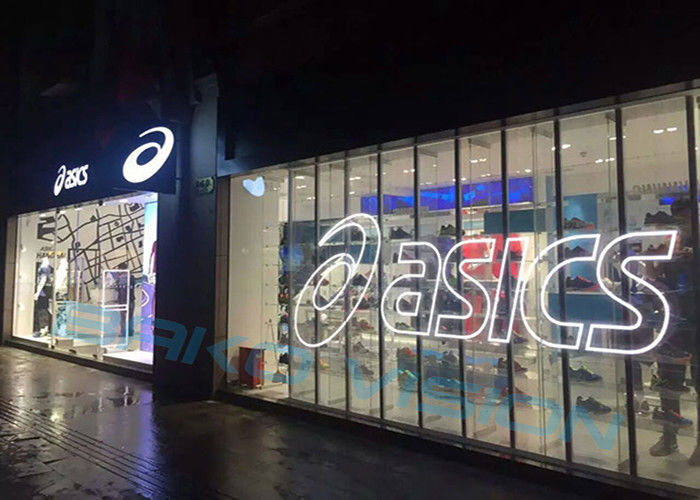

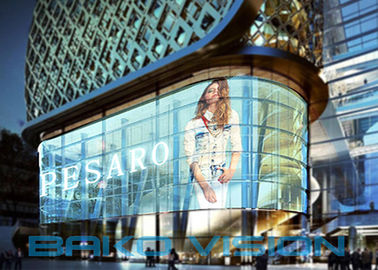

Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.
Video wall produce Features
1.High Adaptability
Resistant to bad environment such as low temperature, high temperature and moist condition.
2.High Transparency
With transparency of 20% to 80% , making the glass wall screen into vivid video wall, audience could get perfect video effect through the screen.
3. High Brightness, Better Quality
The high brightness and high definition features of the Transparent LED Screen ensures great quality pictures - making it a perfect fit for stage, banks, glass wall, promotion, station, stadium and other indoor places.
4.Super-wide view angle
140°view angle and consistent display effect at multi direction , no mosaic phenomenon.
5. Integrated Design, Fast Installation
The thin size and ultra-lightweight modules makes it easy to carry, transport and install. You hardly need any specialized tools or skills to install it. Everything is inbuilt, and it can be installed within a few minutes using simple screw-driver.
Specifications
| BG-2.5-7.8 | BG-3.9-7.8 | BG-5-8 | BG-10 | |
| Physical Pitch | 2.5x7.8mm | 3.9x7.8mm | 5x8mm | 10.4x10.4mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density | 50,688pixels/m² | 32,256pixels/m² | 25,000pixels/m² | 9216pixels/m² |
| Module Dimensions(W*H)(mm) | 500x125 | 500x125 | 480x320 | 500x125 |
| Panel Dimensions(mm) | 1000x500 | 1000x500 | 960x640 | 1000x500 |
| Physical Resolution of Module(W*H) | 200x16 | 128x16 | 96x40 | 48x12 |
| Physical Resolution of Panel(W*H) | 400x64 | 256x64 | 192x80 | 96x48 |
| Weight(kg/m²) | <14kg/m² | <14kg/m² | <14kg/m² | <14kg/m² |
| Colors | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Contrast Ratio | 2000:1 | 2000:1/ | 2000:1 | 2000:1 |
| IP Rating | IP30 | IP30 | IP30 | IP30 |
| Viewing Angle | H:160°,V:140° | H:160°,V:140° | H:160°,V:140° | H:160°,V:140° |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Expected Lifetime | 100,000Hrs | 100,000Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Servicing | Rear | Rear | Rear | Rear |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Avg/Max. Power Consumption | 240/700W/m² | 180 /560 W/m² | 203/670 W/m² | 140/400W/m² |
| Brightness | 1000-4200 nits | 1000-4200 nits | >5,000 nits | 1000-4200 nits |
| Scan | 1/11 | 1/7 | 1/6 | 1/2 or 1/4 |
Product Details
Front Maintenance
Can be fully achieved the front maintenance
Installation and disassembly.
Fast lock systems ensure fast installation,
Saving cost.
Good flat and stable quanlity
Flat: Good flat for elegant looking.
Produce line
Application

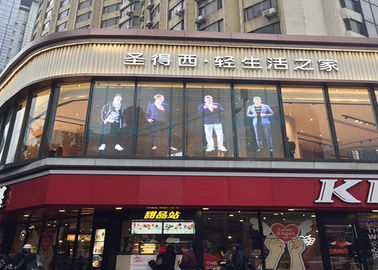

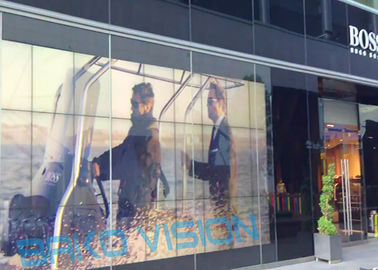

Widely use bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service.
