Product Details:
Payment & Shipping Terms:
|
| Product: | P3.91 Indoor Rental Floor Screen | Material: | Die-casting Aluminum |
|---|---|---|---|
| IP Rating: | IP 65 | Refresh Rate: | 1920Hz |
| Cabinet Dimension: | 500x500mm, 500x1000mm | Pixel Configuration: | SMD1921 |
| Brightness: | 4000 CD/sqm | Service: | Front / Rear Service |
| High Light: | stage background led screen,concert led screen |
||
Floor screen available P3.91 IP65 waterproof stage rental LED screen
One Chassis,
Various Module Options
TUV Certificated and Reddot Awarded Cabinet 500mmx500mm or 500mmx1000mm High Definition Indoor Display
Curvilinear, Concave, Convex
Available in 2.6mm, 2.97mm, 3.91mm, 4.81mm pixel pitches for indoor rental
Outdoor Rental LED Display Features:
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
User Friendly and Fast Installation
Truss hanging adn ground support both available
Fast lock and hadle design user friendly for single person work
Front and rear access
Tools free installation

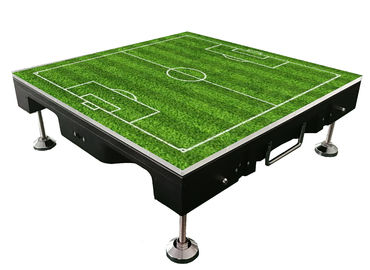

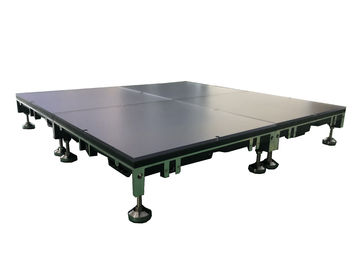

Floor Screen Available

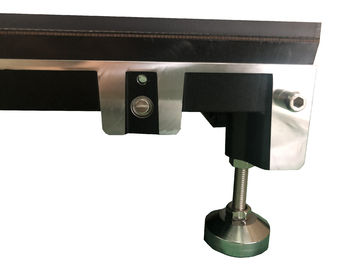

Durable PC mask and adjustable foot bracket are ready
Interactive effect and radar integration are optional
Smart Concave and Conves
Both 500mmx500mm or 500mmx1000mm cabinets are arc-able
0°-10°concave and convex degree available
Outdoor Rental LED Display Specifications:
| BIR-II-2X | BIR-II-2 | BIR--3 | BIR--4 |
| Physical Pitch | 2.6mm | 2.97 mm | 3.91 mm | 4.81 mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 | 500 × 500 × 80 / 500 × 1000 × 80 |
| NO.of Modules Per Panel (W × H) | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 | 2 × 2 / 2 × 4 |
| Physical Resolution of Module (W × H) | 96 × 96 | 84 × 84 | 64 × 64 | 52 × 52 |
| Physical Resolution of Panel (W × H) | 192 × 192 / 192 × 384 | 168 × 168 / 168 × 336 | 128 × 128 / 128 × 256 | 104 × 104 / 104 × 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 8 / 14 kg / panel | 8 / 14 kg / panel | 8 / 14 kg / panel | 8 / 14 kg / panel |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 400 W / m² | 400 W / m² | 325 W / m² | 310 W / m² |
| Max Power Consumption | 800 W / m² | 800 W / m² | 780 W / m² | 750 W / m² |
| Operating Temp/Humidity | -10ºC- 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% | -10ºC- 60ºC / 10% - 60% | -10ºC - 60ºC / 10% - 60% |
| Storage Temp/Humidity | -30ºC - 60ºC / 10% - 60% | -30ºC- 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% | -30ºC - 60ºC / 10% - 60% |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | ≥1,200 nits | ≥1,200 nits | ≥1,200 nits | ≥1,200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20 / 10 | 20 / 10 | 20 / 10 | 20 / 10 |
| Max Hanging | 20 / 10 | 20 / 10 | 20 / 10 | 20 / 10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/13 Scan |
