|Panel Size:||500 X 1000mm||Physical Pitch:||P3.91, P5.2, P6.25, P8.9|
|Contrast Ratio:||4000 : 1||Brightness:||2000nits - 4500nits|
|IP Rating:||IP65||Weight:||20 Kg/panel|
front maintenance led display,
outdoor full color led screen

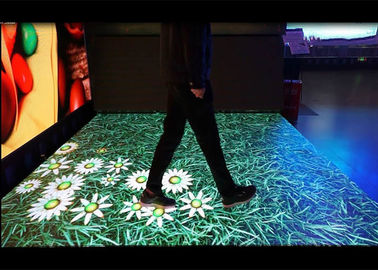

Active LED Dancing Floor Interactive Screen IP65 Waterproof Front Service
1. High Load Bearing Performance (1.8 tons/sqm)
Through the professional structural design, the high load-bearing performance of the screen is ensured, and the impact resistance is strong; after testing: the weight per square meter can bear 1.8tons, even if the car can be safely driven on the product.
2. Interactive Effect
Interactive system with inductor built in,quick response within 0.02s.
3. Standard Modular Design
Standard module design: 250mmx250mm, PC meterial mask with highly scratch-resistant.
4. Easy and Fast Installation
Tools free installation, easy maintenance after cabinets assembled.
|Physical Pitch||3.91 mm||5.2 mm||6.25 mm||8.928 mm|
|Pixel Configuration||SMD 1921||SMD 1921||SMD 2727||SMD 3528|
|Pixel Density||65,536 pixels/m²||36,864 pixels/m²||25,600 pixels/m²||25,600 pixels/m²|
|Module Dimensions (W × H) (mm)||250 × 250||250 × 250||250 × 250||250 × 250|
|Panel Dimensions (mm)||500 × 1000||500 × 1000||500 × 1000||500 × 1000|
|NO.of Modules Per Panel (W × H)||2 × 4||2 × 4||2 × 4||2 × 4|
|Physical Resolution of Module (W × H)||64 x 64||48 x 48||40 x 40||28 x 28|
|Physical Resolution of Panel (W × H)||128 x 256||96 x 192||80 x 160||56 x 112|
|Single Cabinet Weight||20 kg/panel||25 kg/panel||24 kg/panel||25 kg/panel|
|ray Scale||16 bit||16 bit||16 bit||16 bit|
|Colours||281 trillion||281 trillion||281 trillion||281 trillion|
|Contrast Ratio||4,000 : 1||4,000 : 1||4,000 : 1||4,000 : 1|
|Average Power Consumption||300 W / m²||300 W / m²||300 W / m²||300 W / m²|
|Max Power Consumption||880 W / m²||880 W / m²||880 W / m²||880 W / m²|
|Operating Temp/Humidity||-10℃-60℃ / 10%-60%||-10℃-60℃ / 10%-60%||-10℃-60℃ / 10%-60%||-10℃-60℃ / 10%-60%|
|Storage Temp/Humidity||-30℃-60℃ / 10%-60%||-30℃-60℃ / 10%-60%||-30℃-60℃ / 10%-60%||-30℃-60℃ / 10%-60%|
|Refresh Rate||>1,920 Hz||>1,920 Hz||>1,920 Hz||>1,920 Hz|
|Brightness||2,500 nits||2,000 nits||4,500 nits||4,500 nits|
|Horizontal Viewing Angle||160°||160°||160°||160°|
|Vertical Viewing Angle||140°||140°||140°||140°|
|Expected Lifetime||100, 000 Hrs||100, 000 Hrs||100, 000 Hrs||100, 000 Hrs|
|Best Viewing Distance||4m-60m||6m-60m||8m||8m|
|Scan Method||1 / 16 Scan||1 / 6 Scan||1 / 5 Scan||1 / 3 Scan|
|IP Rating||IP 65||IP 65||IP 65||IP 65|
Abou Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long termpartnership with variety channel customers over 120+ countries.
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
