Outdoor HD P6, P8, P10 SMD LED Display for Advertising Sign Video Wall Screens
Product Details
| Pixel Pitch: | 10 Mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Average Power Consumption: | 350 W/m2 | Max Power Consumption: | 600 W/m2 |
| IP Rating: | IP67 | Scanning Mode: | 1/4 Scan |
| Brightness: | 5500-7500 CD/M2 | Module Pixel Resolution: | 40dots*20dots / 32dots*16dots |
| Module Dimension: | 960*960mm /1024*1024mm | Cabinet Size: | 960mm*960mm*175mm |
| Drive Type: | Constant Drive | Package Mode: | SMD 3535 |
| Use Voltage: | AC 90-240V | Controller: | Nova Star /Linsn /Huidu |
| Highlight |
street led screen,outdoor waterproof led advertising panels |
||
Product Description
Outdoor HD P6, P8, P10 SMD LED Display for Advertising Sign Video Wall Screens9-BOF-B-Tia.pdf
Quick Details:
1. SMD led encapsulation confirm wide view distance and good uniformity
2. High brightness, good waterproof IP65, anti-corrosion, anti-rust, long life span>100000hours
3.High pixel density, high resolution and high definition, perfect display vision
4. Lower power consumption, good heat dissipation, low noise created.
5. Cabinet with locks, connectors, easy and quick to assemble without tools in short time
6. Widely used for commercial display, advertising, stage background, mobile display. traffic display,sports led display etc.
| Module Parameter | Item | Specification Parameter |
| Pixel Pitch, Resolution rate, size, weight | 10mm, 32*16 Dots, 320*160mm | |
| Pixel color, Pixel LED | 1R1G1B, SMD3535 | |
| Working voltage, Module Power | DC5V, 48W | |
| Driving IC, Driving way | MBI5124, 1/2S | |
| HUB | QP-HUB75(MRV220)-V1.1 |
Outdoor Fixed Installation LED Display Parameters:
| BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Physical Pitch | 3.2 mm | 4 mm | 5 mm | 6.67 mm | 8 mm |
| Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
| Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
| Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Average Power Consumption | 360 W/m² | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | - | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | - | 230 W/ m² | 230 W/ m² |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |

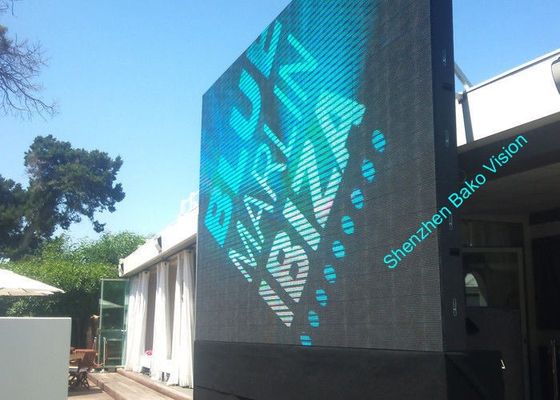

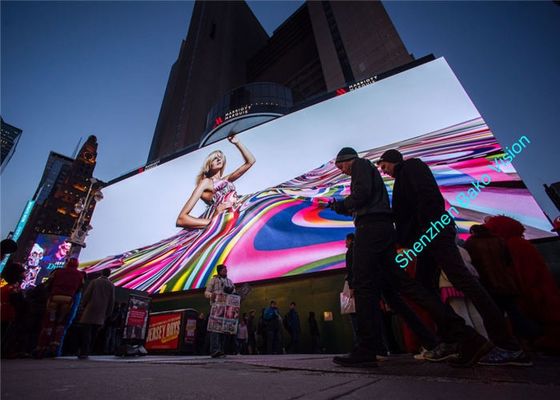

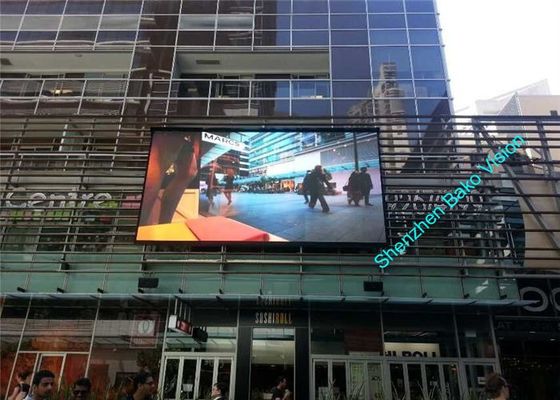

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
Product Advantages:
High refresh rate: With NOVA control system,no scanning line when photographed.
High gray level: 256 RGB each, display 16.7M colors, vivid and perfect video effect.
High resolution: The most apparent features of the new generation of LED display.
Good color uniformity:With brand Lamp Nationstar and high refresh MBI5124 IC.
High Brightness: 6000-8000cd/m2, brightness automatically adjusted.
High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing time.
Long life span: over100,000hours, warranty at least 2 years.
You need = We design: Provide Personal- Customized led display offer.
Price Advantage:
We have the best competitive price at the market, also have the same even better quality
Quality advantage:
From material to finished product, from design to produce, we control all steps,that's the guarantee of the quality and reliability
Service advantage:
Better service at same situation, better cooperation at same service.
Performance Advantage:
Best quality, high consistency, big viewing angle, can repair each led lamps
Other products:
Indoor fixed LED screen: P2.5, P3, P4, P5, P6, P8, P10
Indoor rental LED screen: P3, P3.9, P4, P4.8, P5, P6
Outdoor fixed LED screen: P5, P6, P8, P10
Outdoor rental LED screen: P3.9, P4.8, P5, P6, P6.25, P8, P10
Small pitch LED screen: P1.6, P1.9
Front service maintenance LED screen: P6.67, P8, P10
Stadium perimeter LED screen: P8, P10
LED poster player: P2.5, P3
Packing>>>
For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing
For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing
One wooden case including 2 cabinets, one flight case including 6 cabinets
Shippment>>>
By air or sea, FOB shenzhen
UPS/DHL/FedEx/Express(door to door)and so on
Delivery time>>>
Within 20 days counting from 30% prepayment
Payment term>>>
T/T(30% deposit, the remained 70% payment made before factory shipment )
Western union/paypal/L/C and so on
Quality assurance>>>
We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.
