Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 10 Mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Average Power Consumption: | 350 W/m2 | Max Power Consumption: | 600 W/m2 |
| IP Rating: | IP67 | Scanning Mode: | 1/4 Scan |
| Brightness: | 7500CD/M2 | Module Pixel Resolution: | 32dots*16dots |
| Module Dimension: | 320mm*160mm | Cabinet Size: | 960mm*960mm*175mm |
| Drive Type: | Constant Drive | Package Mode: | SMD 3535 |
| High Light: | roadside led display,outdoor waterproof led advertising panels |
||
7500CD High Brightness and 1920Hz High Refresh P10 (P16 P8 P6) Outdoor LED Billboard Display for Advertising Video Wall Screens9-BOF-B-Tia.pdf
Outdoor Fixed Installation LED Display Parameters:
| BOF-B-3 | BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Physical Pitch | 3.2 mm | 4 mm | 5 mm | 6.67 mm | 8 mm |
| Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
| Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
| Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Average Power Consumption | 360 W/m² | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | - | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | - | 230 W/ m² | 230 W/ m² |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |

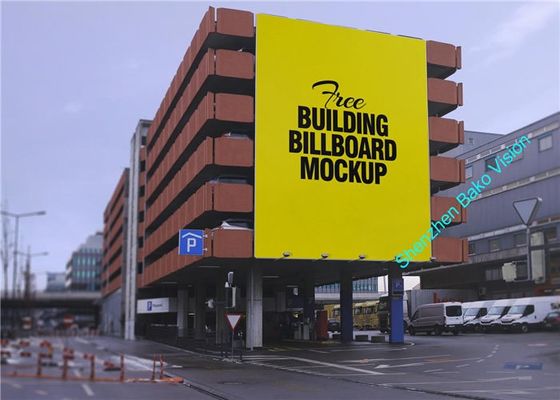

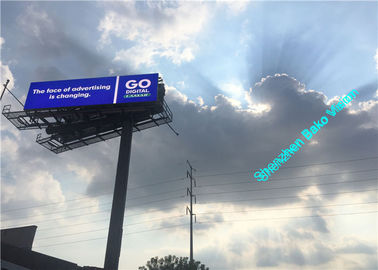

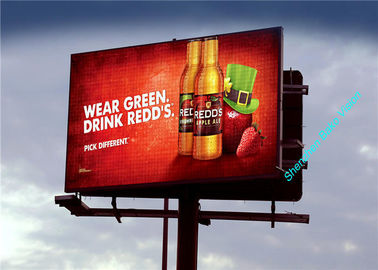

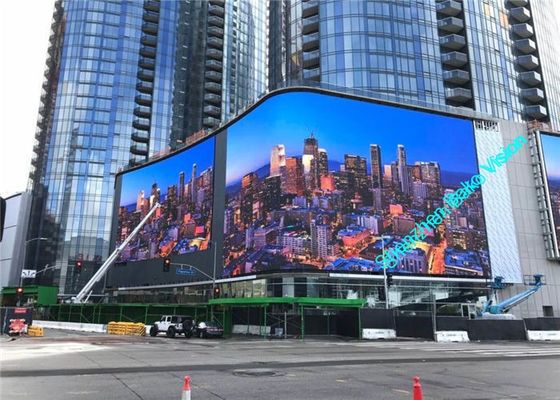

Outdoor Fixed Installation LED Display Cases:
Outdoor Fixed Installation LED Display Features:
1)This cabinet of SMD outdoor led display can serve as large advertising led wall with great visual effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save installation and maintenance cost and also enhance work efficiency.
4)Adopted MBI constant current driver which can make refresh rate up to 1920Hz load with single receiving card in one cabinet. High quality product ensure stable and clear image output.
5)Special waterproof design protect your product out of water, the high quality is worthy of trust.
6)The outdoor SMD led display features NOVA control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.
Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen.
