IP67 Transparent LED Curtain Mesh Billboard Outdoor Building Advertising Screen
Product Details
| Panel Material: | Aluminum | IP Rating: | IP67 |
|---|---|---|---|
| Peocessing: | 16bit | Contrast Ratio: | 2000:1 |
| Expected Lifetime: | 100,000 Hrs | Servicing: | Front/Rear |
| Refresh Rate: | 3,840 | ||
| Highlight |
led mesh screen,flexible led video curtain |
||
Product Description
Transparent LED Curtain Mesh Billboard Outdoor Building Advertising Screen
| BOC-2525 | BOC-2535 | BOC-2550 | BOC-31.25 | BOC-3150 | |
| Physical Pitch | 25mm | 25mm(H) 35mm(V) | 25mm(H) 35mm(V) | 31.25mm | 31.25mm(H) 50mm(V) |
| Physical Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 1,600 pixels/sqm | 1,120 pixels/sqm | 800 pixels/sqm | 1,024 pixels/sqm | 640pixels/sqm |
| Unit Size(W*H)(mm) | ≥1500*250 | ≥1500*250 | ≥1500*250 | ≥1500*250 | ≥1500*250 |
| Physical Resolution of Unit (H*V) | 60*10 | 60*7 | 60*5 | 48*8 | 48*5 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 15kg/sqm | 10.6kg/sqm | 8.5kg/sqm | 15kg/sqm | 9.6kg/sqm |
| Processing | 16bit | 16bit | 16bit | 16bit | 16bit |
| Contrast Ratio | 2000:1 | 2000:1 | 2000:1 | 2000:1 | 2000:1 |
| Average Power Consumption | 150W/sqm | 115W/sqm | 85W/sqm | 107W/sqm | 67W/sqm |
| Max Power Consumption | 450W/sqm | 345W/sqm | 255W/sqm | 329W/sqm | 200W/sqm |
| Brightness | ≥7,500nits | ≥6,500nits | ≥5,000nits | ≥6,500nits | ≥4,000nits |
| Refresh Rate | ≥3.840Hz | ≥3.840Hz | ≥3.840Hz | ≥3.840Hz | ≥3.840Hz |
| Horizontal Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Vertical Viewing Angle | 60° | 60° | 60° | 60° | 60° |
| Servicing | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP67 | IP67 | IP67 | IP67 | IP67 |
Product Advantages
Feature light weight and slim profile,combines flat strength and precision
About Product

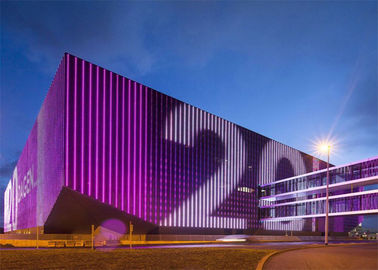

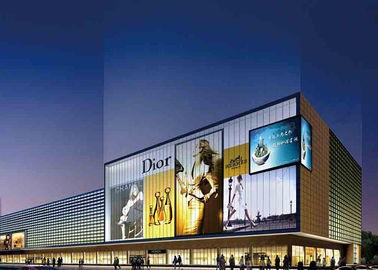

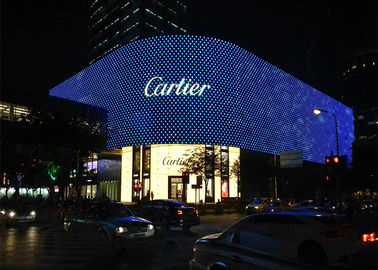

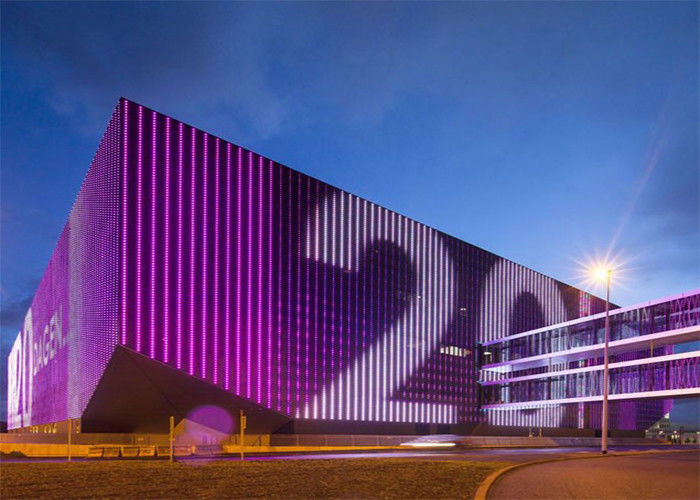

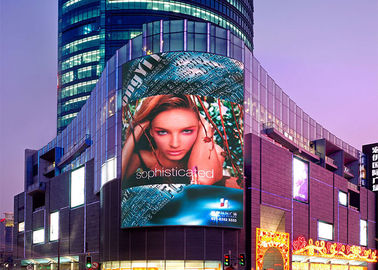

Install Situation
Case
FAQ:
Q1: The warranty of your LED dispaly ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3: What's the controlling system?
A: Our standard controlling system for this model is Novastar. Also support other controlling system such as Linsn, etc.
Packaing and shipping
About Us
►Rich experience: established in 2005; familiar with technical and material about LED display.
►Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
►Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
►Good quality:All products have passed CE, ROHS, FCC certification.
►Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
