Payment & Shipping Terms:
|Physical Pitch:||P3, P4, P5, P6, P8||Brightness:||>6,500 Nits|
|Operating Temp/Humidity:||-20℃- 50℃ / 10% - 90%||Panel Dimensions (mm):||960 × 960 × 150mm|
led digital billboard,
outdoor led billboard

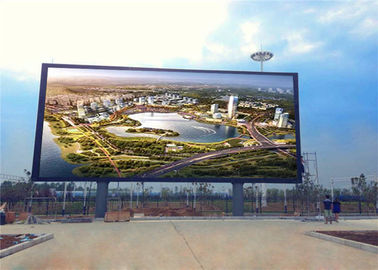

960x960mm Outdoor Billboard LED Display Energy Saving Commercial Advertising
1. 6500 Nits
High brightness LED is used for outdoor led display, keeps the display content visible even if facing the strong sunshine directly.
2. IP65 Rated
Weatherproof design, completely outdoor use.
3. Vivid Video
High color uniformity and clear image can bring you a vivid audio visual effect.
4. Easy Maintenance
Both front and rear access are available.
Low power consumption and fast heat dissipation with dual channel heat dissipation,"cold display" technology can save 60% power and 50% temperature.
|Pixel Configuration||SMD 1921||SMD 1818||SMD 2727||SMD 2727||SMD 2727|
|Pixel Density||97,656 pixels/m²||62,500 pixels/m²||40,000 pixels/m²||22,376 pixels/m²||15,625 pixels/m²|
|Module Dimensions (W × H) (mm)||192 × 192||320 × 160||320 × 160||320 × 160||320 × 160|
|Panel Dimensions (mm)||960 × 960 × 150|
|NO.of Modules Per Panel (W × H)||5 × 5||3 × 6||3 × 6||3 × 6||3 × 6|
|Physical Resolution of Module (W × H)||60 × 60||80 × 40||64 × 32||48 × 24||40 × 20|
|Physical Resolution of Panel (W × H)||300 × 300||240 × 240||192 × 192||144 × 144||120 × 120|
|Panel Material||Steel / Aluminum|
|Weight (m²)||65 / 45|
|Gray Scale||16 bit|
|Contrast Ratio||2,000 : 1|
|Average Power Consumption||360 W/m²|
|Max Power Consumption||900 W/m²|
|Average Power After Energy Saving||-||-||-||90 W/m²||90 W/m²|
|Max Power After Energy Saving||-||-||-||230 W/m²||230 W/m²|
|Refresh Rate||>1,920 Hz|
|Expected Lifetime||100,000 Hrs|
|Operating Temp/Humidity||-20℃- 50℃ / 10% - 90%|
|Storage Temp/Humidity||-20℃-50℃ / 10% - 90%|
|Scan Method||1/16 Scan|
Package: Wooden package, Flight case.
Shipment:By road,sea and air
Payment: T/T, 30% deposits, 70% balance before delivery
Shipping port: Shenzhen,China
Warranty time: 2 years
1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
1. I would like to ask you if it's possible to have my logo on the product.
A: We hope you know that our company perfectly support customized logo service. But, we also hope you know that it's an extra-service,so a little bit extra service fee is needed.
2. How to install it after I received it?
We will offer you the drawing to guide you for installation, we could also offer drawing, software set up drawing or photo or arrange our engineer to help if needed.
3. What is drive method, driving IC and power supply?
Drive method: always we use static, 1/4 scan, 1/8 scan, 1/16 scan, the latter one contributes to less brightness than the former. We always use the static outdoor, and use the different kinds of scan indoor.
Driving IC is the generic term for several kinds of IC, that are used to control the LED lamps, and as a bridge between the control system and lamps.
Power supply: a kind of device that used as a transfer from 220V AC into 5V DC. It always seems like a box in the cabinet.
