Product Details:
Payment & Shipping Terms:
|
| Panel Material: | Aluminum | Physical Pitch: | P3.91, P5.2, P6.25, P8.9 |
|---|---|---|---|
| Contrast Ratio: | 4000 : 1 | Brightness: | 2000nits - 4500nits |
| IP Rating: | IP65 | Servicing: | Front |
| High Light: | led screen stage backdrop,stage background led screen |
||
P3.91 Outdoor Dance Floor LED Display for stage, T stage show Bearing 1.8 tons
Description:
1. Fast and flexible installation: no direct installation or rail installation can be used.
2. High load-bearing performance: with a high load capacity of 1.8 tons per square meter.
3. Excellent maintenance performance: it can be exchanged directly without removing adjacent boxes.
4. High contrast design: technical design mask, clear play effect.
5. Excellent low brightness and high ash effect, showing the uniformity of gray uniformity and good consistency.
6. Vivid image show brilliant visual performance.Wide viewing angle with superior color uniformity.
7. Applicable to multi-purpose hall, stage, T stage show, car show and so on.
Parameters:
| BD-3 | BD-5 | BD-6 | BD-8 | |
| Physical Pitch | 3.91 mm | 5.2 mm | 6.25 mm | 8.928 mm |
| Pixel Configuration | SMD 1921 | SMD 1921 | SMD 2727 | SMD 3528 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² | 25,600 pixels/m² | 25,600 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) | 500 × 1000 | 500 × 1000 | 500 × 1000 | 500 × 1000 |
| NO.of Modules Per Panel (W × H) | 2 × 4 | 2 × 4 | 2 × 4 | 2 × 4 |
| Physical Resolution of Module (W × H) | 64 x 64 | 48 x 48 | 40 x 40 | 28 x 28 |
| Physical Resolution of Panel (W × H) | 128 x 256 | 96 x 192 | 80 x 160 | 56 x 112 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Single Cabinet Weight | 20 kg/panel | 25 kg/panel | 24 kg/panel | 25 kg/panel |
| ray Scale | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 300 W / m² | 300 W / m² | 300 W / m² | 300 W / m² |
| Max Power Consumption | 880 W / m² | 880 W / m² | 880 W / m² | 880 W / m² |
| Operating Temp/Humidity | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% | -10℃-60℃ / 10%-60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | 2,500 nits | 2,000 nits | 4,500 nits | 4,500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Best Viewing Distance | 4m-60m | 6m-60m | 8m | 8m |
| Scan Method | 1 / 16 Scan | 1 / 6 Scan | 1 / 5 Scan | 1 / 3 Scan |
| Servicing | Front | Front | Front | Front |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 |

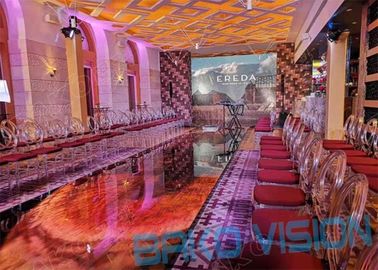

Project in Russia:
Abou Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long termpartnership with variety channel customers over 120+ countries.
FAQ:
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
