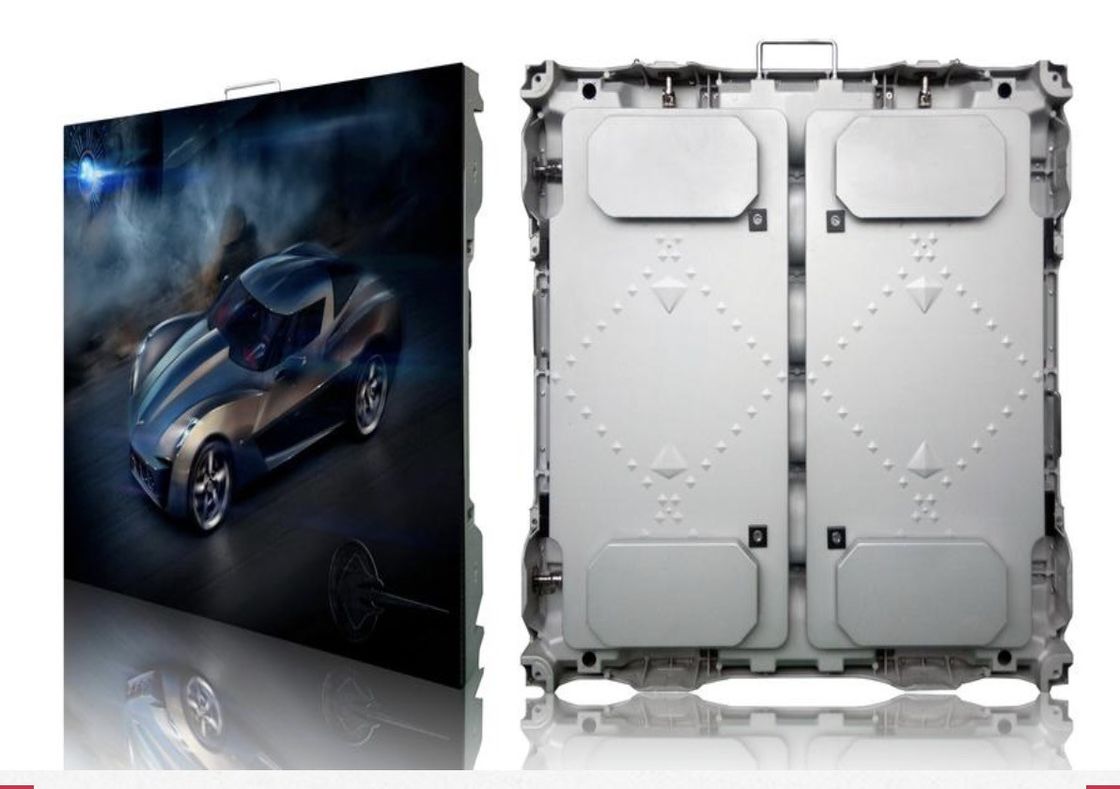

Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate

Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate
Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate

Large Image :  Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Model Number: BOR Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight case / Plywood case
Delivery Time: 15-25days
Payment Terms: T/T, L/C, D/P
Supply Ability: 8000square meter per month
Detailed Product Description
Certification: CE,UL,FCC,ISO9001 Pixel Pitch: 10mm
Material: Die-cutting Aluminum Brightness: >5,500 Nits
Refresh Rate: 1920Hz Cabinet Size: 960 X 960 X 10mm
High Light:

events led display

,

led rental display

P10mm Waterproof Outdoor High Brightness Rental LED Video Display



Rental Led Screen Quick Details:
1, Pixel Pitch: 10mm
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: 960x960mm weight: 15kg/Sqm.
5, Recommended minimum viewing distance: 10m.
6, Warranty: 2years.

Rental Led Screen Description:
Bako Vision Outdoor LED Screen include permanent installation outdoor electronic led display, the pixel various from 2.6, 3.91mm, 4.81mm, 6mm,10mm. We provide variable solution to satisfy your requirement. You can use it for stage performance or living show.



Rental Led Screen Superior Electrical Features

  • High brightness: More than 6000nits,visible from every direction even face to direct sunshine.
  • High waterproof grade: IP65 protection, can be sustain strong strom and rain, have the best waterproof ability in outdoor use,SMD LEDs, wide viewing angle, Hor. Ver. 140 degree;
  • Convenient Assemble : Smart fast side locks make screen assemble fast and easier; Save your labor cost and time.
  • Seamless connection: superior color uniformity and stunning image quality, there is not black bezel line on connection nor information missing;
  • Good heat dissipation: New cabinet design of LED screen without fan, good heat dissipation,due to die-casting alumium material ,concise, slim and light weight;
  • Convenient Control: Digital Video walls can be connected with nearly any equipment , including to PCs, DVD and camera . That is conveniently for you to present your data;
  • High Quality : we use famous IC ,like MBI5020,MBI5024,MBI5030 and high quality lamp, Nationstar and so on, ensure high brightness;

Rental/Fixed Led Screen Specification

Physical Pitch 10mm
Pixel Configuration SMD3535
Pixel Density 10,000 pixels/Sqm
Module Dimensions(W x H) (mm) 320 x 160
Panel Dimensions (mm) 960 x 960 x 80mm
Physical Resolution of Panel (W x H) 104 x 104 / 104 x 208
Processing 16bit
Colours 281 trillion
Contrast Ratio 4,000 : 1
Average Power Consumption 150 W /panel
Max Power Consumption 550 W /panel
Operating Temp/Humidity -20ºC - 60ºC / 10ºC - 60ºC
Storage Temp/Humidity -30ºC - 60ºC / 10ºC - 60ºC
Refresh Rate >1,920 Hz
Brightness ≥6,000nits
Servicing Front / Rear
IP Rating (Front/Rear) IP 65 / IP 54

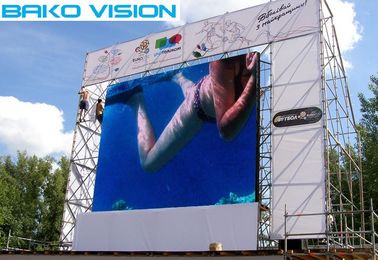

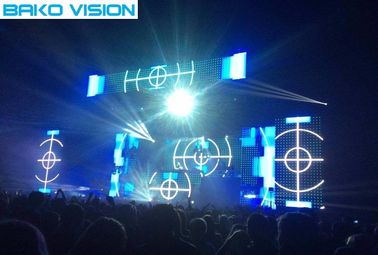

Fixed Led Screen Case:


Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 0

Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 1Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 2Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 3Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 4Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 5Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 6Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 7Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 8Die Casting Aluminum LED Video Display Screen Light Weight P10 1920Hz Refresh Rate 9
