Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | P3, P4, P5, P6, P8 | Brightness: | >6,500 Nits |
|---|---|---|---|
| Servicing: | Rear | LED Lamp: | Nationstar |
| Operating Temp/Humidity: | -20℃- 50℃ / 10% - 90% | Panel Dimensions (mm): | 960 × 960 × 150mm |
| High Light: | street led screen,outdoor waterproof led advertising panels |
||
Waterproof Outdoor Advertising LED Screen 90 W/m² Power Consumption 1920Hz
1. IP65 Rated
Protection level is IP65, is full waterproof, dustproof, anti-corrosion and anti-ultraviolet, enable themselves to work in all weather conditions to guarantee durability, reliability and steady.
2. High Brightness
High brightness 6500CD ensures the spectators far from the screen can still enjoy what is shown, even under direct sunlight.Selected LED for 7/24 work mode.
3.Vivid Image
High refresh rate, high grey scale level and high accurate color consistency guarantee the vivid pictures and perfect videos.
4. Energy-saving Technology
60% power lower than normal,50% tempearture less than normal
5. High Value
Super performance/cost ratio offers you both top notch quality and reasonable price, maximizing the value of your investment.
Parameters:
| Physical Pitch | 3.2mm | 4mm | 5mm | 6.67mm | 8mm |
| Pixel Configuration | SMD 1921 | SMD 1818 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density | 97,656 pixels/m² | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 192 × 192 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | ||||
| NO.of Modules Per Panel (W × H) | 5 × 5 | 3 × 6 | 3 × 6 | 3 × 6 | 3 × 6 |
| Physical Resolution of Module (W × H) | 60 × 60 | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 300 × 300 | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Panel Material | Steel / Aluminum | ||||
| Weight (m²) | 65 / 45 | ||||
| Gray Scale | 16 bit | ||||
| Colours | 281 trillion | ||||
| Contrast Ratio | 2,000 : 1 | ||||
| Average Power Consumption | 360 W/m² | ||||
| Max Power Consumption | 900 W/m² | ||||
| Average Power After Energy Saving | - | - | - | 90 W/m² | 90 W/m² |
| Max Power After Energy Saving | - | - | - | 230 W/m² | 230 W/m² |
| Brightness | >6,500 nits | ||||
| Refresh Rate | >1,920 Hz | ||||
| Viewing Angle | 160°(V)140°(H) | ||||
| Expected Lifetime | 100,000 Hrs | ||||
| Servicing | Rear | ||||
| IP Rating | IP65 | ||||
| Operating Temp/Humidity | -20℃- 50℃ / 10% - 90% | ||||
| Storage Temp/Humidity | -20℃-50℃ / 10% - 90% | ||||
| Scan Method | 1/16 Scan | ||||

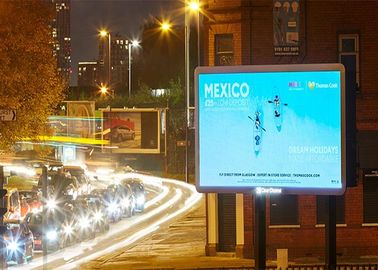

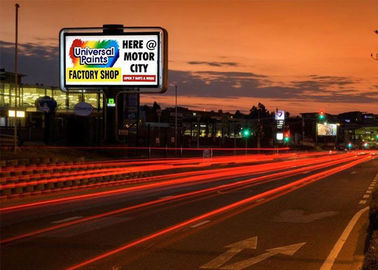

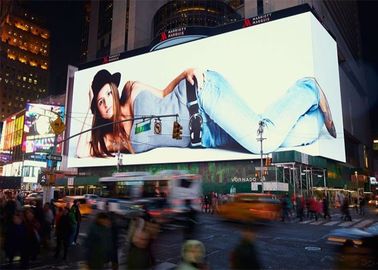

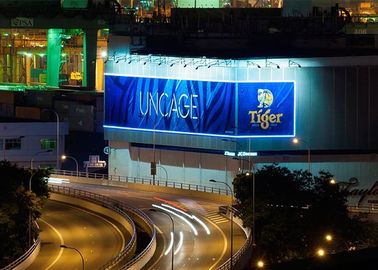

Project references:
Tips:
Package: Wooden package, Flight case.
Shipment:By road,sea and air
Payment: T/T, 30% deposits, 70% balance before delivery
Shipping port: Shenzhen,China
Warranty time: 2 years
Service:
1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.
About Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
