Product Details:
Payment & Shipping Terms:
|
| Contrast Ratio: | 4000 : 1 | Refresh Rate: | 1920~3840Hz |
|---|---|---|---|
| Cabinet Size: | 500 X 500mm /500 X 1000mm | Brightness: | 1200 Nits |
| Control System: | Novastar | Viewing Angle: | 160°（H）140°（V） |
| High Light: | mobile led display truck,truck mounted led screen |
||
Event Rental Mobile LED Screen Truss Hanging / Stacking Stage Backdrop 1200 Nits
Features:
1. Ultra Lightweight and Thin
Lighter and seamless-precision die-cast aluminum cabinet,500X1000mm cabinet only 13kg,500X500mm cabinet only 7kg,thickness only 80mm.
2. Easy to Assemble and Disassemble
Fast locks, easy to assemble and disassemble,saving labor cost
3. Low power Consumption and Cost-effective
Excellent cooling design, no fans or air-conditioners needed,noiseless
4. High Refresh
We offer normal 1920Hz and high refresh 3840Hz options.High refresh rate enables LED screen to be excellently exposed to live TV shows and cameras.
5. Angle allowed
Special lock offer options of concave and convex screen,you can adjust the lock to achieve curved screen,more flexible design.
Parameters:
| Pixel Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147,456pixels/m² | 112,896pixels/m² | 65,636pixels/m² |
| Moduel Demensions(mm) | 250x250 | ||
| Panel Demension(mm) | 500x500 / 500x1000 | ||
| Resolution of Module | 96 x 96 | 84 x 84 | 64 x 64 |
| Grey Level | 16 bits(281 trillion colors) | ||
| Single Cabinet Weight | 8/14kg | ||
| Contrast Ratio | 4000 :1 | ||
| Brightness | 1200 nits | ||
| Refresh Rate | 1920Hz | ||
| Average Power Consumption | 64/128 W/panel | ||
| Max Power Consumption | 192/384 W/panel | ||
| Viewing angle(H/V) | 160°/ 140° | ||
| Max Stacking | 20/10 | ||
| Max Hanging | 20/10 | ||
| Expected Lifetime | 100,000 hours | ||
| IP Rating (Front/Rear) | IP 40/IP 21 | ||
| Certification | CCC, CE, ETL, RoHS | ||
Cases:
About Bako Vision:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
Products application area:

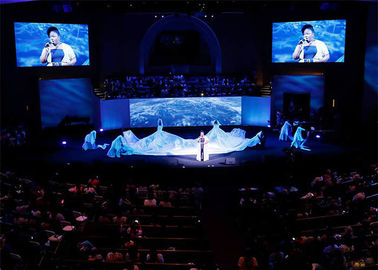

The outdoor rental display screen is suitable for general stage construction that needs to be moved frequently, and is mainly used for the construction of outdoor stage, such as temporary singing, meeting, sports, etc.
Prior service:
1. We are always ready to accept your enquiry, or we can design according to your requirements to ensure that you get the best quality at the best price.
2Customized design is available,OEM & ODM are welcomed.
In-service:
1. We can send professional engineers to install and train you until you understand.
2. Warmly welcome your visit in our company if available.
After sales service:
We offer a two-year free after-sales service, ready to solve your problems and provide you with the best service.
