Slim Light Transparent LED Screens Fxied Shop Mall High Brightness Aluminum Cabinet
Product Details
| Cabinet Material: | Aluminum | Panel Dimention: | 960*640 |
|---|---|---|---|
| Brightness: | >5,500nits | Gray Level: | 16bit |
| Screen Dimension: | Customized | Warranty: | 2 Years |
| Tube Chip Color: | Full Color | ||
| Highlight |
clear led screen,transparent glass led display |
||
Product Description
Slim and light Indoor Fxied Shop Mall High Brightness Glass Transparent LED Screen
Specification
| BG-3.75-6.67 | BG-3.75-8 | BG-5-6.67 | BG-5-8 | |
| Physical Pitch | 3.75*6.67mm | 3.75*8mm | 5*6.67mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD3528 | SMD3528 |
| Pixel Density | 39,900 pixels/㎡ | 33,250 pixels/㎡ | 30,000 pixels/㎡ | 25,000 pixels/㎡ |
| Module Dimensions (W*H)(mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 960*640 | 960*640 | 960*640 | 960*640 |
| Physical Resolution of Module(W*H) | 128*48 | 128*40 | 96*48 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*96 | 256*80 | 192*96 | 192*80 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 11 kg/sqm | 10.2 kg/sqm | 10 kg/sqm | 9.5 kg/sqm |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption | 207 W/panel | 201 W/panel | 209 W/panel | 203 W/panel |
| Max Power Consumption | 690 W/panel | 670 W/panel | 696 W/panel | 670 W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >5,500nits | >5,500nits | >5,500nits | >5,500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP30 | IP30 | IP30 | IP30 |
| BG-7.5-8 | BG-10 | BG-16 | BG-20 | |
| Physical Pitch | 7.5*8mm | 10*10mm | 16*16mm | 20*20mm |
| Pixel Configuration | SMD3528 | SMD3528 | SMD3528 | SMD3528 |
| Pixel Density | 16,625 pixels/㎡ | 10,000 pixels/㎡ | 3,906 pixels/㎡ | 2,500pixels/㎡ |
| Module Dimensions (W*H)(mm) | 480*320 | 480*320 | 480*320 | 480*320 |
| Panel Dimensions(mm) | 960*640 | 960*640 | 960*640 | 960*640 |
| Physical Resolution of Module(W*H) | 64*40 | 48*32 | 30*20 | 24*16 |
| Physical Resolution of Panel(W*H) | 128*80 | 96*64 | 60*40 | 48*32 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 9kg/sqm | 8kg/sqm | 7.2kg/sqm | 6.5kg/sqm |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000:1 | 2,000:1 | 2,000:1 | 2,000:1 |
| Average Power Consumption | 204W/panel | 195W/panel | 218W/panel | 218W/panel |
| Max Power Consumption | 670W/panel | 650W/panel | 650W/panel | 650W/panel |
| Refresh Rate | >1,920Hz | >1,920Hz | >1,920Hz | >1,920Hz |
| Brightness | >5,500nits | >5,500nits | >5,500nits | >5,500nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° |
| Servicing | Rear | Rear | Rear | Rear |
| IP Rating (Front/Rear) | IP30 | IP30 | IP30 | IP30 |
Quick Detail
Excellent viewing angle
Hiden cable appearance
Easy to install and dismantle
Extremely versatile and highly customizable
Description

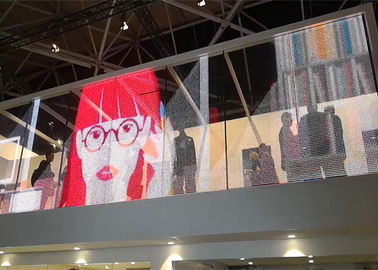

Transparent LED Screens offer an effective and striking alternative to Large Format LED Screens. The image on the screen is created by programming LEDs to work together, and by displaying the relevant pixel colour on the mapped LEDs, the lights come together to create an image. This effect is especially powerful when integrated into a glass facade, allowing designers to offer a screen solution for retail buildings with a focus on glass architecture without detracting from the overall design.
Transparent LED Screens are also ideal for indoor window displays and are commonly used for reinforcing a brand. To advertise or to inform, these screens are an excellent option for anyone who wishes to display content in style without blocking out light or the view on both sides. This transparent screen opens up new creative options that were not possible with LCD screens and other LED screens.
These screens offer a more practical option when compared to many display alternatives, especially considering the modular composition of large format applications. This allows for enormous screens that could compete with the likes of LCD video walls in size, but drastically overshadows them in terms of brightness. Its inherent transparency offers a refreshing and ideal solution for hi-tech environments, dazzling audiences and spectators with the creative use of such technology, ensuring that your business, brand or message will not only be taken notice of, but hard to forget also.
Features
1,Extremely Light Weight:Only 3.5kg/tile for 60 x 60cm module(9.7kg/m2),the toppest light-weight transparent LED display in the market.Good for rental market.
2,High Transparency:Real high transparent led display,up to 80% transparency.PCB thickness only 2.3mm,vertical see-through effect,extraordinary experience.
3,Compact Slim and Clean Design:All integrated compact design.Thickness only 35mm-45mm.Clean design without extra cables and accessories.
4,Low Consumption:Low consumption is only the 1/10 of LCD display.
5,Extremely Fast Installation:Thanks for fast-locks and quick plugs,as well as light-weight screen-body,it's easy for installation.
6,Easy Maintainence:Front maintainence available.Just plug out the LED panel and plug in again.
7,High Brightness Available:Indoor and outdoor brightness available.Outdoor brightness version is available viewing in bright sunshine.
