Easy Maintenance Energy Saving Outdoor Fixed Led Module With Synchronous
Product Details
| View Angle: | Horizontal 140° Vertical 160° | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 11 Years | Screen Dimension: | Customized Size |
| Gray Scale (mm): | 16bit | Mtbf: | More 50, 000 Hours |
| Refresh Rate: | >1920 Hz | ||
| Highlight |
street led screen,outdoor waterproof led advertising panels |
||
Product Description
Easy Maintenance Energy Saving Outdoor Fixed Led Module With Synchronous
Key Specifications:
Outdoor Fixed LED Display:
- Pixel Pitch:P5,P6,P8,P10.
- Cabinet Size:Can be customized
- Relatively low cost (factory), meets your budget
- Stable capability, pass professional testing
- Easy installment and low maintenance cost
- Waterproof and dustproof: IP65
- Large viewing angle: H:140°, V:160°
- Good heat emission capability,Aluminum or steel cabinet
- Exported to 120+ countries .
Outdoor Fixed LED Advantages:
- Frequently-used outdoor full color led screen.
- High quality and brightness. Wide color space and long lifespan.
- Easy Installation / Using: Easy and simple installation interface and user friendly software to ensure theuser friendly interface of the LED screen system.
- IP65 grade for high performance waterproof and dustproof capability.
- -25°C - 65°Cworking environment for outdoor display, adapted to the harsh environment.
- High brightness to meet the needs of outdoor environment.High gray and high refresh,meet the camera,camera equipment to shoot demand,3535 table stick package,to meet the large angle of view.
Outdoor Fixed Led Specifications, the catalogue can be download⇒2. Outdoor Fixed Screen-Rear Service.pdf
| BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 6.67 mm | 8 mm | 10 mm |
| Pixel Configuration | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 | 256*256 | 256*256 |
| Panel Dimensions(mm) | 1280*768*150 | 1280*768*150 | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 | 5*3 | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel (W*H) | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/ Aluminum | Steel/ Aluminum | Steel/ Aluminum |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Weight (kg/m²) | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| IP Rating | IP65/ IP54 | IP65/ IP54 | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel | 360/900W/ panel | 360/900W/ panel |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
Outdoor fixed led Procesure Details
Supporting kinds of communication types like internet access, USB, 4G,WIFI and cloud control.
Light sensor , Automatically brightness adjustment, real-time display temp and humidity.

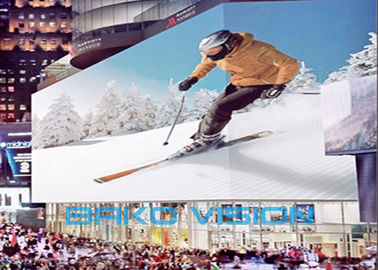

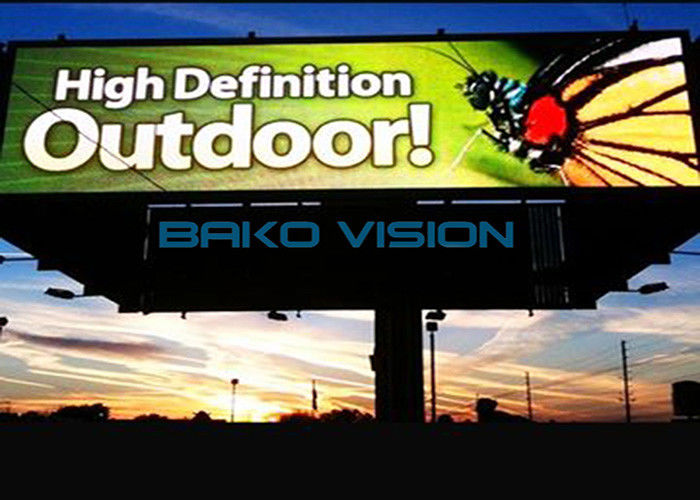

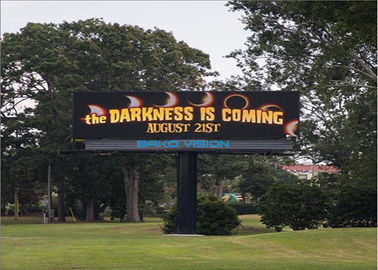

Outdoor fixed led Application case:
Widely Application:

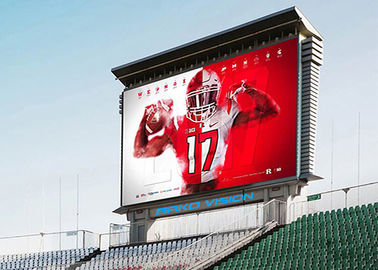

It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
Multiple installation methods:
Our company
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Tips:
Package: Wooden package, Flight case.
Shipment:By road,sea and air
Delivery time:20-25 working days
Payment: T/T, 30% deposits, 70% balance before delivery
Shipping port: Shenzhen,China
Warranty time: 2 years
Price term: EXW Shenzhen
Service:
1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.
