Product Details:
Payment & Shipping Terms:
|
| Pixel Configuration: | SMD 3535 | IP Rating(Front/Rear): | IP65/ IP54 |
|---|---|---|---|
| Expected Lifetime: | 11 Years | Module Demensions (W*H)(mm): | 192*192 |
| Gray Scale (mm): | 16bit | Mtbf: | More 50, 000 Hours |
| Refresh Rate: | >1920 Hz | ||
| High Light: | roadside led display,street led screen |
||
P5-P10mm Wifi/ 4G/USB/Cloud Control Outdoor Commercial Advertising Billboard
Outdoor Commerical Fixed LED Display:
Outdoor Commerical Fixed LED Advantages:
Outdoor Commerical Fixed Specifications
| BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 6.67 mm | 8 mm | 10 mm |
| Pixel Configuration | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 | 256*256 | 256*256 |
| Panel Dimensions(mm) | 1280*768*150 | 1280*768*150 | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 | 5*3 | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel (W*H) | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/ Aluminum | Steel/ Aluminum | Steel/ Aluminum |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Weight (kg/m²) | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| IP Rating | IP65/ IP54 | IP65/ IP54 | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel | 360/900W/ panel | 360/900W/ panel |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
Procesure Details
Supporting kinds of communication types like internet access, USB, 4G,WIFI and cloud control.
Light sensor , Automatically brightness adjustment, real-time display temp and humidity.
Main Export Markets:
Widely Application:

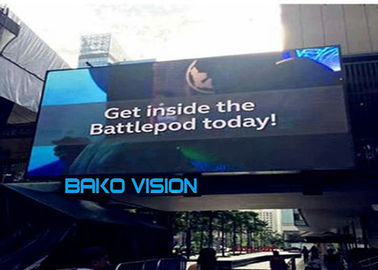

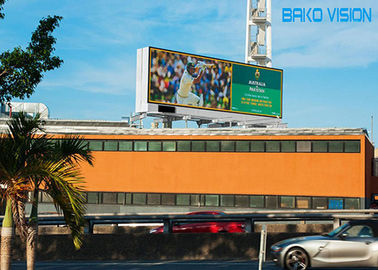

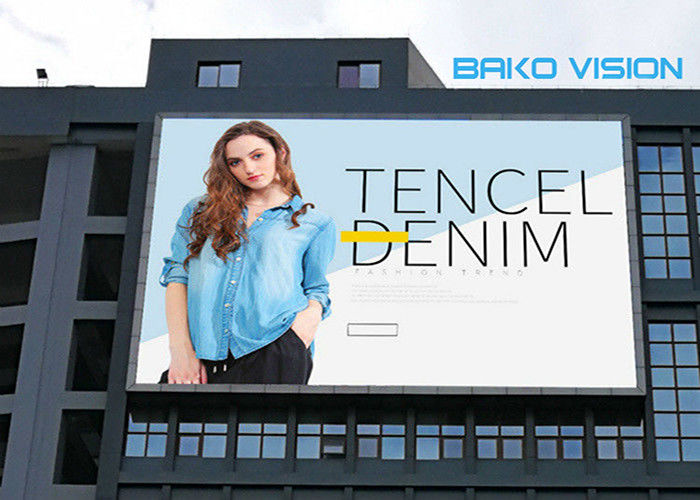

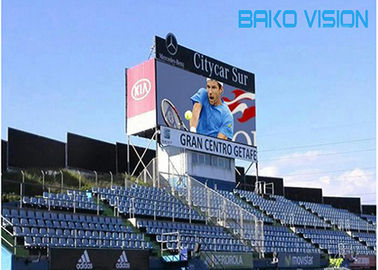

Our products have been widely used in venues as banks, stock exchange centers, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares, courts, schools, restaurants etc
Our company
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.Main markets are among America, Europe, Middle East and Asia.
Tips:
Package: Wooden package, Flight case.
Shipment:By road,sea and air
Delivery time:20-25 working days
Payment: T/T, 30% deposits, 70% balance before delivery
Shipping port: Shenzhen,China
Warranty time: 2 years
Price term: EXW Shenzhen
Service:
1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.
