540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show

540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show
540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show

Large Image :  540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE RoHS UL CCC ETL
Model Number: BIR

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Flight Case or Plywood Case
Delivery Time: 25 days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000m2/Month
Detailed Product Description
Frame Rate: >540Hz Pitch: 4mm
LED Spec: SMD3in1 Best View Distance: 4-30m
Brightness: >1400CD/Sqm View Angel: Horizontal:160; Vertial:110;
LED Type: SMD2727 Installation: Hanging On Truss / Stacking On Floor
Specification: 500 * 500 / 1000 IP Rating: IP43
High Light:

stage background led screen

,

concert led screen

P3 P4 P5 Indoor SMD Full Color LED Display Screen Video Wall for Show, Stage Rental, Advertising4-BIR-II-Tia.pdf

P3 P4 P5 Indoor SMD Full Color LED Display Screen Video Wall is widely used for shopping malls, entertainment venues, schools, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.

Our Advantage & Service:
1, Good price
Our price is 10% lower than the market because of the introduction of full Automatic production line with the characteristics of reducing the cost of Labor and management.
2, Lightweight
Aluminum cabinet greatly saving freight cost and conveniently installing.
3, Stable performance
Our most basic guarantee: The aging time exceeding 24 hours. Malfunction Dot rate less than 0.0001. MTBF more than 10,000 hours.
4, Service
Free to support and train your operator.

P3 P4 P5 Indoor SMD Full Color LED Display Screen Video Wall Parameters:


  BIR-III-2X BIR-III-2 BIR-III-3 BIR-III-4
Physical Pitch 2.6mm 2.97mm 3.91mm 4.81mm
Pixel Configuration SMD2121 SMD2121 SMD2121 SMD2121
Pixel Density 147,456 pixels/sqm 112,896 pixels/sqm 65,536 pixels/sqm 43,264 pixels/sqm
Module Dimension (W*H)(mm) 250*250 250*250 250*250 250*250
Panel Dimension(mm) 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80 500*500*80/500*1000*80
Physical Resolution of Panel(W*H) 192*192/192*384 168*168/168*336 128*128/128*256 104*104/104*208
Panel Material Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum Die-Casting Aluminum
Single Cabinet Weight 8/14 kg/panel 8/14 kg/panel 8/14 kg/panel 8/14 kg/panel
Processing 16 bit 16 bit 16 bit 16 bit
Contrast Ratio 4,000:1 4,000:1 4,000:1 4,000:1
Average Power Consumption 64/128 W/panel 64/128 W/panel 64/128 W/panel 64/128 W/panel
Max Power Consumption 192/384 W/panel 192/384 W/panel 192/384 W/panel 192/384 W/panel
Refresh Rate >1,920 Hz >1,920 Hz >1,920 Hz >1,920 Hz
Brightness >1,200 nits >1,200 nits >1,200 nits >1,200 nits
Horizontal Viewing Angle 160° 160° 160° 160°
Vertical Viewing Angle 140° 140° 140° 140°
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating (Front/Rear) IP40/IP21 IP40/IP21 IP40/IP21 IP40/IP21

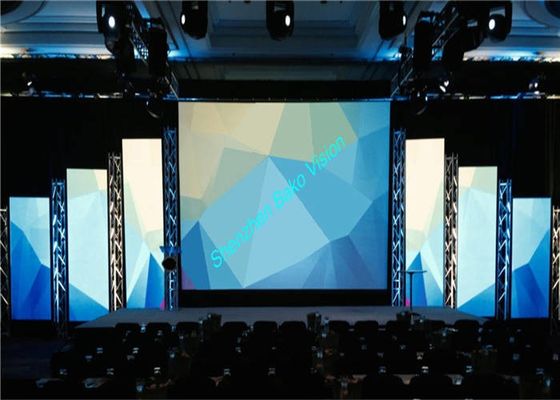

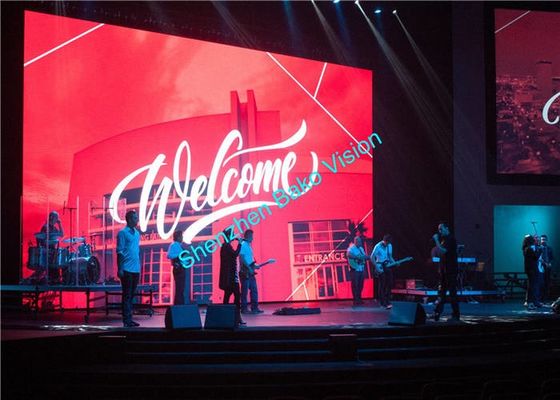

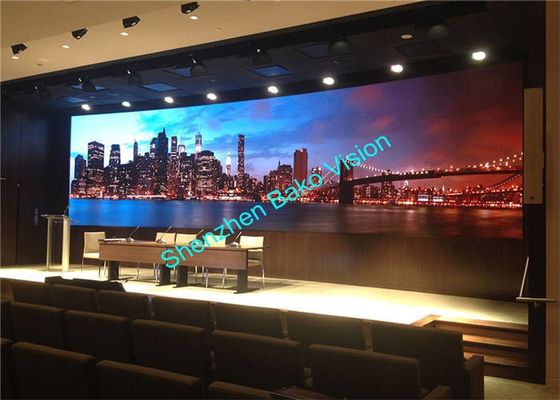

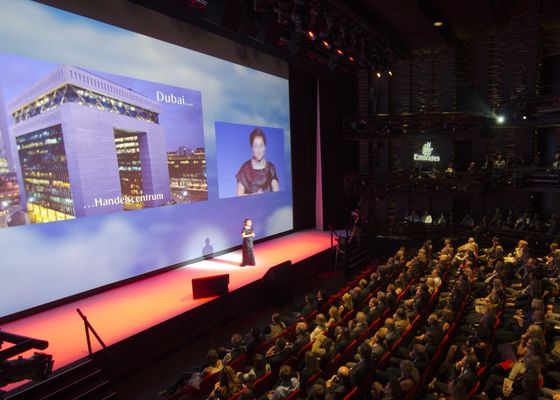

P3 P4 P5 Indoor SMD Full Color LED Display Screen Video Wall Cases:

540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show 0

540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show 1

540Hz Indoor SMD Full Color LED Display Screen Video Wall P3 P4 P5 For Show 2



About us:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

FAQ:
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer.
Q2. What is your terms of payment?
A: T/T or Western Union 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q8: How can I get technology support?
A:1,We will train in our factory and send video for showing. The training include system use, system maintenance and equipment protection.

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen.
