Product Details:
Payment & Shipping Terms:
|
| Material: | Die-Casting Aluminum | Light: | Nationstar |
|---|---|---|---|
| Driver IC: | MBI5124 | Usage: | Outdoor Ads |
| Warranty: | 2 Years | Expected Lifetime: | More Than 100,000Hrs |
| Power Supply: | Meanwell | Brightness: | 6500nits |
| High Light: | roadside led display,street led screen |
||

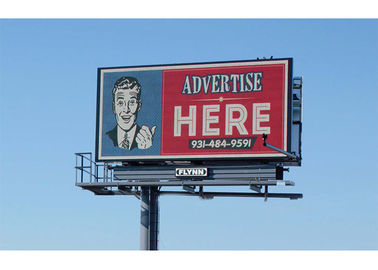

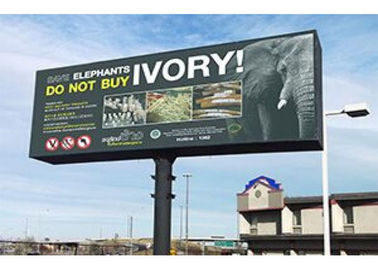

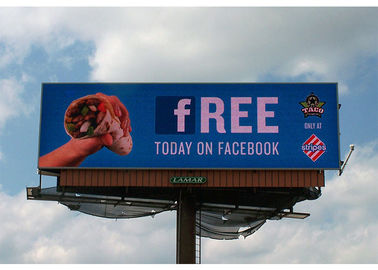

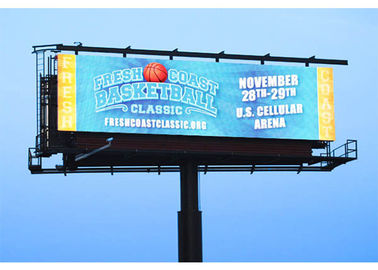

P6 P8 P10 RGB High Brightness Water Proof Outdoor Fixed LED Billboard For Advertising
Product Description:
● Energy-saving
● Conventional Back Service
● Stable and Durable
● Concave, Convex
Parameters:
| Pixel Pitch | P4.81 | P6.67 | P8 | P10 |
| LED Type | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Size | 250*250 | 320*320 | 256*256 | 320*320 |
| Cabinet Size | 1000*1000*150 | 1280*960*150 | 1280*768*150 | 1280*960*150 |
| Module Resolution | 52*52 | 48*48 | 32*32 | 32*32 |
| Cabinet Weight | 65/45kg | |||
| Cabinet Material | Steel/ Aluminum | |||
| Gray Scale | 16 bit | |||
| Contrast Ratio | 2000:1 | |||
| View Angle(H/V) | 160°/ 140° | |||
| Refresh Rate | ＞1920Hz | |||
| Brightness | ＞6500nits | |||
| IP Rating | IP65 / IP54 | |||
| Servicing | Front / Rear | |||
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | |||
| Expected Lifetime | 100,000Hrs | |||
| Average Power Consumption | 360W/ Panel | |||
Features:
Energ-saving technology
Cutting edge “cold display” technology
60% power lower than normal
50% tempearture less than normal
Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Front access
IP65 rating
Suitable brightness adjustable for outdoor day and night
Selected LED for 7/24 work mode
Durable and Qualified Components
Company Introduction:
Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005,a world class manufacturer of
technologically advanced LED displays,it is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION product lines have include I/O rantal,I/O fixed, UHD fine pitch, transparent screen,advertising poster,foldable screen… meanwhile, based on our experienced R&D team,and comprehensive management , we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
FAQ
Q1:How to choose a proper led screen for your need?
A:You just need to think of 3 simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place forever)?
3.what is the appoximate size of the led screen you would like to purchase?
Q2:Which pixel pitch should i choose?
A:There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
Q3:Which control system should i choose?
A:There is both synchronous and asynchronous control system for led screen on the market,for big size led screen(usually more than 20sqm) need to use synchronous control system,below 20sqm it's up to you to use syn or asyn.But asyn control system's refresh rate is much lower than sync control system and for asyn control system, you can choose to use wifi,3G,4G etc wireless control.
