Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display

Brand Name: Bako Vision
Model Number: BDF
Place of Origin: China
Certification: CCC,CE,RoHS,EMC
Minimum Order Quantity: Negotiation
Price: $399~999
Supply Ability: 8000sqms/month

Product Details


Module Size: 512*256 Panel Material: Die-casting
IP Rate: IP65/IP54 Brightness: >5,500nits
Servicing: Front And Rear Expected Lifetime: 100,000 Hrs
Highlight

roadside led display

,

outdoor waterproof led advertising panels

Product Description

Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 0



Quick Detail



Lightweight large format,slim and smart

Ideal substitution for traditional outdoor bulky and heavy cabinet

I/O advertising billboards



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 1



Product Description





1. Lightweight large format,slim and smart ideal substitution for traditional outdoor buckly and heavy cabinet.

2. One standard chassis 1024mm x 768mm, covering pitches from 2.6mm to 10.6mm.

3. Suitable brightness adjustable for outdoor day and night.

4. Deep black levels, contrast ratio 4000 : 1

5. Die-casting cabinet, 27~35kg per cabinet, 100mm thickness.

6. Fanless design



Prodcut Specification



  BDF-2 BDF-3 BDF-5 BDF-6
Physical Pitch 2.6mm 3.2mm 5.33mm 6.4mm
Pixel Configuration SMD1617 SMD1617 SMD1921 SMD2727
Pixel Density 141,376 pixels/sqm 97,656 pixels/sqm 35,200 pixels/sqm 24,414 pixels/sqm
Module Dimension (W*H)(mm) 512*256
Panel Dimension(mm) 1024*768*100
Physical Resolution of Panel(W*H) 394*294 320*240 192*144 160*120
Panel Material Die-casting
Single Cabinet Weight 35 kg
Processing 16 bit
Contrast Ratio 4000:1 4000:1 2000:1/4000:1 2000:1/4000:1
Average Power Consumption 240 W/panel
Max Power Consumption 600 W/panel
Refresh Rate >1,920Hz
Brightness >2,500nits >4,000nits >4,500nits >5,500nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Servicing Front/Rear
IP Rating (Front/Rear) IP65/IP54



  BDF-8 BDF-10 BDF-12 BDF-16
Physical Pitch 8mm 10.66mm 12.8mm 16mm
Pixel Configuration SMD2727 SMD3535 SMD2727 DIP346
Pixel Density 15,625  pixels/sqm 8,800   pixels/sqm 6,103    pixels/sqm 3,906    pixels/sqm
Module Dimension (W*H)(mm) 512*256
Panel Dimension(mm) 1024*768*100
Physical Resolution of Panel(W*H) 128*96 96*72 80*60 64*48
Panel Material Die-casting
Single Cabinet Weight 35 kg
Processing 16 bit
Contrast Ratio 4000:1 4000:1 2000:1/4000:1 2000:1/4000:1
Average Power Consumption 350 W/panel
Max Power Consumption 700 W/panel
Refresh Rate >1,920Hz
Brightness >5,500nits
Horizontal Viewing Angle 160°
Vertical Viewing Angle 140°
Servicing Front/Rear
IP Rating (Front/Rear) IP65/IP54





Advantages



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 2



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 3



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 4

Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 5

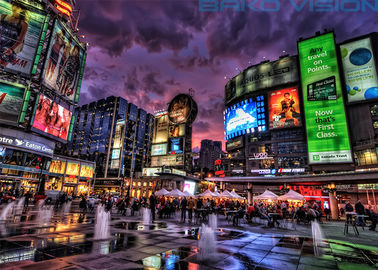

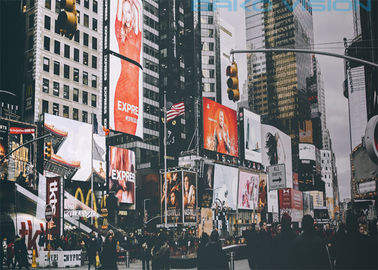

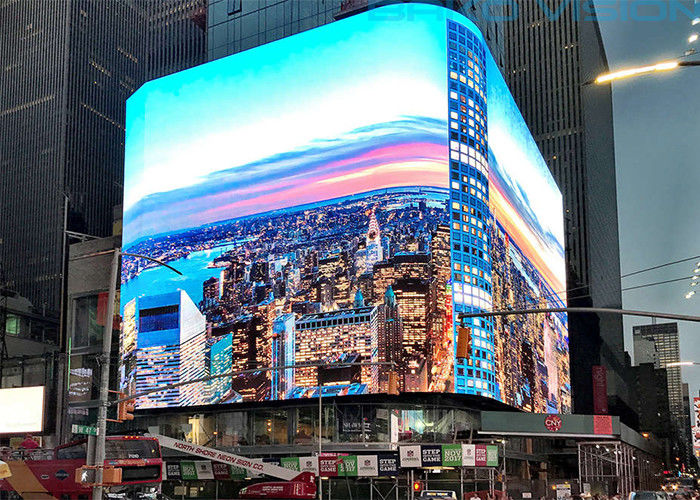

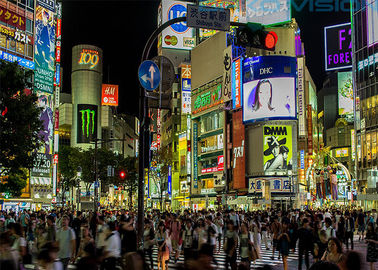

Case



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 6



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 7



Service



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 8





FAQ



Q1:Are you factory or a trade company?

A1:We are a factory owing professional R & D department and production lines with 14 years of experience in led display.



Q2:Why I should choose your company ?

A2:We have been focusing on the development of led svreen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.



Q3: What's the warranty of your LED Display ?

A3: 2-5 years warranty .and 100000 hours life span.During the warranty period ,we can offer you related after-sales service. Our professional engineering team are always ready to answer your questions.





Packaging and Shipping



Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 9







About Us

Waterproof LED Billboard Die-Casting Aluminum Outdoor Advertising LED Display 10





LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
