Product Details:
Payment & Shipping Terms:
|
| LEDs: | SMD2121 | Dimension: | 240 X 120mm |
|---|---|---|---|
| Servicing: | Front | Viewing Angle: | 160°/140° |
| Refresh Rate: | ＞1920Hz | Brightness: | ＞1500nits |
| High Light: | foldable led screen,soft led screen |
||
P2.5 P3 P4 Indoor Soft Rubber Flexible Fixed Led Video Display Led Panels Tvs Wall With Any Angle / Size
Flexible Led Display Screen Quick Details:
1, Pixel Pitch:2.5mm SMD LEDs.
2, Full colors: 281trillions.
3, Wide viewing angle: 160°/ 140°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Module size: 240x120mm, weight: 8.2kg/Sqm.
6, Recommended minimum viewing distance: 3m.
Flexible Led Display Screen Application:
Bako Vision fixed installation indoor Flexible led screens are widely used for commercial advertising or media broadcasting in airport, station, supermarket, pole, square, stadium, public places and so on.
Flexible Led Display Screen Features:
1, High brightness more than 1,000nits, visible from every direction indoor.
2, Wide viewing angle for broader reach, up to 160° horizontally and 140° vertically.
Image no distortion, no color cast in any angle within this range.
3, Super light weight, only 8.2kg per square meter, easy to install with magnetic module
4, High contrast ratio 4,000:1, beautiful natural picture.
5, You can adjust the resolution by changing modules directly, no need to do other things, that can save your cost.
Flexible Led Display Screen Advantages:
1, First-class LED chip, high quality led panel.
2, Ghosting free.
3, High fresh rate up to 2,000Hz.
Flexible Led Display Screen Specification
| Physical Pitch | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 160,000 pixels/Sqm | 111,111 pixels/Sqm | 62,500 pixels/Sqm |
| Module Dimensions(W x H) (mm) | 240 x 120 | 240 x 120 | 240 x 120 |
| Panel Dimensions (mm) | Custmized | Custmized | Custmized |
| Physical Resolution of Module (W x H) | 96 x 48 | 80 x 40 | 60 x 30 |
| Weight | 8.2 kg/Sqm | 8.2 kg/Sqm | 8.2 kg/Sqm |
| Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 9W | 10W | 10W |
| Max Power Consumption | 12W | 13W | 13W |
| Brightness | >1,000nits | >1,000nits | >1,500nits |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Driving Method | 1/40 | 1/40 | 1/8 |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 40 | IP 40 | IP 40 |
| Operating Temp/Humidity | -20ºC - 60ºC / 10ºC - 90ºC | -20ºC - 60ºC / 10ºC - 90ºC | -20ºC - 60ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -40ºC - 80ºC / 10ºC - 90ºC | -40ºC - 80ºC / 10ºC - 90ºC | -40ºC - 80ºC / 10ºC - 90º |

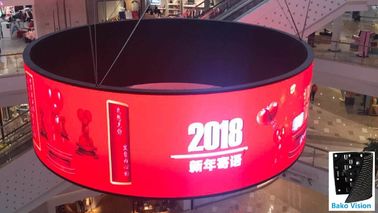

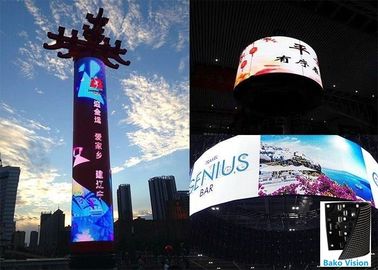

Flexible Led Display Screen Case (Click image and link to video)
Flexible Led Video Display FAQ
Q1. Are you trading company or manufacturer?
A: We are a professional led screen manufacturer located in Shenzhen since 2005.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Do you provide samples ? is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4. How about your delivery time?
A: Generally, sample needs 7-10 days, mass production time needs 2-3 weeks for order quantity more than.
Q5. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q6. Do you offer guarantee for the products?
A: Yes, we offer 2 years free warranty to our products.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Why choose us?
1. Superior quality
We are the professional manufacturer of led display. All of our products are guaranteed quality. All our products are made of branded wicks and have undergone strict quality testing. We hope we can establish long-term business relations with our customers.
2. Attractive design
Our company are equipped with professional R&D department. We can provide customized design for our customers. We will also offer a most reasonable and scientific solution for our customers.
3. Professional consulting services
Our company has technical personnel who are specially responsible for customer service, who will provide product maintenance, product use and technical consultation for you at any time.
4. Perfect after-sales services
