High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen

High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen
High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen

Large Image :  High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen

Product Details:

Place of Origin: China
Brand Name: Bako Vision
Certification: CE,CCC,ETL,FCC
Model Number: BOF

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Plywooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000 sqms/month
Detailed Product Description
Panel Material: Steel/Aluminum Brightness: >6,500 Nits
Servicing: Front/Rear IP Rating(Front/Rear): IP65/IP54
Refresh Rate: >1,920 Hz Processing: 16 Bit
High Light:

roadside led display

,

street led screen

High Brightness Full Color LED Video Wall Outdoor Fixed LED Display Screen



Quick detail



Conventional DOOH Display

Stable and Durable

Mechanical Front Access

Concave,Convex with Any Angle



Description

The physical pitch vary from 4.81-10mm.Cabinet material adopt steel but can accept the aluminum customized,it will be lighter 20kg than steel panel .

Front access,the front maintenance can be split two type,first one is directly drop out the module from the front side,the second one is belong to front open panel,it means just open the screen cover for service,but the front open panel can only splice left and right.

Inside of module have buckle design for adjusting gaps between module and cabinet,to ensure the connection become tighter and seamless.For the bof series we use steel cabinet so the dimension customized is acceptable,also can do the concave and convex with any angle.



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 0
Robust,stable and long lifespan.For the longer lifespan and better visual effective on the bases of original,we added a lighter sensor on the led display,it can adjust the brightness according to day and night. Extremly guaranteed the life of display,reduced the human cost and power saved at the same time.

Not require high refresh,meanwhile the air plug can also take out,it ,means our power cable and signal cable can just insert from the hole of beside,this kind of design also saved cost for customers.

About control system,we classified synchronous control and asynchronous control.Currently our asynchronous control can make use of USB,RJ45,WIFI and 4G to transmitted





Specification



  BOF-4 BOF-6 BOF-8 BOF-10
Physical Pitch 4.81mm 6.67mm 8mm 10mm
Pixel Configutation SMD2727 SMD2727 SMD3535 SMD3535
Pixel Density 43,264pixels/sqm 22,500pixels/sqm 15,625pixels/sqm 10,000 pixels/sqm
Module Dimention(W*H)(mm) 250*250 320*320 256*256 320*320
Panel Dimention(mm) 1000*1000*150 1280*960*150 1280*768*150 1280*960*150
Physical Resolution of Module(W*H) 52*52 48*48 32*32 32*32
Physical Resolution of Panel(W*H) 208*208 192*144 160*96 128*96
Panel Material Steel/Aluminum Steel/Aluminum Steel/Aluminum Steel/Aluminum
Weight(kg/㎡) 65/45 65/45 65/45 65/45
Processing 16bit 16bit 16bit 16bit
Contrast Ratio 2000:1 2000:1 2000:1 2000:1
Average Power Consumption 360W/panel 360W/panel 360W/panel 360W/panel
Max Power Consumption 900W/panel 900W/panel 900W/panel 900W/panel
Brightness >6,500nits >6,500nits >6,500nits >6,500nits
Refresh Rate >1,920Hz >1,920Hz >1,920Hz >1,920Hz
Vertical Viewing Angle 160° 160° 160° 160°
Horizontal Viewing Angle 140° 140° 140° 140°
Servicing Front/Rear Front/Rear Front/Rear Front/Rear
IP Rating(Front/Rear) IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54

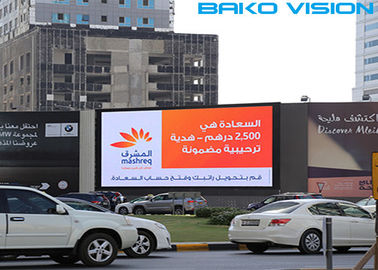

Application


Stock exchange centers, customs, stadiums, studio, shopping malls, railways, airports, harbors,high way, commercial advertising, Stadium perimeter, mobile media, bus station,
schools,telecommunications,entertainment events, business establishments, such as banks, etc;



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 1



Features



√  SMD 3 IN 1 led encapsulation technology ensure wide view angle and good uniformity.

√  Slim and small cabinet iron and aluminium.

√  Flight or plywooden case package,convenient to transport and collect,easy to move and good protection.

√  Fixed installation and Rental design, easy to install and dismantle,save much time for installation and maintainance.

√  Fixed installation, Seamless spliced,good outlooking

√  Good heat dissipation

√  Widely used in public advertising, theatre, live show, live meeting, banquet, stage background etc.



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 2





Our Advantages



Rich experience: established in 2005; familiar with technical and material about LED display.



Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.


Powerful R&D ability: excellent engineers are constantly developing new products and improving them.


Good quality:All products have passed CE, ROHS, FCC certification.



Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.


We guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.

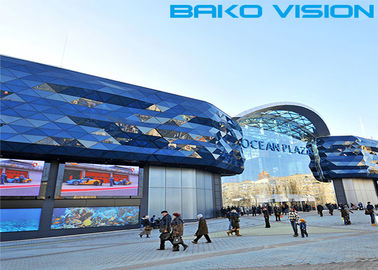

Case



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 3







Service

1. Provides all LED display relative solution, like installation drawing etc.
2. Have free training about how to use and maintain LED display with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any inquiry.
6. All other service request will be considered in BST , please contact us anytime.



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 4





Packaging and Shipping



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 5



About Us



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 6



High Brightness Full Color LED Video Wall P10 Outdoor Advertising Fixed LED Display Screen 7


Shenzhen BAKO VISION Technology Co., Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.

BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.

BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.


BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
