Product Details:
Payment & Shipping Terms:
|
| LED Lamp: | Kinglight | Moduel Size: | 150mm X 337.5mm |
|---|---|---|---|
| Cabinet Size: | 600mm X 337.5mm | Refresh Rate: | 2880 Hz |
| Cabinet Weight: | 6kg | Cabinet Thick: | 60mm |
| High Light: | stage led video wall,led video wall display |
||
1920~3840Hz Indoor Advertising LED Display Slim and Lightweight LED Video Wall
Features:
1. Multi-screen splitting for displaying multiple messages and great videoconferencing
2. 16:9 aspect ratio,Stunning life-like image quality with 4K UHD resolution
3. lightweight die cast aluminum frames for strength
4. High gray scale, even at low brightness levels
5. Broadcast ready with high refresh rates
6. Fast lock system and magnetic modules for convenient installation and maintenance
Parameters:
| Pixel Pitch | 1.25mm | 1.56mm | 1.87mm | 2.34mm |
| LED Type | Black SMD1010 | |||
| Pixel Density | 648,000pixels/m² | 414,720pixels/m² | 288,000pixels/m² | 184,320pixels/m² |
| Brightness | 600 ~ 800 cds/m² | |||
| Moduel Size | 150 x 337.5mm | |||
| Moduel Resolution | 120 x 135 | 96 x 108 | 80 x 90 | 64 x 72 |
| Cabinet Size | 600 x 337.5mm | |||
| Cabinet Weight | 6 kg | |||
| Viewing Angle | H 160° / V 140° | |||
| Refresh Rate | 1920~3840 Hz | |||
| Average Power Consumption | 300 W/sqm | |||
| Max Power Consumption | 600 W/sqm | |||
| IP rating(Front/Rear) | IP40 / IP 21 | |||
| Certification |
CCC,CE,FCC,ETL |
|||

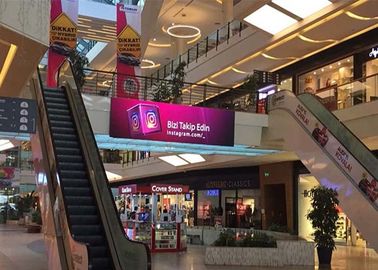

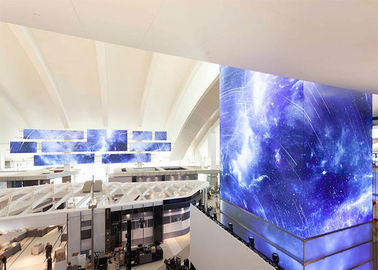

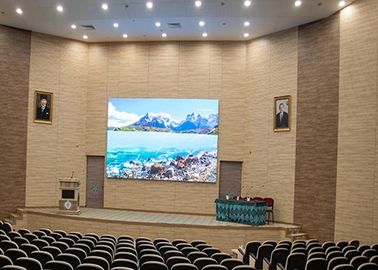

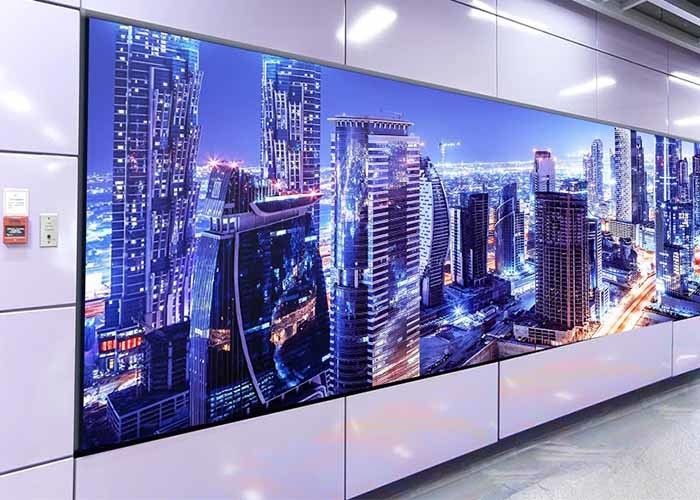

Cases for your reference:
FAQ:
1. How to choose a proper led screen?
Then you need to clarify below:
A: It's for indoor or outdoor?For fixed or rental?
B: Where will you install this screen?
C: What is the distance between audients and screen?
2. Which control system should I choose?
There is both synchronous and asynchronous control system on the market of LED Display. For the big size led screen(usually more than 20sqm),it is suitable to use synchronous control system. For those displays which below
20sqm.It's up to you to use synchronous and asynchronous.
But the refresh rate of asynchronous control system is much lower than synchronous control system.
3.How about your package?
We usually pack in wooden boxes or flight case.It decide on your size and your needs.We respect your choice.
