| Processing: | 16 Bit | Operating Temp/ Humidity: | -30ºC-60ºC/10%-90% |
|---|---|---|---|
| Viewing Angle: | V:60 Degree / H: 120 Degree | Weight: | 8.5 Kg/ M² |
| Transparency: | 20%-80% | Brightness: | > 4,000 Nits |
| IP Rating(Front/ Rear): | IP67 | Refresh Rate: | >1,920 Hz |
| High Light: | clear led screen,transparent glass led display |
||
High Transmitting Light Weight Digital Window Curtain LED Display for Advertising Wall
High Transmitting Window Led Display
Bako Vision Outdoor Curtain Window LED Display, Designed with an aluminum profile, the three light bars form a unit.Transparent Rate>45%,similar product of other company transparent rate is ≤30%,Traditional outdoor cabinet=No transparent(need air conditioner in a sealed room).Vantilated and transparent, air convection design, heat dissipation quickly.
Features of High Transmitting LED Display
1. High contrast and brightness
Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs.
2. Stability long life time
Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
Aluminum cabinet with light weight and lasting,anticorrosion,anti-rust.
3. High Transparency and High Brightness
20-80% transparency rate, see through, suitable for glass wall mounting
>6500 nits brightness, for all outdoor environment
Vivid colors
4. Natural cooling , fanless design, IP67 Waterproof for whole screen, addapt the various weather conditions.
5. High-precision die casting aluminum material cabinet, special design on cabinet bottom ensures flatness of whole screen even the platform is not flat. Also can protect modules in screen bottom. Front and back maintenance design by module magnet assembly.
High Transmitting Specifications
| BOC-31.25 | |
| Physical Pitch | 31.25mm |
| Pixel Configuration | 1R1G1B |
| Pixel Density | 1024 pixels/m² |
| Unit Size (W*H)(mm) | >1500*250 |
| Panel Resolution of Unit (H*V)) | 48*8 |
| Weight(kg/m²) | 15 kg/m² |
| Colors | 281 trillion |
| Processing | 16 bit |
| Panel Material | Aluminum |
| Contrast Ratio | 2000:1 |
| IP Rating | IP67 |
| Viewing Angle | H:120°,V:60° |
| Expected Lifetime | 100,000Hrs |
| Operating Temp/Humidity |
-30ºC-60ºC/ 10%-90% |
| Storage Temp/Humidity |
-40ºC-85ºC/ 10%-95% |
| Servicing | Front/Rear |
| Refresh Rate | >3840 Hz |
| Avg/Max. Power Consumption | 85/ 255W/m² |
| Brightness | >4,000 nits |
High Transmitting LED Products Details
High Transparency, High Brightness, Outdoor Curtain LED Display
Ultra lightweight and slim
High brightness for outdoor fixed installation
High transparency
Exceptionally Lightweight and Slim
10-18 kg/m² gross weight
Easy to install and save installation space
Fast Installation and Easy Maintenance
Both front and rear accessible for maintenance
Steel frame is canceled during installation
Fanless design, The middle grille has good permeability, mainly in outdoor buildings, with strong wind and pressure resistance.

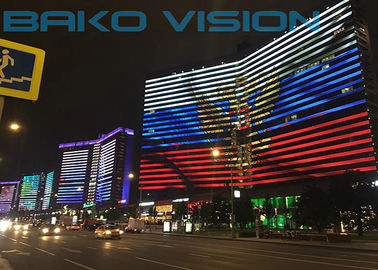

Curtain LED Display Application
Widely used for shopping malls, entertainment venues, building construction, government agencies, trade fair, fair, aiming at the exhibition, press conference, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Packing (Wooden Case / Flight Case)
Bako vision Advantage
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
