Product Details:
Payment & Shipping Terms:
|
| Physical Pitch: | 1.9mm,2.5mm | Panel Material: | Aluminum |
|---|---|---|---|
| Refresh Rate: | ≥2880 Hz | Servicing: | Front |
| IP Rating: | IP40 | Frame Rate: | 60 Fps |
| High Light: | led poster screen,mirror led display |
||

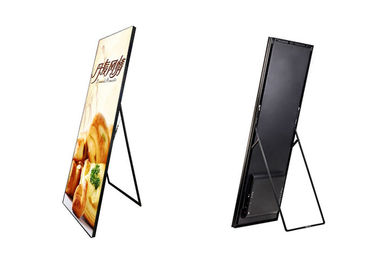

Indoor LED Display standing controlled by Nova Ultra Slim and Lightweight High Refresh Rate in Store
BP Series
Slim,Form Changeable
Digital Ads Display
Specification
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5 mm |
| Pixel Configuration | SMD 1010 | SMD 2020 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² |
| Module Dimensions (W × H)(mm) | 280 × 210 | 280 × 210 |
| Panel Dimensions (mm) | 1902 × 572 × 35 | 1902 × 572 × 35 |
| NO .of Modules Per Panel (W × H) | 2 × 9 | 2 × 9 |
| Physical Resolution of Module (W × H) | 144 × 108 | 112 × 84 |
| Physical Resolution of Panel (W × H) | 972 × 288 | 756 × 224 |
| Panel Material | Aluminum | Aluminum |
| Single Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 250 W/ Set | 200 W/ Set |
| Max Power Consumption | 750 W / Set | 600 W / Set |
| Driving Method | 1/27 Dynamic Scan | 1/28 Dynamic Scan |
| Operating Temp/Humidity | -10° - 60°C / 10% - 60% | -10° - 60°C / 10% - 60% |
| Storage Temp/Humidity | -30° - 60°C / 10% - 60% | -30° - 60°C / 10% - 60% |
| Brightness | 1,000 nits | 1,200-1,500 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz |
| Vertical Viewing angle | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° |
| IP Rating (Front/Rear) | IP40 | IP40 |
| Frame Rate | 60 fps | 60 fps |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
