Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Panel Material: | Steel/Aluminum |
|---|---|---|---|
| Processing: | 16 Bit | Refresh Rate: | >1920 Hz |
| Brightness: | >5000 Nits | Servicing: | Front/Rear |
| Colors: | 281 Trillion | Contrast Ratio: | 2000:1 |
| High Light: | roadside led display,street led screen |
||

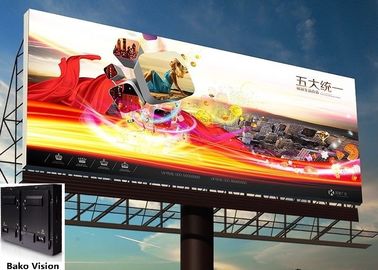

IP67 Outdoor LED Display Screen Waterproof High Brightness High Refresh Rate Billboard for Advertising
BOF Series
SMD P8 Outdoor LED Display
1. Brightness: ≥6500cd/m2
2. Average power consumption: ≤360 W/m2
3. Manufacturer: over 15 years
4. Quick response: replying inquiry within 24hrs
5. Quality guarantee: CE, RoHS, FCC, IP65, ISO9001 + 100% testing before shipping.
Specification
| BOF-4 | BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 4.81 mm | 6.67 mm | 8 mm | 10 mm |
| Pixel Configuration | SMD 2727 | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 43,264 pixels/m² |
28,224 pixels/m² |
15,625 pixels/m² |
10,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 250 × 250 | 320 × 320 | 256 × 256 | 320 × 160 |
| Panel Dimensions (mm) | 1000 × 1000 × 187 | 1280 × 960 × 187 | 1280 × 960 × 187 | 1280 × 960 × 187 |
| NO .of Modules Per Panel (W × H) | 4 × 4 | 4 × 3 | 5 × 3 | 3× 6 |
| Physical Resolution of Module (W × H) | 52 × 52 | 48 × 48 | 32 × 32 | 32 × 16 |
| Physical Resolution of Panel (W × H) | 208 × 208 | 192 × 144 | 160 × 96 | 96 × 96 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W/panel | 360 W/panel | 360 W/panel | 360 W/panel |
| Max Power Consumption | 900 W/panel | 900 W/panel | 900 W/panel | 900 W/panel |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 | IP 65/ IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
Multifunctional Module Buckle
Special multifunctional module buckle designed for adjusting gaps between module and cabinet to ensure the smoothness and alignment.

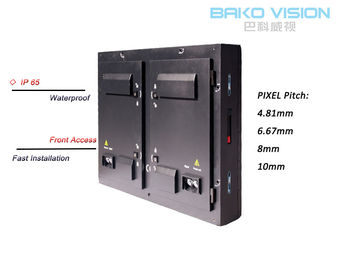

Fast Installation and Easy Maintenance
Fast lock system design guarantees a quick and easy installation
Frone access
IP65 Fully Adapt to Outdoor Environment
Operating Temperature -20°c- 60°c
Operating Humidity -10% - 90%
Intelligent Software System
Intelligent control and player system by cloud technology
Time management and real time monitoring
Why choose LED Display?
Our Service
1.Pre-sale service:
Reply enquiries in 24 hours.
Market research and forecast for customer.
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer.
Other services, such as special packing design, factory visiting and so on.
2.In-sale service:
Tracking report in producing.
Quality test report for every order.
Photos and videos as per customer's requirement.
Free spare parts.
3.After-sale service:
Lifetime free maintenance and upgrade.
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
Customer satisfaction tracking report.
Free technician training.
Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Special service for big project, such as stadium, exhibitions, squares and so on.
COMPANY INTRODUCTION
Shenzhen BAKO VISION Technology Co.,Ltd, started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, is SHENZHEN BAKO LTD holding end professional customers among domestic and overseas markets.
Do not be hesitate to contact us if you have any quiry!
FAQ
Q1. Do you provide samples?is it free or extra?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q2.How to order?
A:Please send us your purchase order by Email or we can make you proforma invoice under your request.
We need to know the following information for your order before sending you PI.
1)Product information-Quantity,Specification(Size,Material,Technological if needed and Packing requirements etc.
2)Delivery time required.
3)Shipping information-Company name,Street address,Phone&Fax number,Destination sea port.
4)Forwarder's contact details if there's any in China.
Q3. Do you offer guarantee for the products?
A: Yes,we offer 2-5 years warranty to our products.
