| Service: | Front | Brightness: | >1,000 Nits |
|---|---|---|---|
| Processing: | 16 Bit | Contrast Ratio: | 4000:1 |
| Driving Method: | 1/28 Dynamic Scan | Frame Rate: | 60 Fps |
| Colors: | 281 Trillion | Avarge Power Consumption: | 250 W/ Set |
| Single Cabinet Weight: | 32 Kg | Expected Life Time: | 100,000 Hrs |
| Driver IC: | MBI 5124 | Material: | Aluminum |
| High Light: | modular led display,shopping mall led display |
||

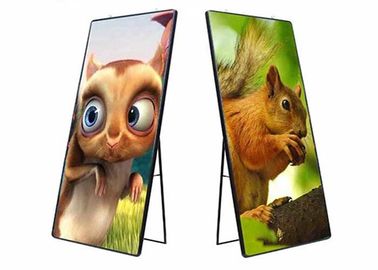

High Definition Lightweight Aluminum Front Service Indoor Video Poster LED Display
Poster LED Display Player Advantages / Description:
1. Vivid and colorful picture provide fantastic visual effect. Brightness increased 3 times compared with conventional LCD (400 nits). Easy Operation only needs 3 minutes, guaranteeing wonderful user experience.
2. Without any professional installation makes it much popular applied for super mall, show cases, window advertisements and other kind of small and quick broadcasting business both in indoor and semi-outdoor.
3.Poster LED Display is a specially designed product targeting for indoor HD LED advertising player with highly integrated hardware and outdoor led display player with high brightness and easy installation, ultra-thin and light body, which can be your first choice to achieve perfect led advertising display effect.
Products Feature
1,Ultra slim and light-weight body, easy to lift up
The tickness of Our this series poster screen only 35mm. While others 45mm.making installation easy and fast .
2, HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3,High Resolution and High Gray scale
Full color with high resolution ensure the smooth and excellent visual experience.
Specifications
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2020 |
| Pixel Density | 276,676 pixels/m² | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 | 2*9 |
| Panel Material | Aluminum | Aluminum |
| Colors | 281 trillion | 281 trillion |
| Sigle Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Refresh Rate | >=2800 Hz | >=2800 Hz |
| IP Rating | IP40 | IP40 |
| Viewing Angle | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 147*110 | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 301*1010 | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set | 250/750W/Set |
| Servicing | Front | Front |
| Driving Method | 1/28 Dynamic Scan | 1/28 Dynamic Scan |
| Frame Rate | 60 fps | 60 fps |
Products details
Product Traits:
Innovative style: Taking the butterfly shape on the back.
Flexible installation position: It can be installed on the wall or stand up.
Thin screen saves space and gets good visual effect.
Seamless connection between modules gets you a vivid and smooth video.
Poster LED Display is so far the thinnest and lightest led display products,With a thickness of 45mm and a lightweight body (only 32kg), led poster board makes an ideal solution for a wide array of installation requirement including fold-out stand, hanging and wall mounting.
Multi-application
Applied in shopping mall, meeting room, control center, airport, station, super market, canteen and restaurant. Can be used as → Advertising platform;
→ Urgent information, instant message release
→ Publicity platform, brand model window
→ Shopping guide information, supporting service information release
Multiple communication modes--communication via USB, WIFI, network cable and HDMI increase service efficiency.
Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
